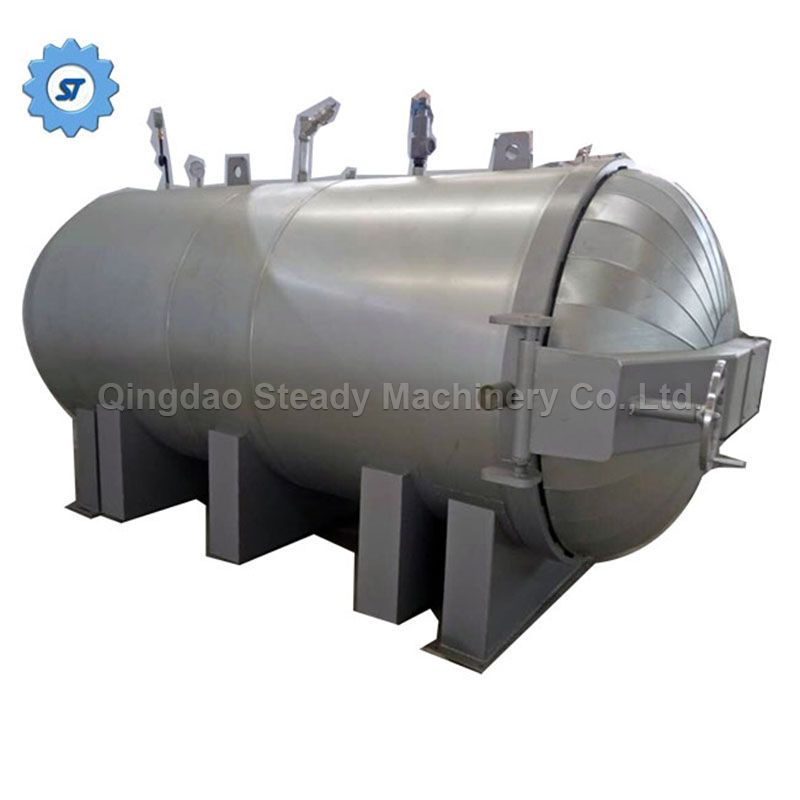

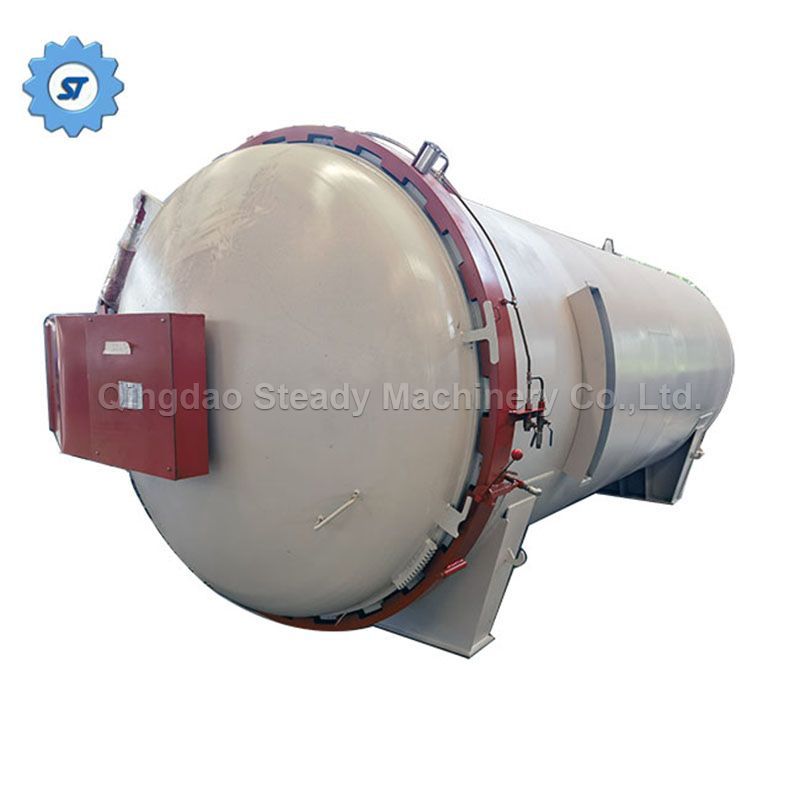

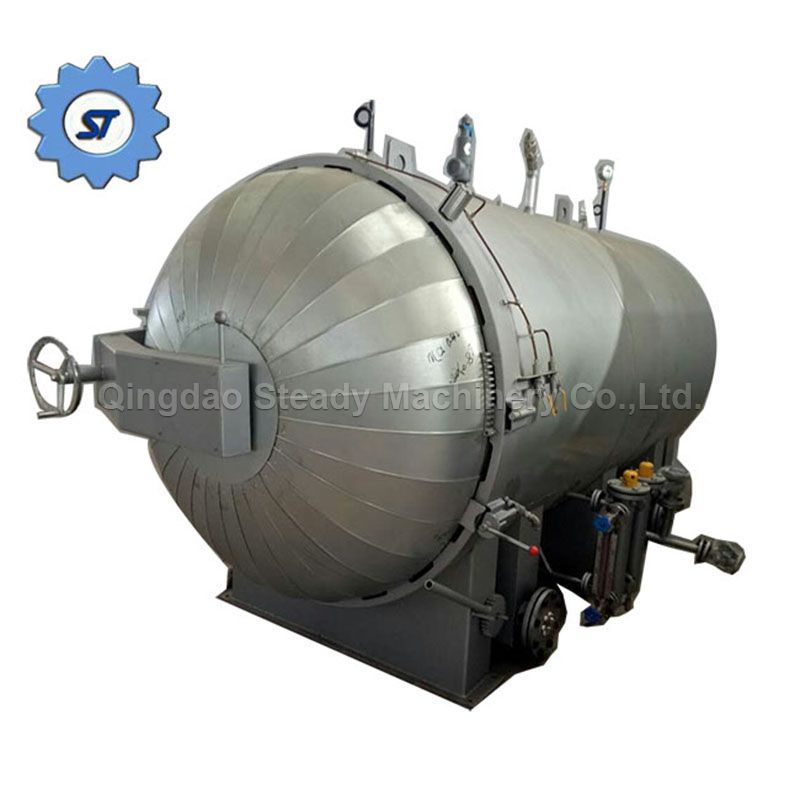

Steam Heating Rubber Rain Shoes Boot Water Stopper Vulcanization Autoclave is an essential equipment for vulcanizing rubber products, widely used in industries such as rubber, cables, printing and dyeing, chemical, building materials, etc. It is mainly used for vulcanization of tires, V-belts, synchronous belts, rubber pipes, irregular rubber pipes, sealing rings, cables, rubber shoes, rubber rollers, and other rubber products.
According to the structural form of the vulcanization tank, it can be divided into direct heating vulcanization tank and indirect heating vulcanization tank. Direct heating vulcanization tank can be divided into steam heating vulcanization tank, vertical vulcanization tank, electric steam vulcanization tank, etc
The design pressure of a horizontal vulcanization tank is generally 0.85Mpa, which belongs to the low-pressure category of containers and has a cylindrical structure. It is composed of a tank body, tank cover, switch, heating device, interlocking device, insulation layer, fan, temperature measurement device, etc.
The steam heating vulcanization tank introduces steam into the vulcanization tank to vulcanize the rubber products inside the tank. The advantages of direct vulcanization are high efficiency, easy temperature control, uniform temperature distribution everywhere, and high production efficiency.
Insulation layer of vulcanization tank: using aluminum silicate insulation rock wool, and using front and rear heads for insulation, the insulation effect is good.
Tank mouth sealing ring: Adopting a sealed rubber sealing ring, it has the effect of isolating the internal and external air, and has a long service life.

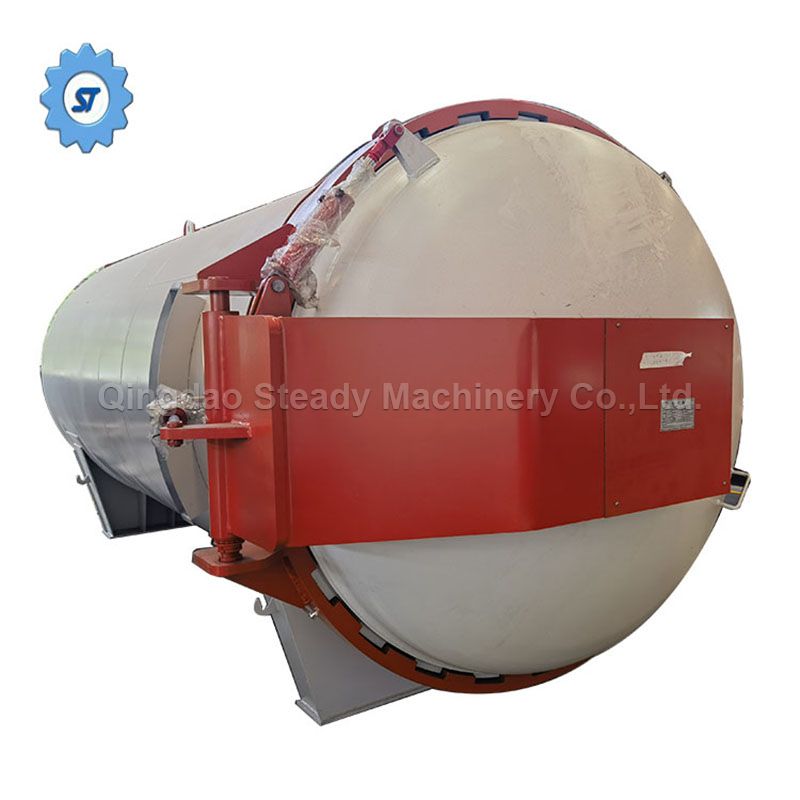

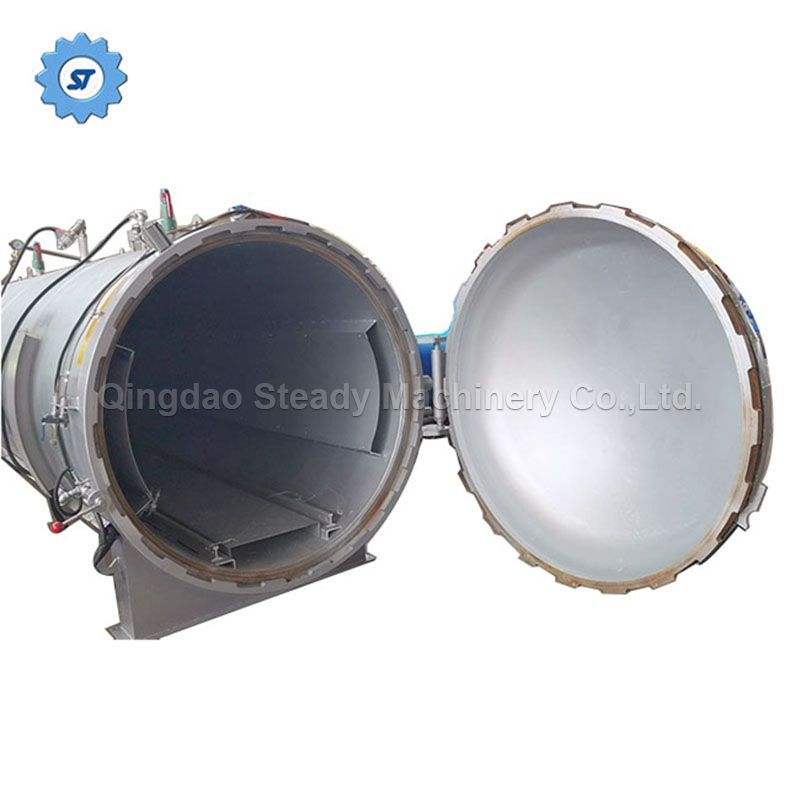

Tank mouth: There are two types of staggered tooth type can mouth structures: fixed toothed ring and rotating toothed ring. The fixed toothed ring can mouth is locked by the rotation of the can cover. The rotating toothed ring can mouth, the can cover cannot rotate, and it is locked by the rotation of the toothed ring. The toothed ring is composed of two semi-circular rings, which are connected together by bolts.
Air circulation device: The air circulation device inside the vulcanization tank can improve the heat exchange effect and also make the temperature of each part of the tank uniform, thereby improving product quality. The air circulation device is composed of a fan and an air duct.
We can make any size vulcanizing tank accoring to your work needs.
Please just contact us tell us your work needs and size requirement.
Often use models
If you have other size requirement, please feel free to contact us. We can tailor make any size according to clients' work needs.
