Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine

Share:

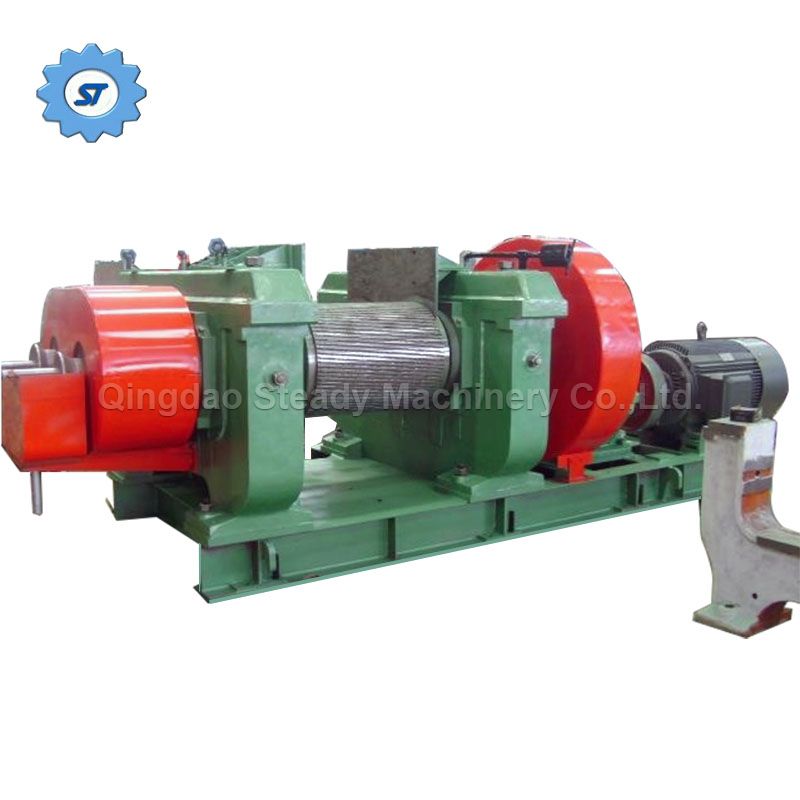

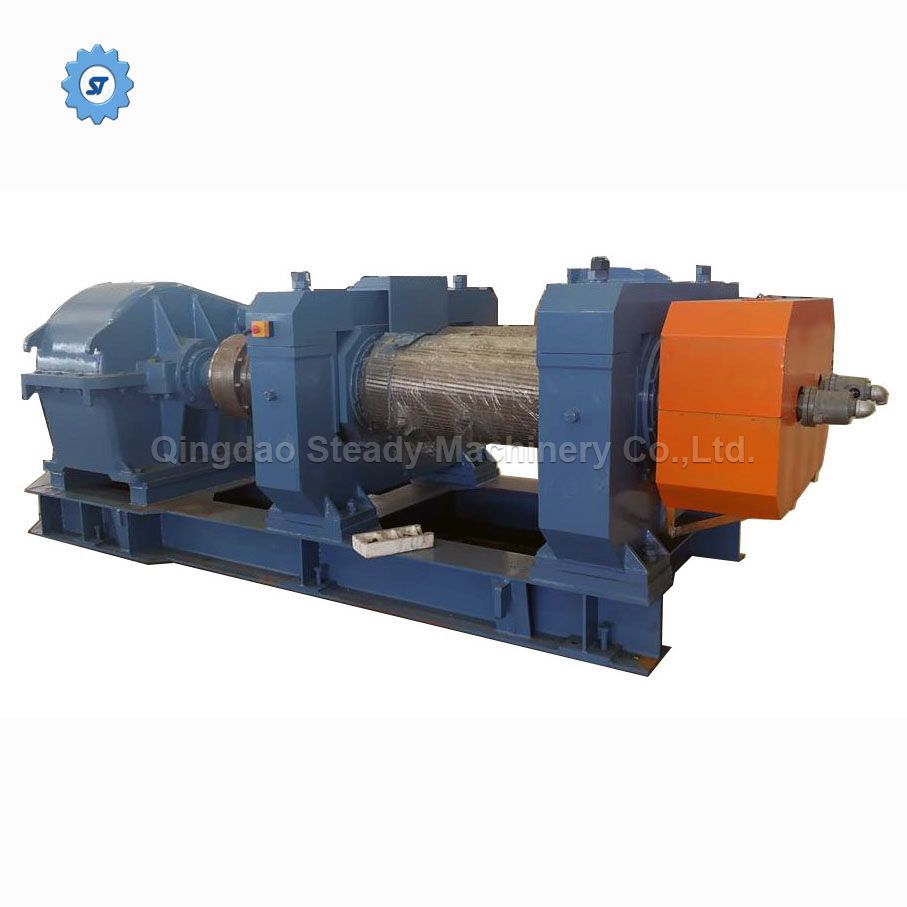

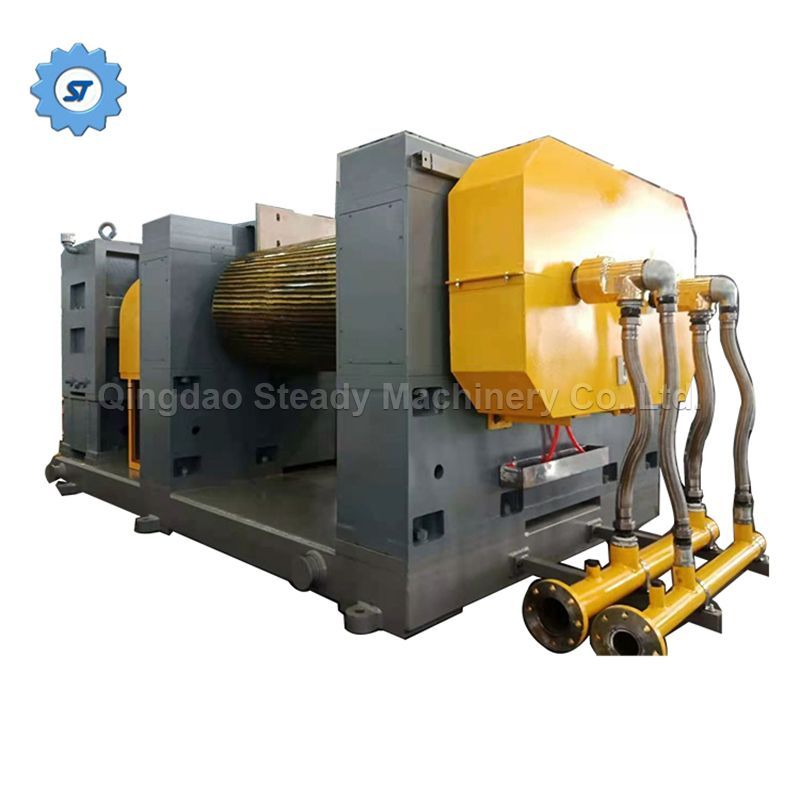

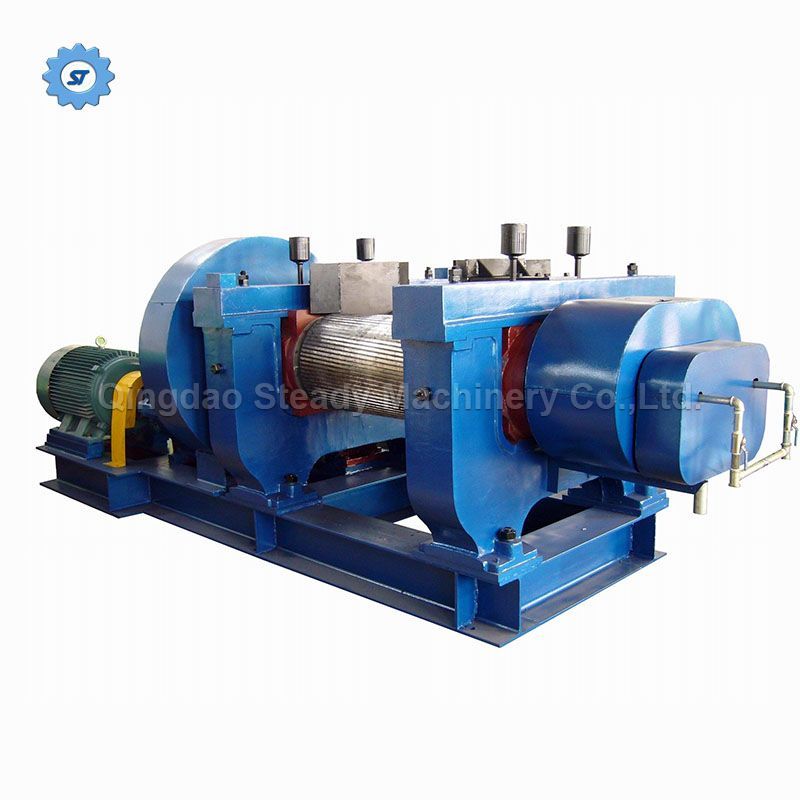

Structural characteristics of the rubber cracker/shredder/crusher/breaker: The rubber breaker roller is made of vanadium titanium alloy cold hard cast iron, with a hard and wear-resistant surface. The rear roller is a grooved roller, and the inner cavity is processed to ensure uniform temperature on the roller surface. The machine is equipped with an overload protection device to protect the main components from damage due to overload. The machine is equipped with emergency braking. In case of an emergency, pull the lever and the machine will immediately brake, ensuring safety and reliability. The transmission system adopts NGW hard tooth surface planetary reducer or herringbone tooth reducer, which has a compact structure, low noise, and high efficiency. The machine adopts an integral or split base for easy installation.

Our rubber cracker/crusher/shredder mill features:.

1. Base Seat: Adopts 250mm H shape steel welded together, Full  welding   at  all necessary  Joint  &   Grind properly . After welding adopts nominalizing treatment. So the whole machine structure is very strong and stable. Our rubber refining mill have strength  to withstand  vibration load  during  usage  of   refiner  [ 24hrs x 7  days x 52  weeks ].

2. Body Frame: Adopts integral casting, then smouldering fire treatment.

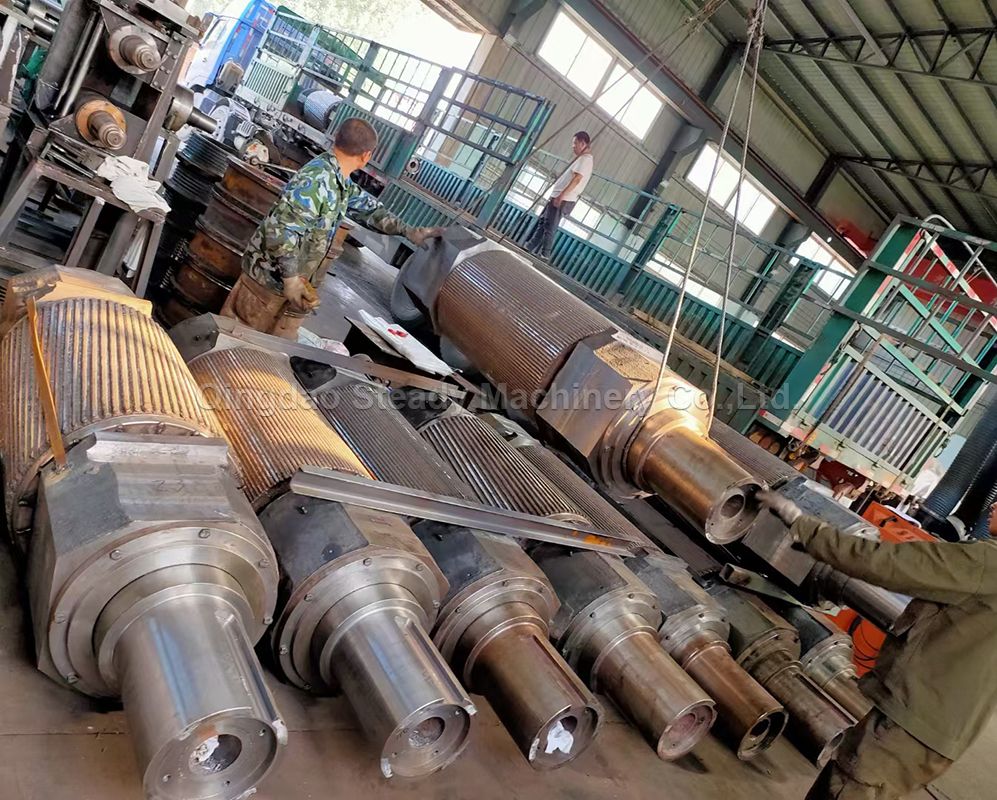

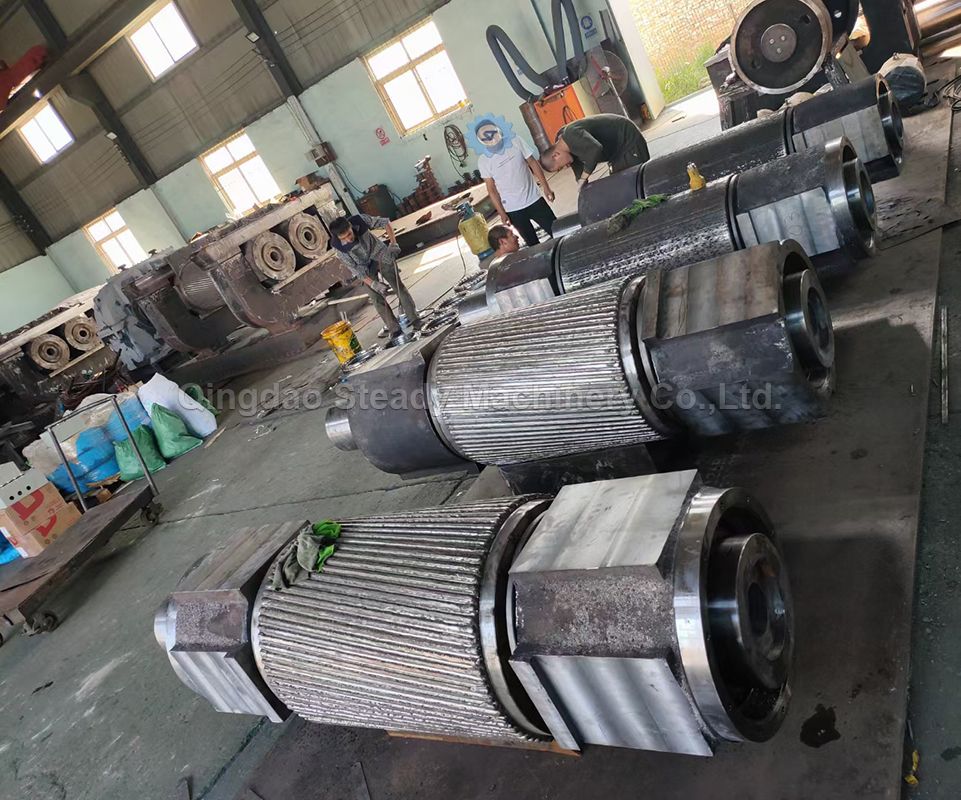

3. Rolls: The rollers are made of chilled cast iron with wear-resistant hard surface. The back roller are grooved. The bored rolls can be cooled homogeneously through inputting steam and cooling water. The two rollers rotate reversely with different speed, so that rubber material can be processed. The roller surface is plating with Chromium (the Cr coating thickness is 0.08-0.10mm), to enhance hardness and prolong service life.

4. The transmission system: Reducer adopts a hardened reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.

5. Bearing: Nylon bush bearing.

6. Lubrication: grease lubrication.

7. Nip Setting: adjust wheels with Vernier  Indexing  Plate.

8. Protection Pad: To protect the machine from damaged by over load.

9. Roller  Heating   &  Cooling :Universal  Rotary Joints  with  pipe and Headers.

10. Brake System: when push the emergency stop button, the machine will stop immediately,  meet international rules to protect operator's safety.

11. Electrical Control Panel: have  facility  for star  delta starting ; Lubrication  motor Interlocks ; Phase  Indications.

12. Motor: the motor adopts China famous brand-Shandong Kaiyuan Brand, motor wire is made of copper. It’s very durable and can longtime continuous running in scurviness condition.

13. Other: The machine equipped with rubber scrap  Guides & Tray.


Regular Models

ItemXKP400XKP450XKP560
Diameter of front roll(mm)400(Groove)450(Groove)560(Groove)
Diameter of back roll(mm)400450510
Working length(mm)600650800
Linear speed of front roll (m/min)18.6524.525.56
Ratio1:1.271:1.271:1.30
MAX gap(mm)151515
Motor power(KW)375590
Dimension (L*w*h)(mm)3850*1800*15504650*2000*15505070*2290*1980
Weight (kg)75001100019000
Capacity(10-40mesh)150kg/h300kg/h500kg/h
Output per day(12-20hours)2-3ton4-6ton6-10ton

Detail Images:

Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine

Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine

Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine

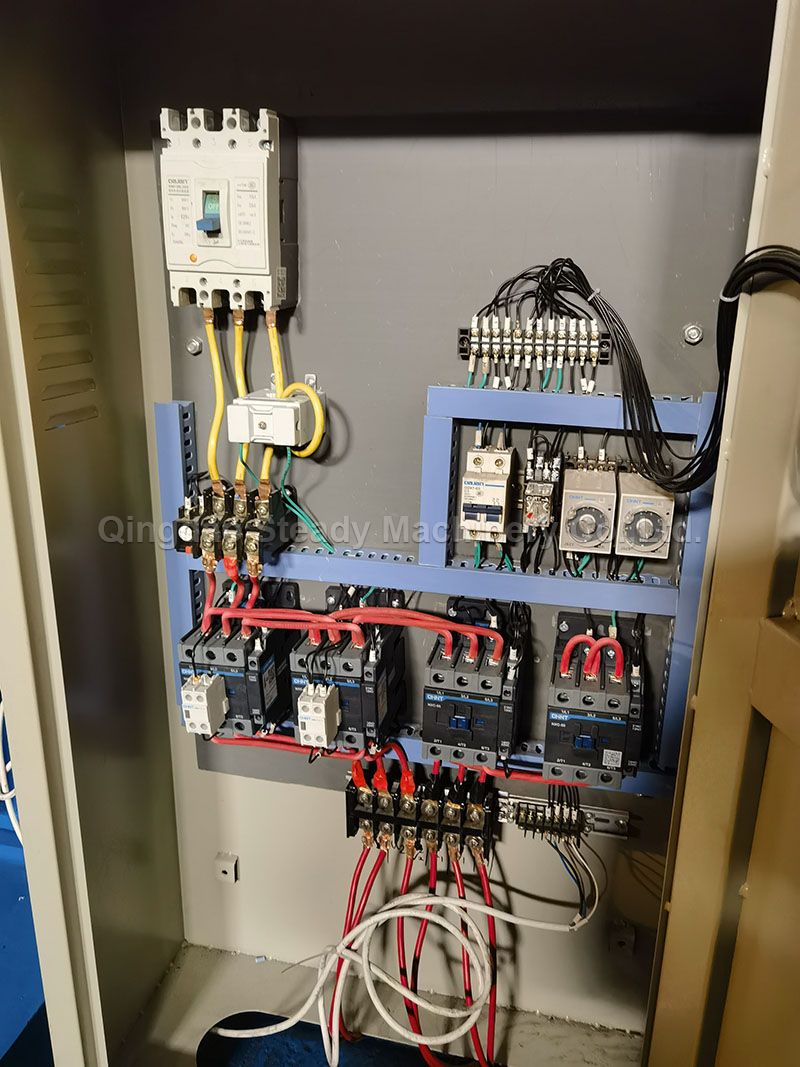

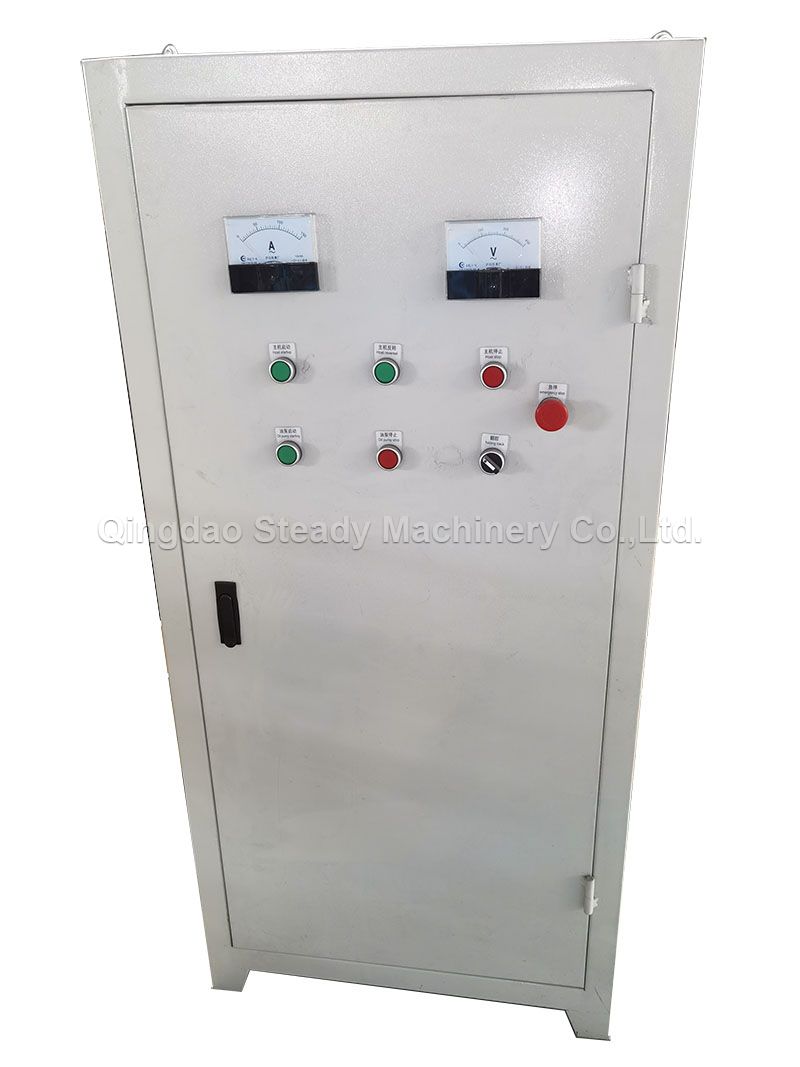

Electronics

We use famous brand electronics CHNT brand, works accurate and stable.

Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine

Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine



Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine

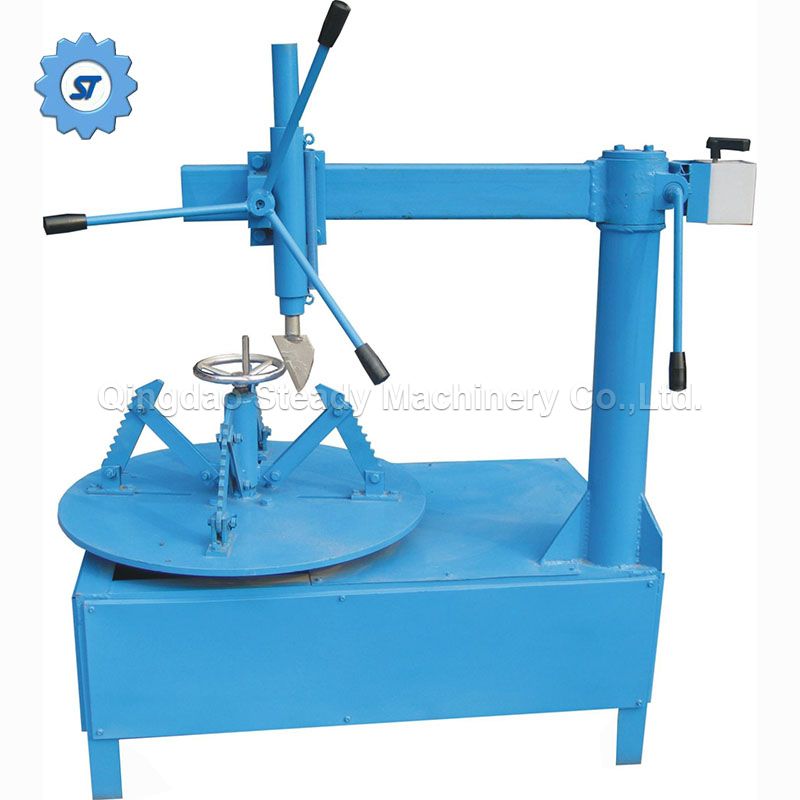

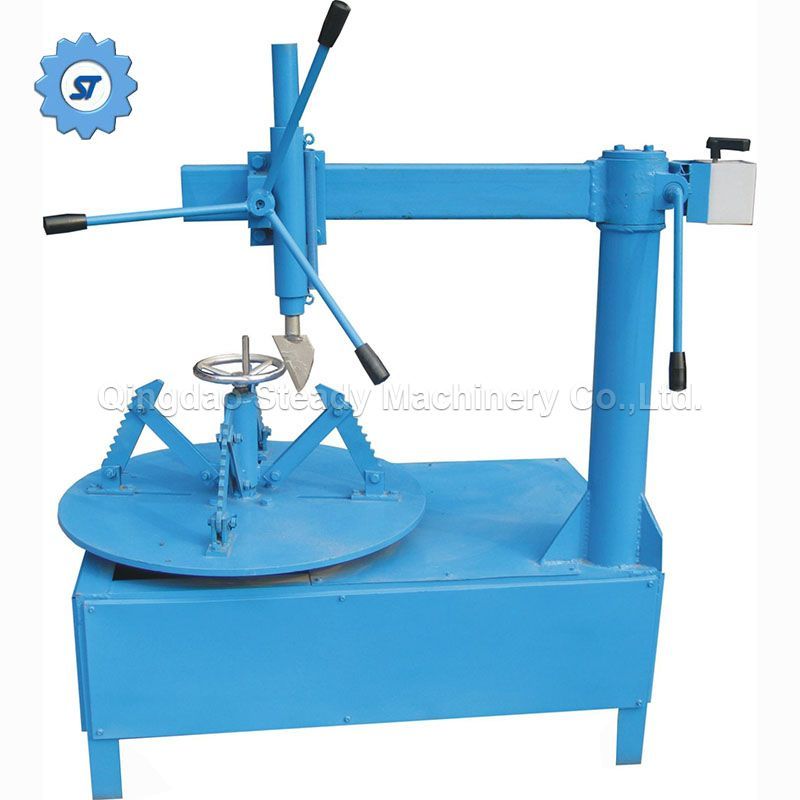

Waste Tyre Ring Cutter,Debeader


Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine

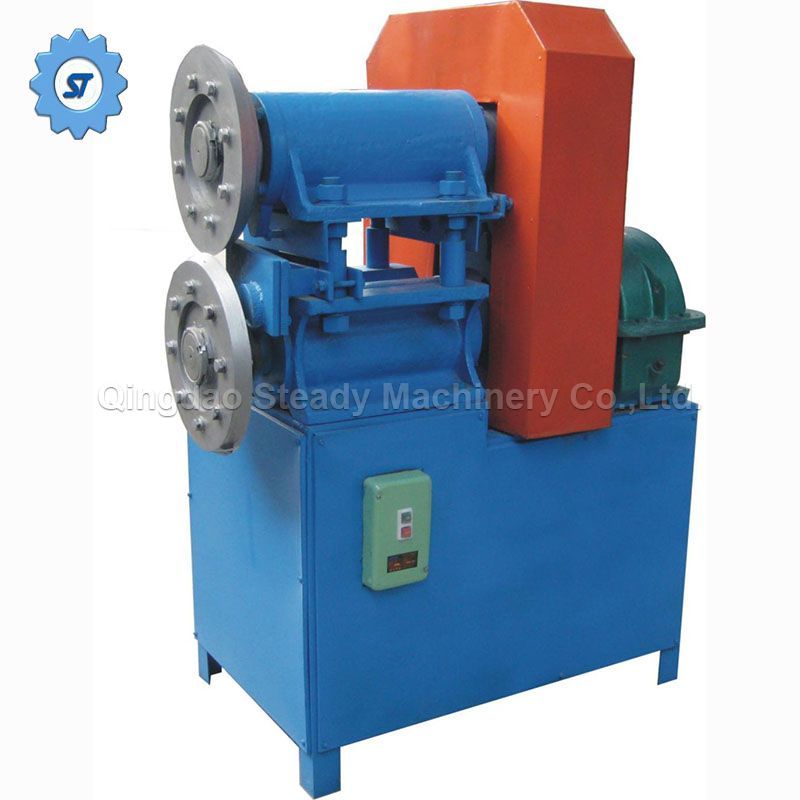

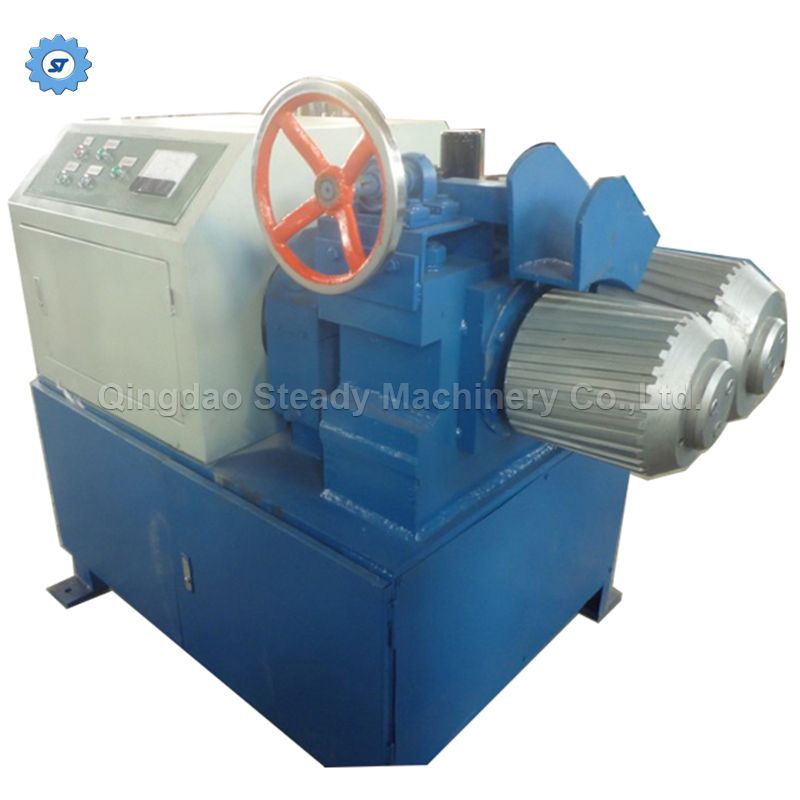

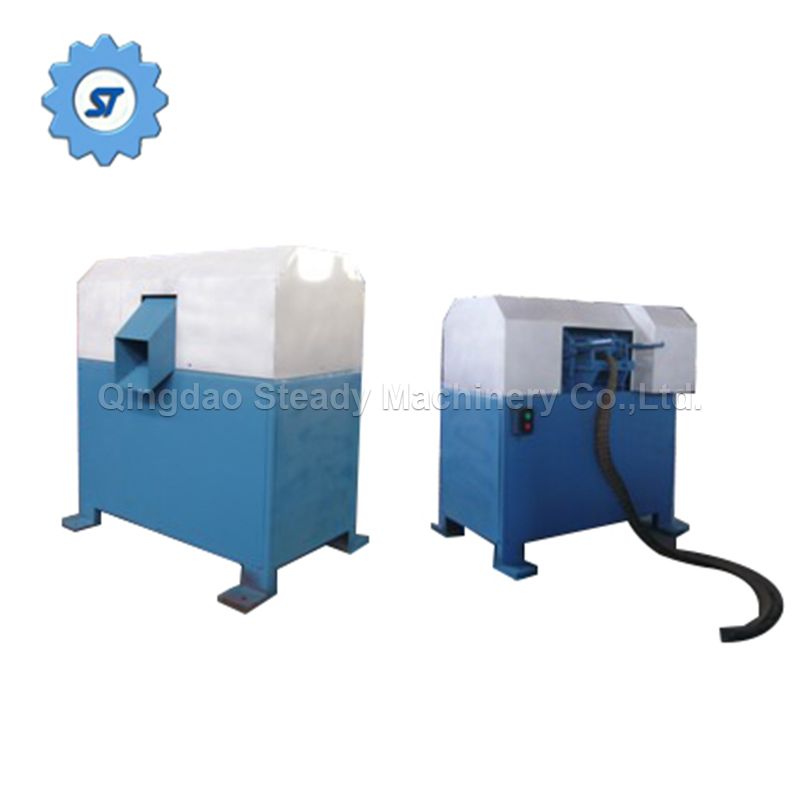

Strip Cutter

The machine is for cutting the rest of the tyre into strips.

Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine


Bead Wire Separator



Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine

Block Cutter

Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine







Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine

Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine

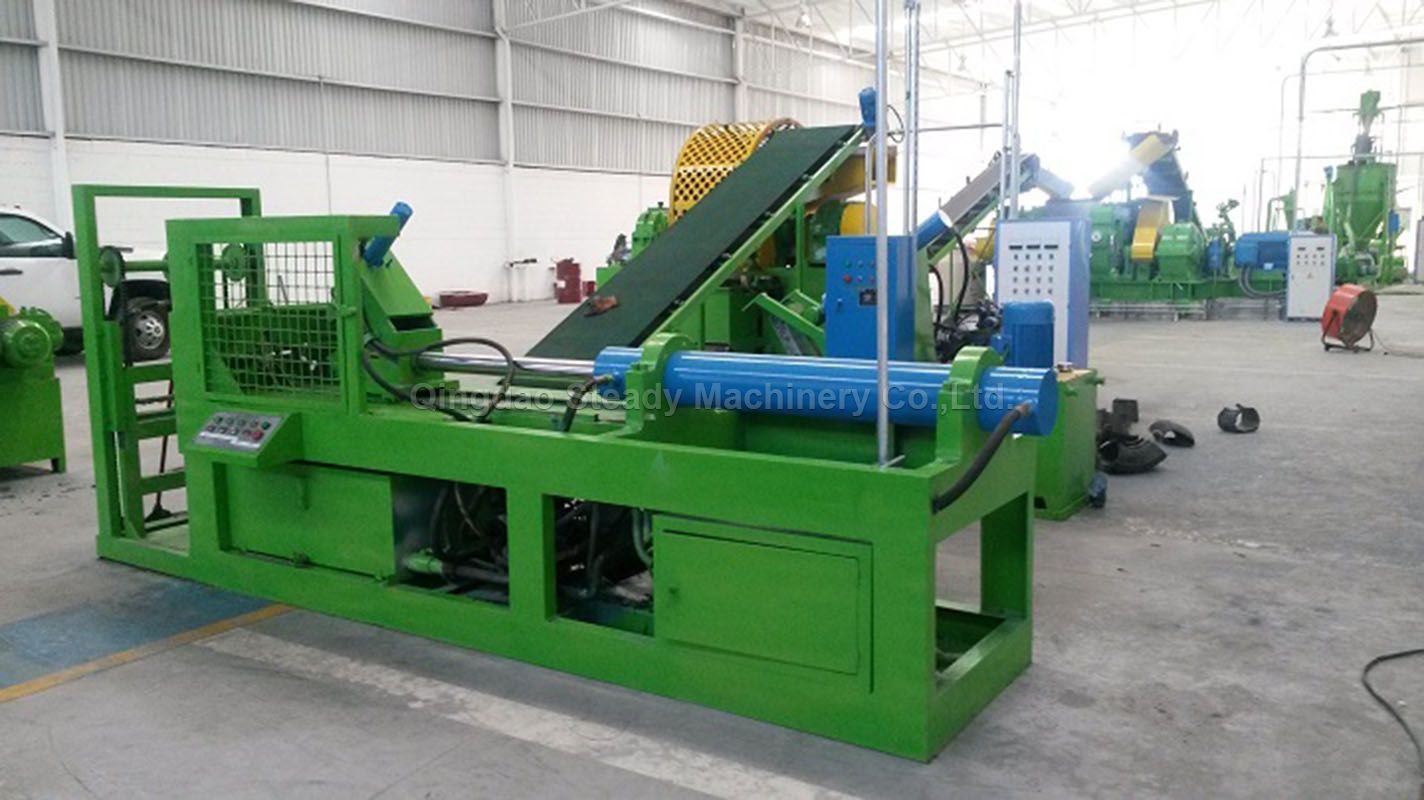

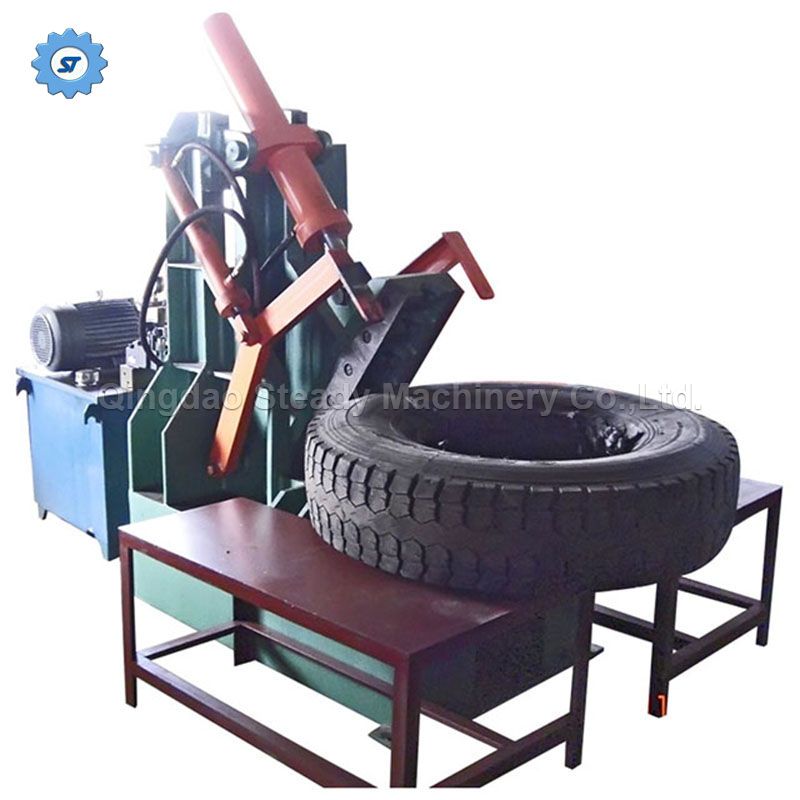

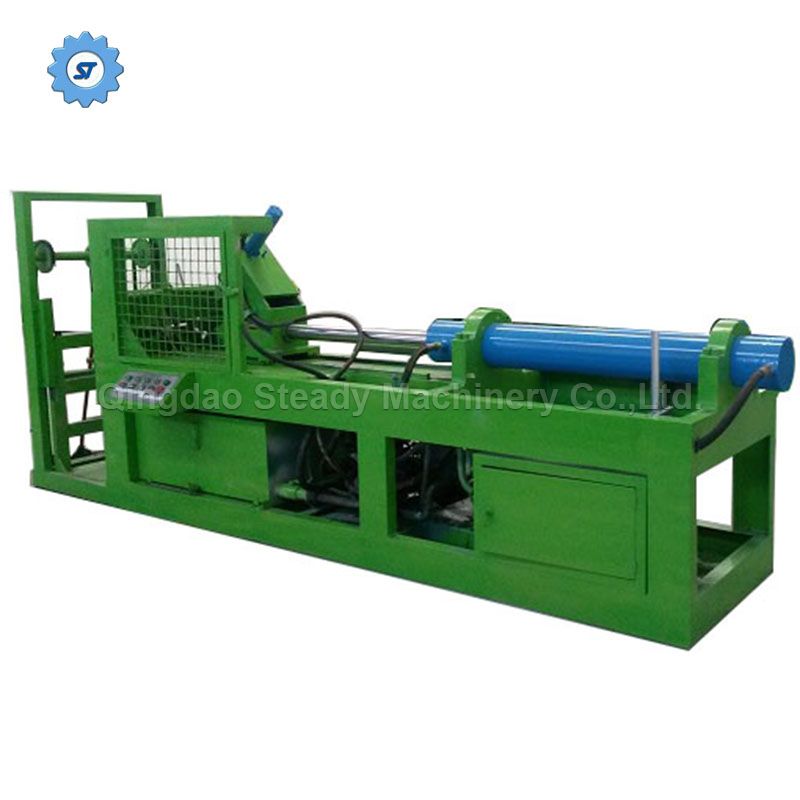

Steel Wire Extraction Machine,also called automatic waste tire recycling hook debeader to pull out tire wires

Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine

Tyre Cutter

Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine

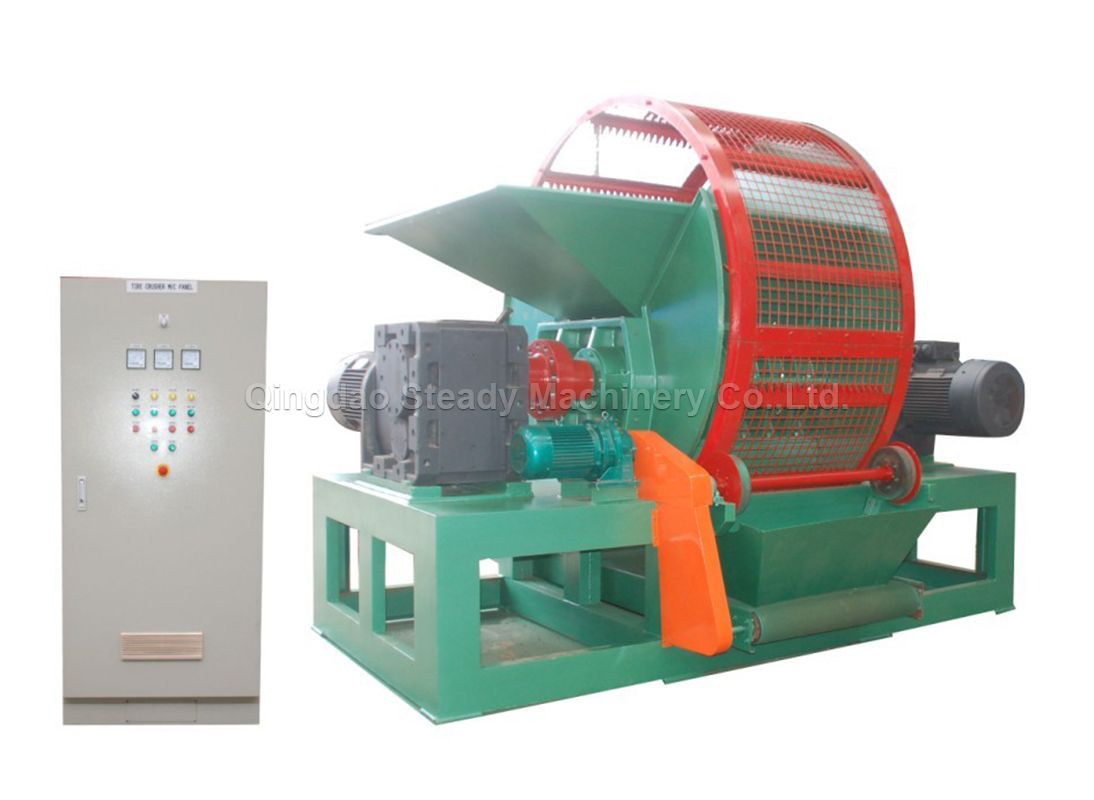

Wase Tyre Crusher

Waste Tyre Recycled Rubber Powder Cracker Shredder Crusher Making Production Line Mill Machine

Model zps-900zps-1200
Input sizeLess than 900Less than 1200
Discharge size50~300mm(adjustable)50~300mm(adjustable)
Motor power30*2kw 75*2kw
Dimension 3450*2100*2400mm4100*2730*3300mm
Amount of waste tire0.8~1.5T/h2~3.8/h
Screen power1.5KW5.5KW
Main shaft speed19rpm22rpm
Screen speed4rpm25rpm
Number of blades18pcs, made of alloy steel, welded25pcs, made of alloy steel, welded
Gearboxharden gears, large torqueharden gears, large torque
weight5.8T15.6T

Equipped with output conveyor, sharing motor with screen
