Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line

Share:

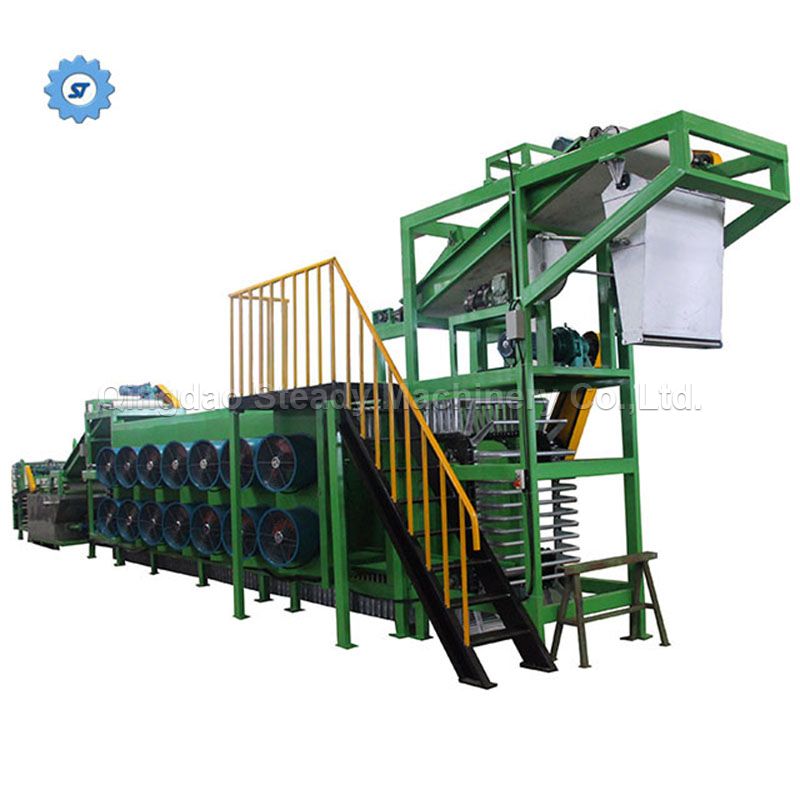

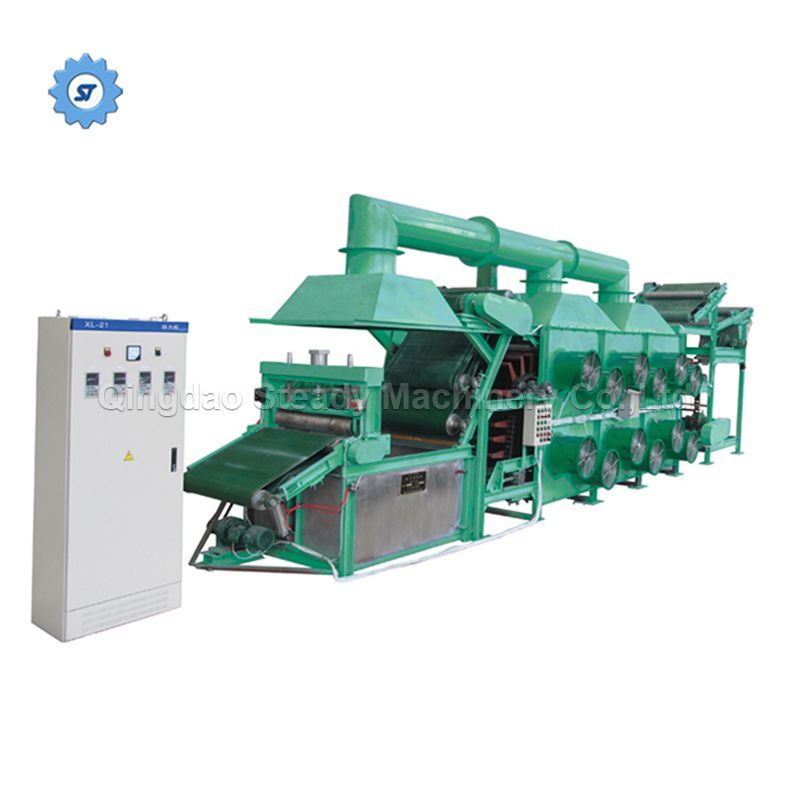

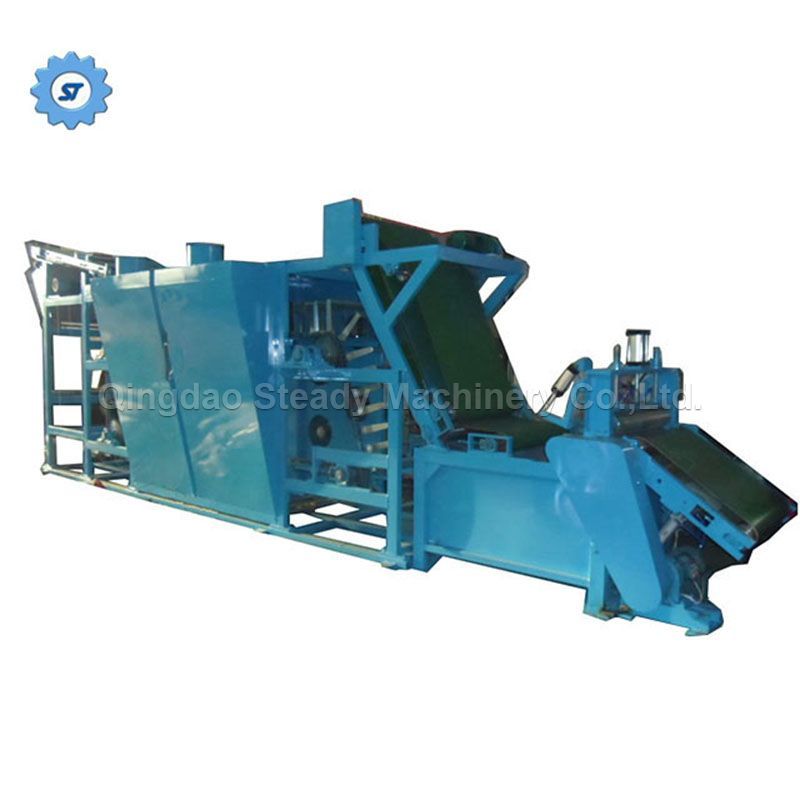

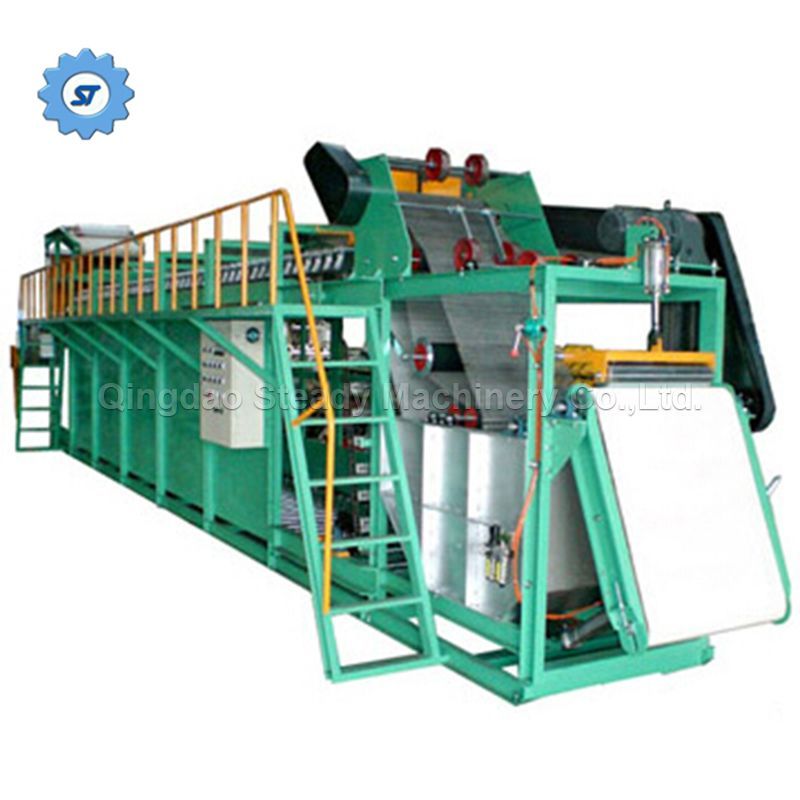

The floor standing rubber sheet cooling line is mainly used for cooling the rubber sheets after being pressed out by the rubber open mixing mill in the mixing workshop. The rubber material is pressed or extruded into sheets after mixing. This device can pick up, press joints, print, soak and cool the rubber separant with high temperatures, lift and hang them, cool them down with air cooling, automatically grab them, transport them back, stack them automatically, change the pick up table automatically, and transport them when the pick up device is full. Users can choose different configurations according to their actual situation.

The overall operation of the equipment is safe and reliable, and the design and manufacturing quality are at a leading level in China. All components are safe and reliable, and the reasonable design can ensure the requirements of industrial continuous production. The floor mounted rubber cooling structure is compact, highly automated, and energy-saving.


The rubber material is compressed into rubber sheets after plasticating or mixing. This device can longitudinally divide, apply isolation agents, cool, dry rubber sheets with higher temperatures, and then automatically fold them into stacks.

This machine adopts a floor structure, which has the characteristics of simple and reasonable structure, flexible operation, etc.

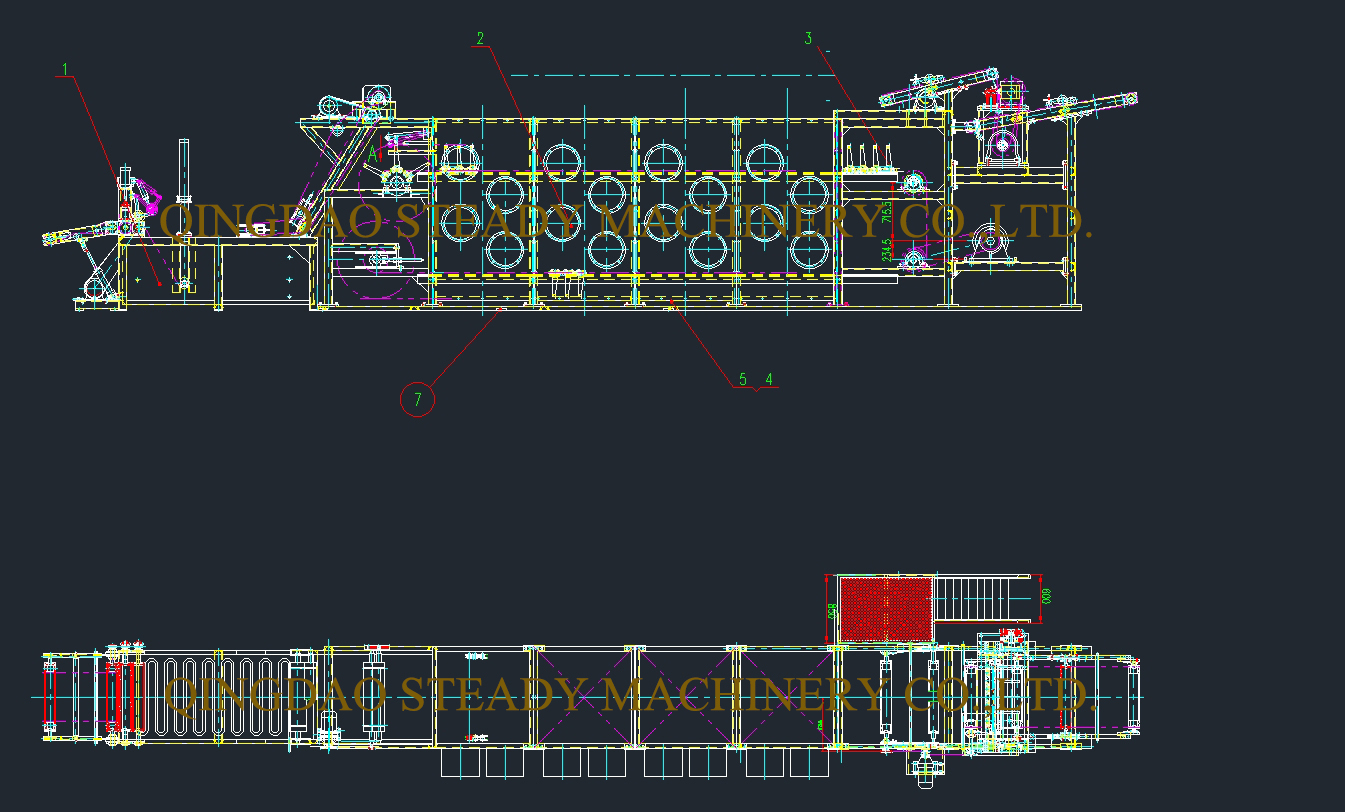

This machine is mainly composed of two parts: the main engine and the electrical control system. The main engine is further divided into a conveying device, a cooling device, a lifting device, a rubber sheets hanging device, an automatic rubber picking device, a rubber conveying device, a rubber swinging device, a ladder, a railing, a platform, and other parts. It is equipped with an air controlled longitudinal cutting device for longitudinal cutting of rubber strips. The rubber separating device is used for separating the longitudinal cut rubber strips. The electrical control system is composed of twp control cabinets, one main control box, one auxiliary control boxes, and emergency control devices are set up at key points. The main control box and auxiliary control boxes are controlled by each other, when the main control box executes equipment operation commands, the auxiliary control boxes must provide reset commands. Confirm before executing the run command. Otherwise, the device will not run. This is for safety purpose.

Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line

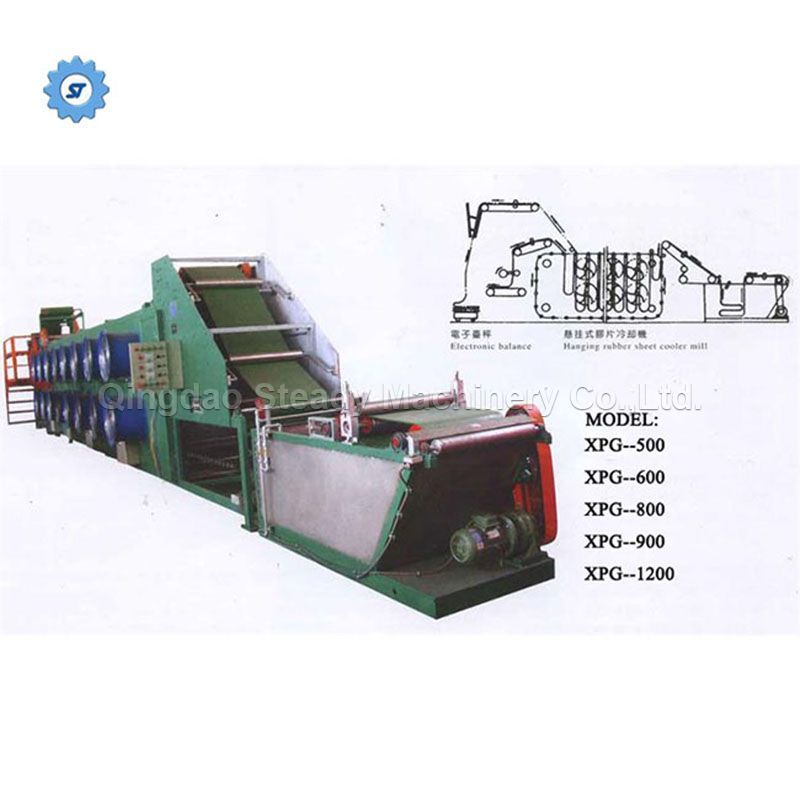

XPG Series batch off cooler

ModelXPG-600XPG-800XPG-900
Max. rubber sheet width
600800900
The thickness of the rubber sheet
4-104-106-12
Rubber sheeting temperature over roomtemperature after cooling
10155
Linear speed of taking-in conveyerm/min3-243-354-40
Linear speed of sheet hanging barm/min0.820.117-1.174-40
Hanging height of the sheet hanging barm1000-15001000-15001400
Number of cooling fans Set122018-26
Total powerKW13.728.818-34
 DimensionsL
14251680026630
W
450047003500
H
340535205630
Gross weightT112234

If you have any special requirement, just communicate with us. We can tailor make according to your work needs.



DETAIL IMAGES

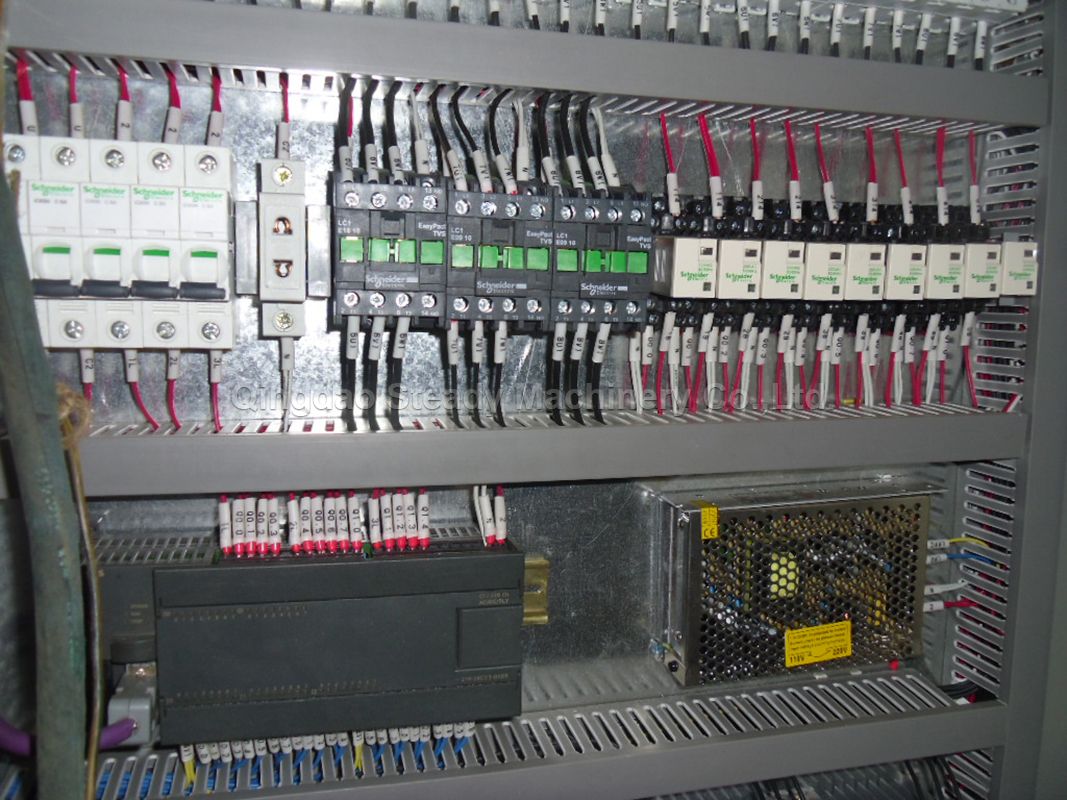

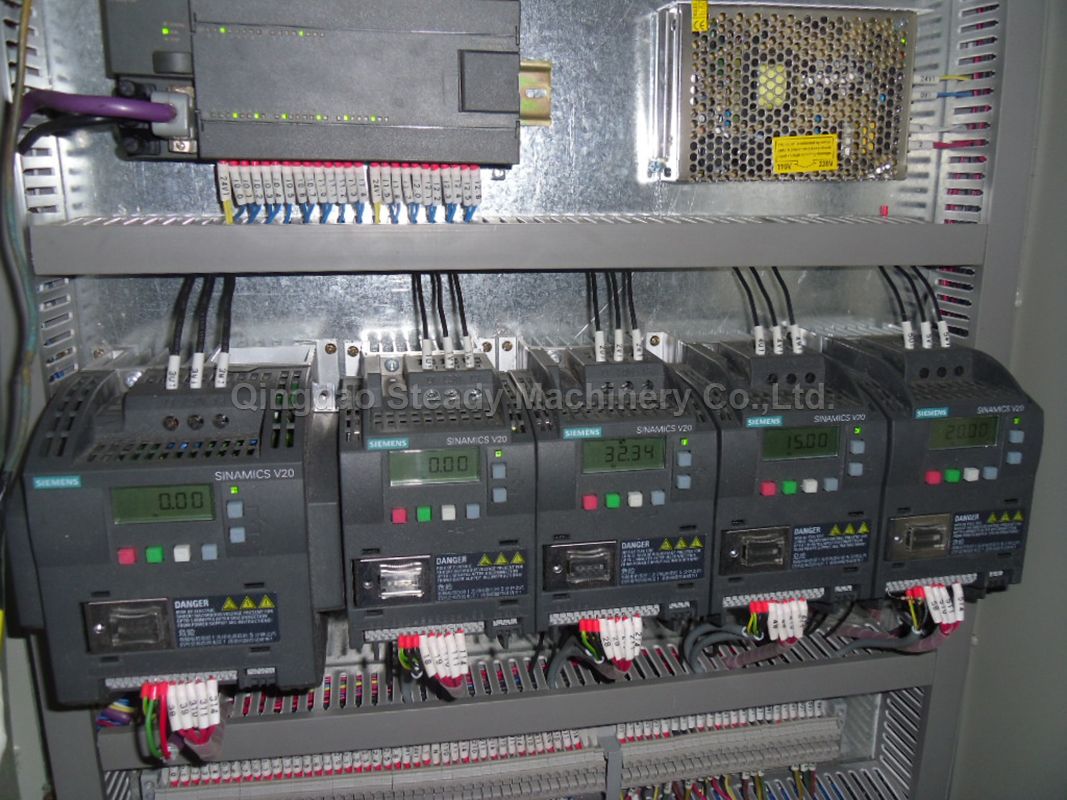

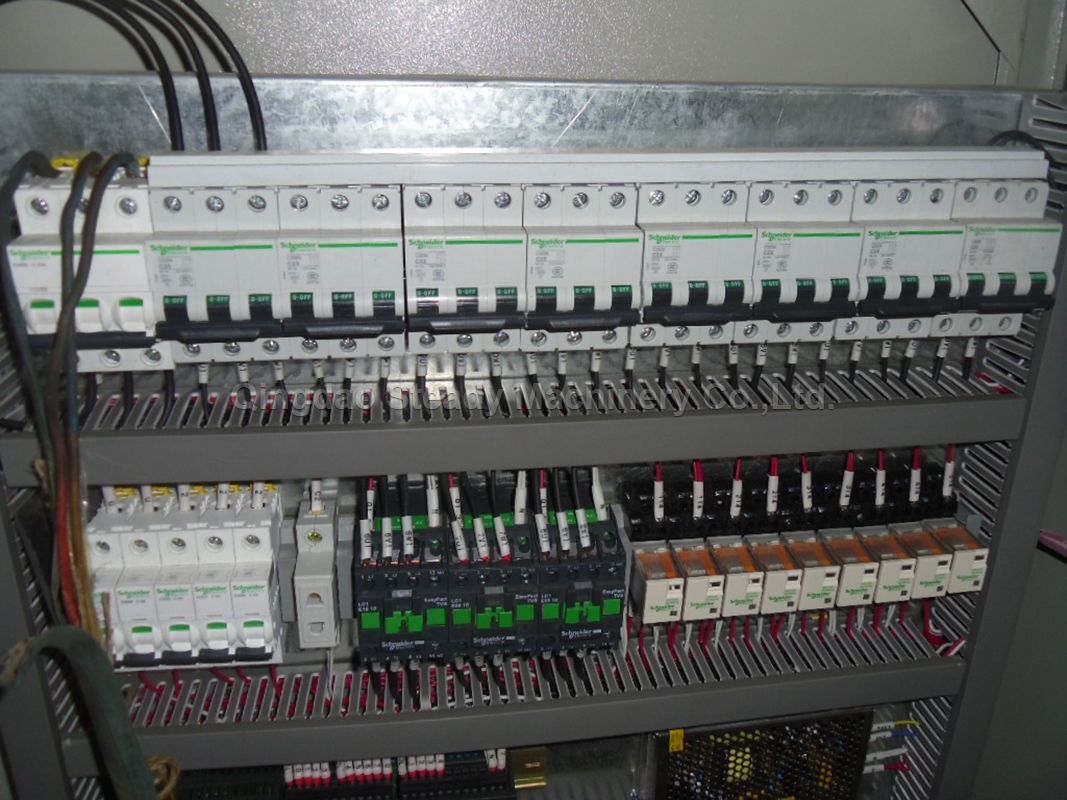

Control Box

Qingdao Steady Machinery's extruder adopts famous brand electronics, works accurate and stable

 Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line

Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line

Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line

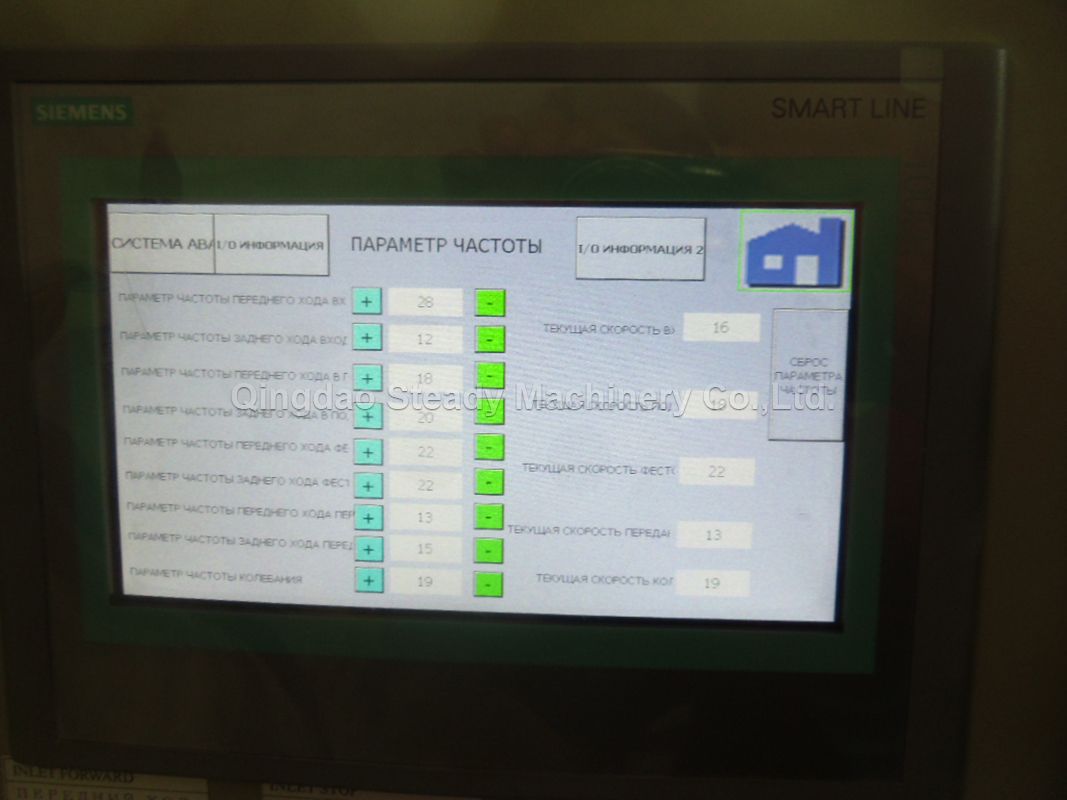

We can install any languages in Siemens PLC system

Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line

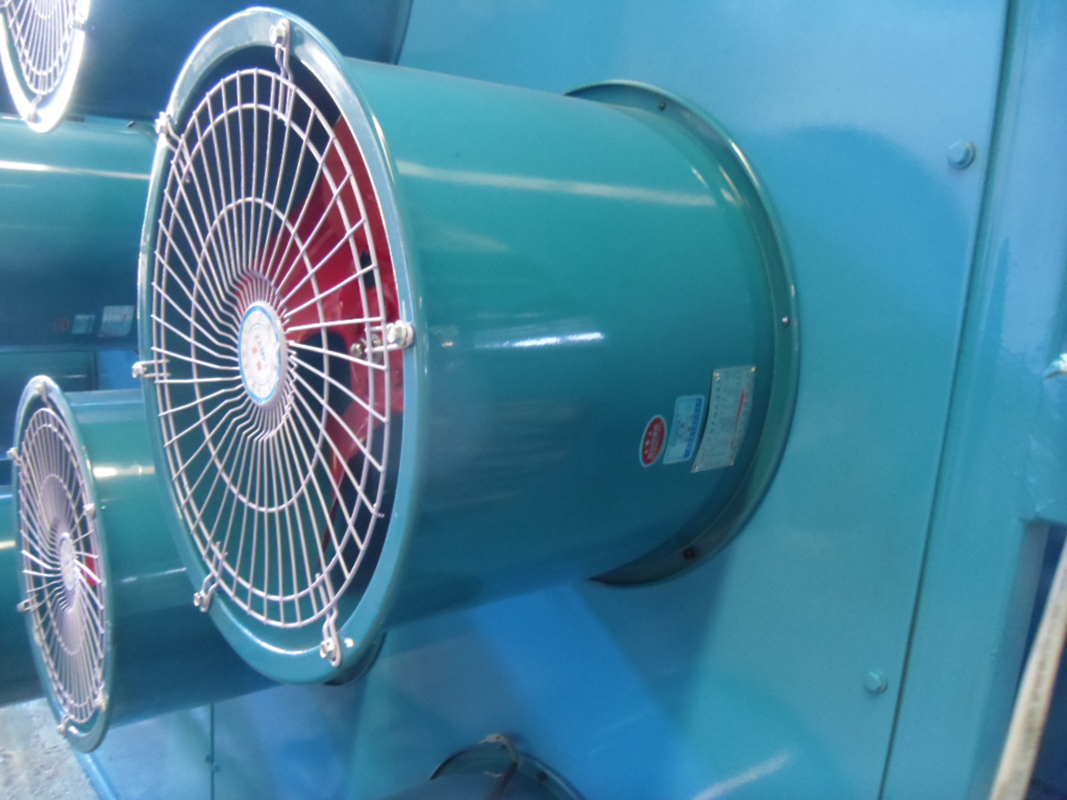

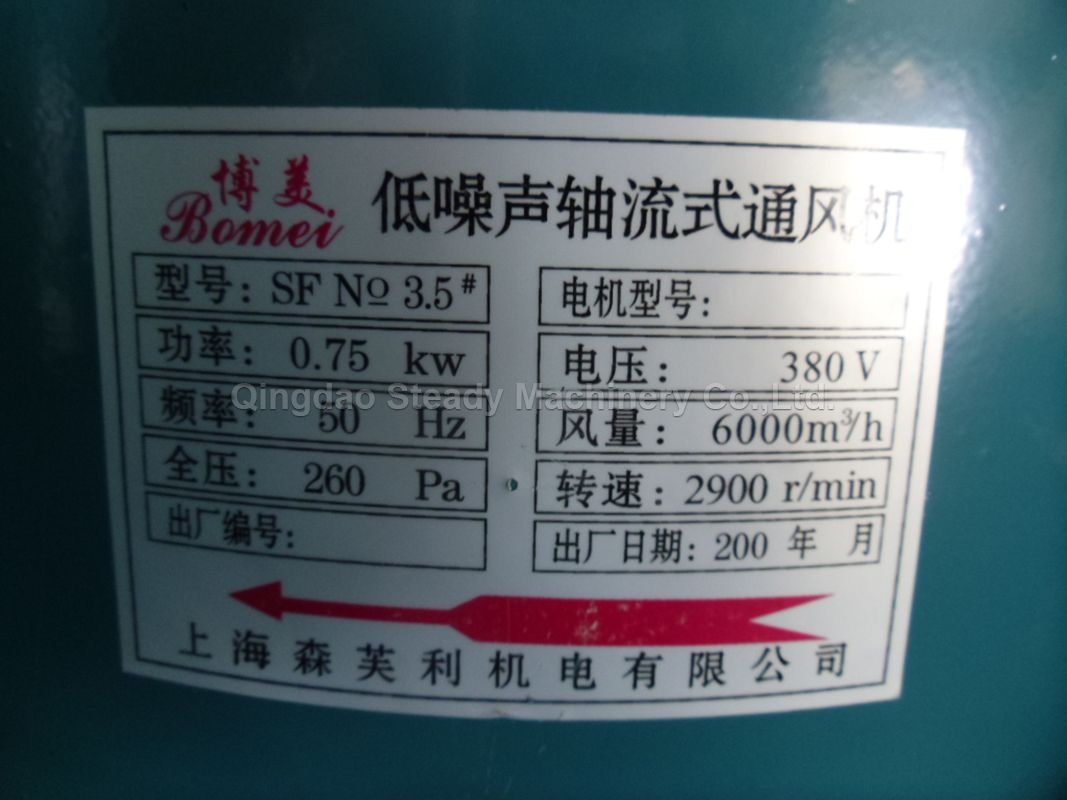

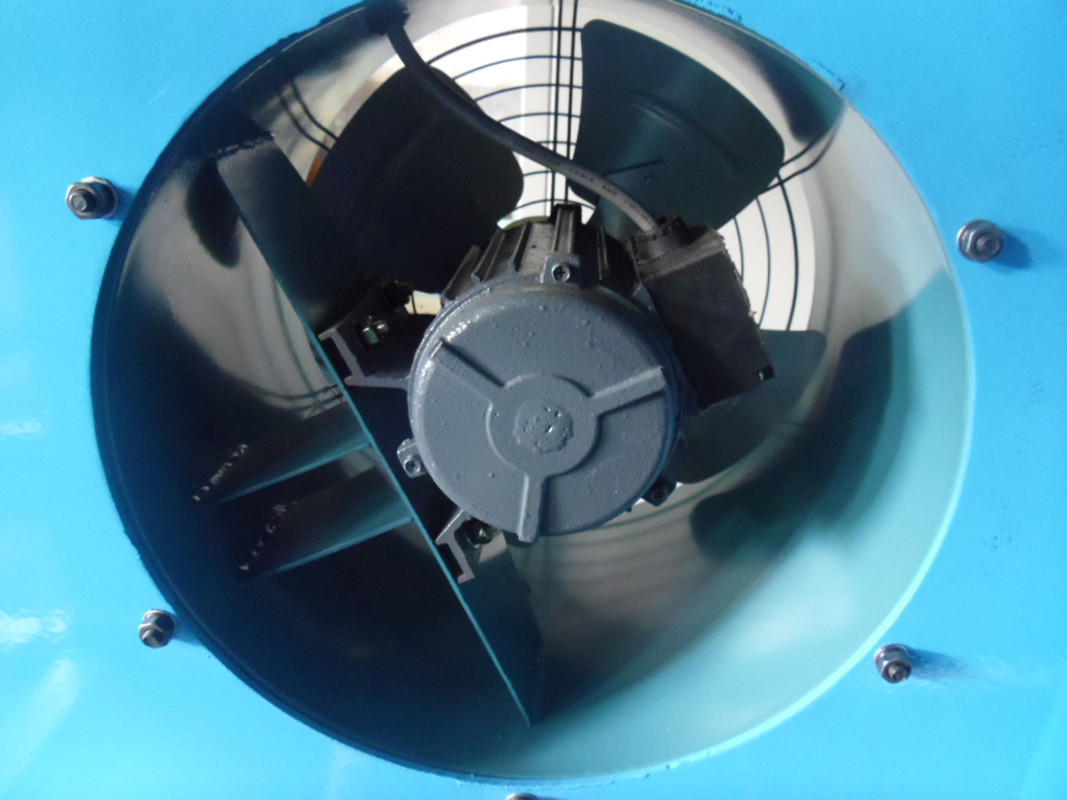

Air Fan

Our machine adopts high quality axial flow fan.  Quality is good, service life is long, low noise and big wind volume, good cooling effect.

Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line

Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line

Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line

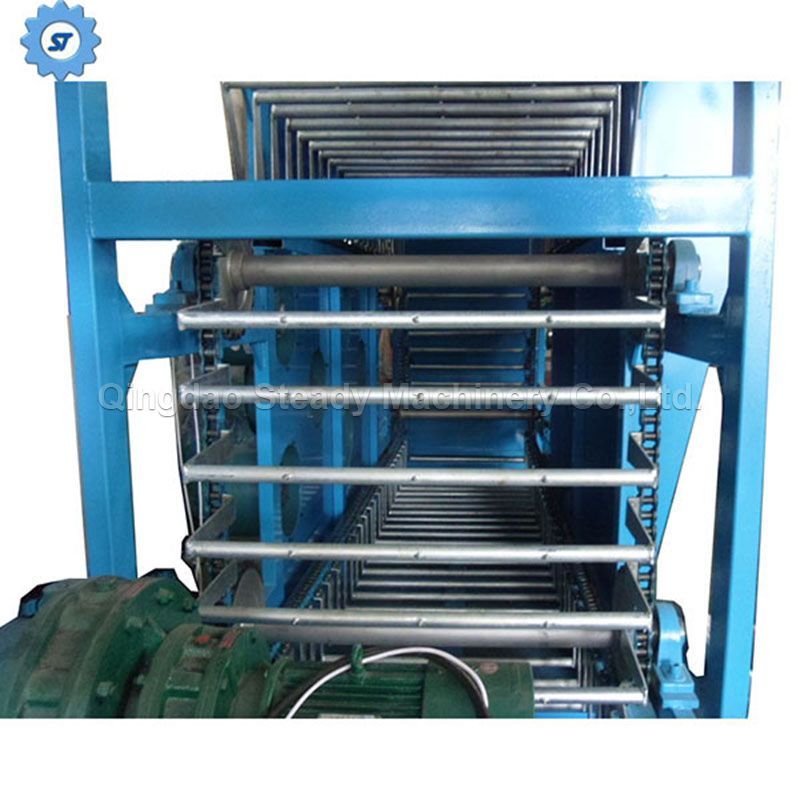

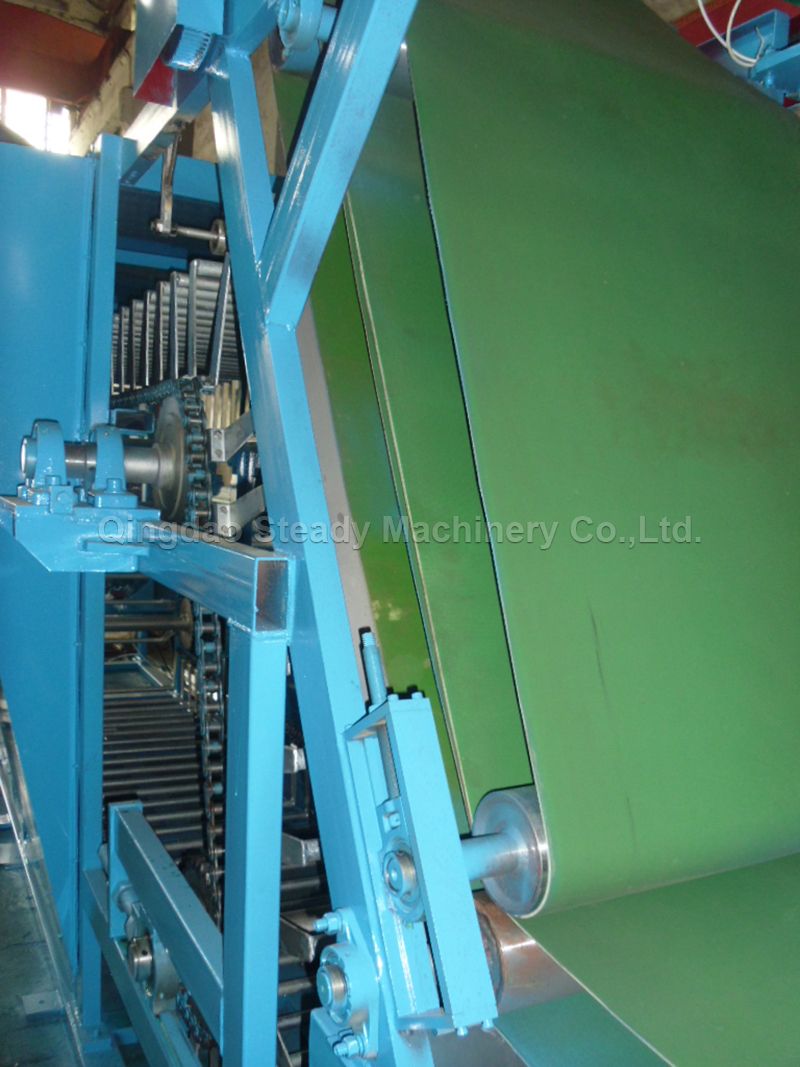

Conveyor Take up and lift Up Device

Use high quality conveyor belt,good wear resistance

Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line

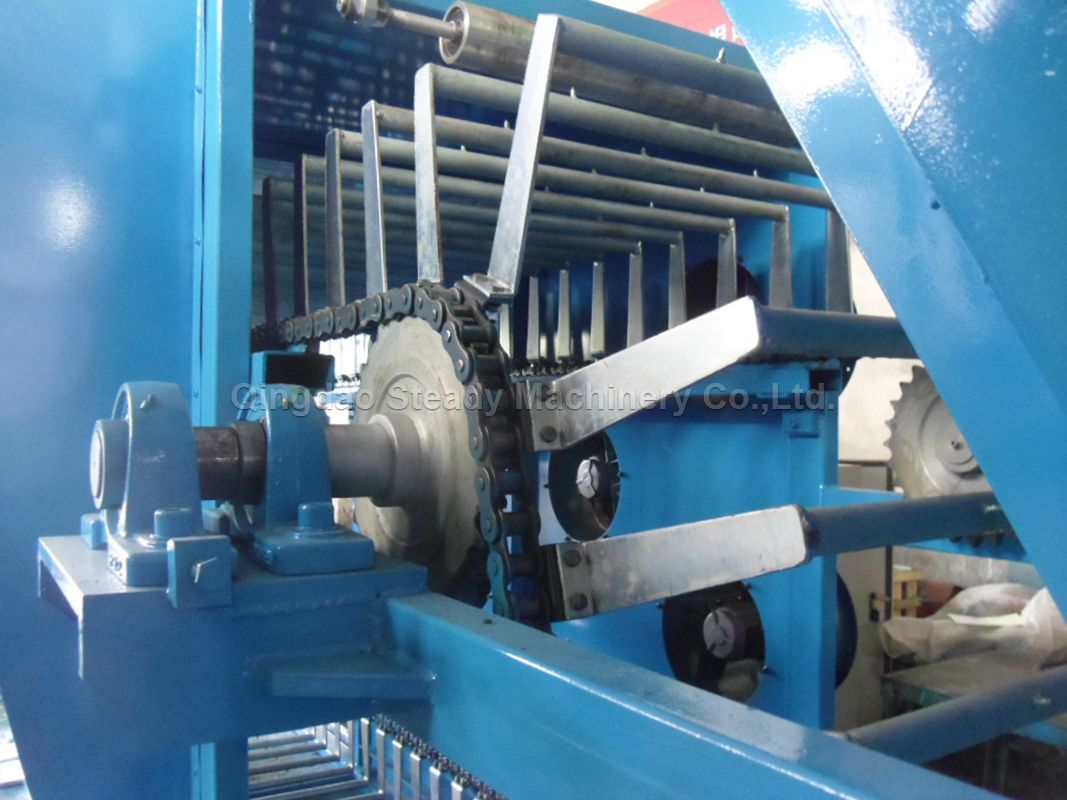

Festoon Hanging Device

We use stainless steel raw material hanging bar, with thorns on it so the rubber sheet is hanged very stable.

Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line

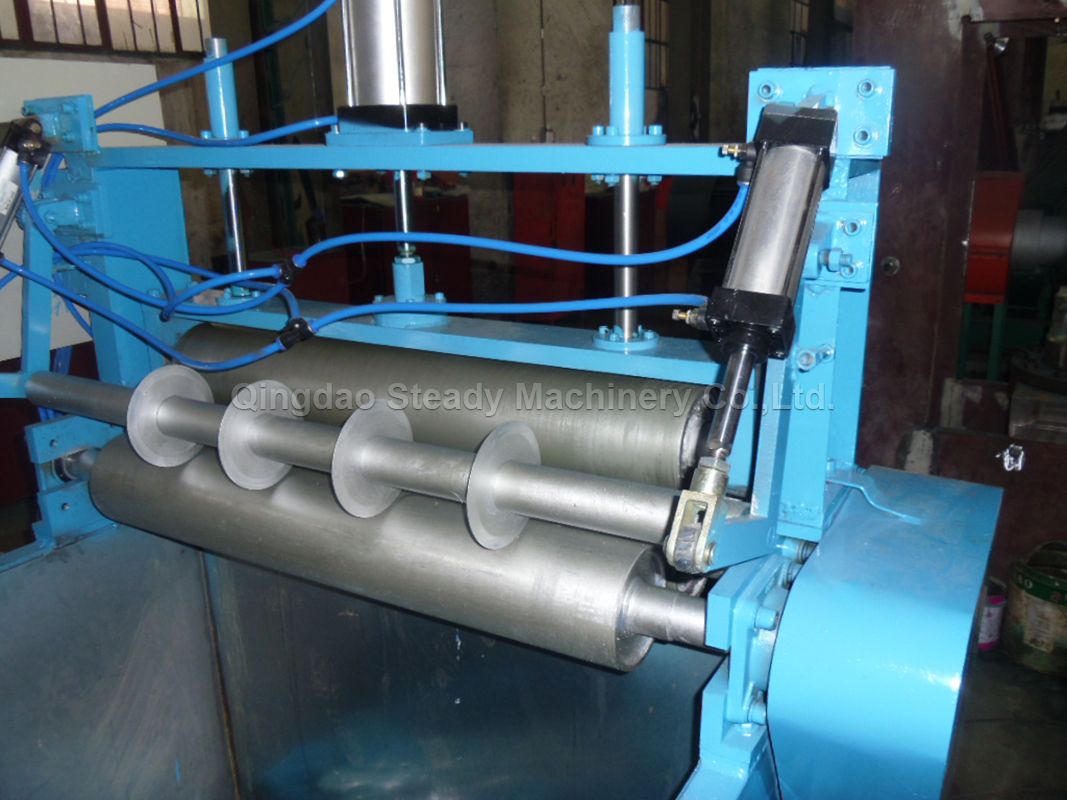

Cutting Device

We use high quality steel blade.  And the cutting width are adjustable according to different customers special work needs.

Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line

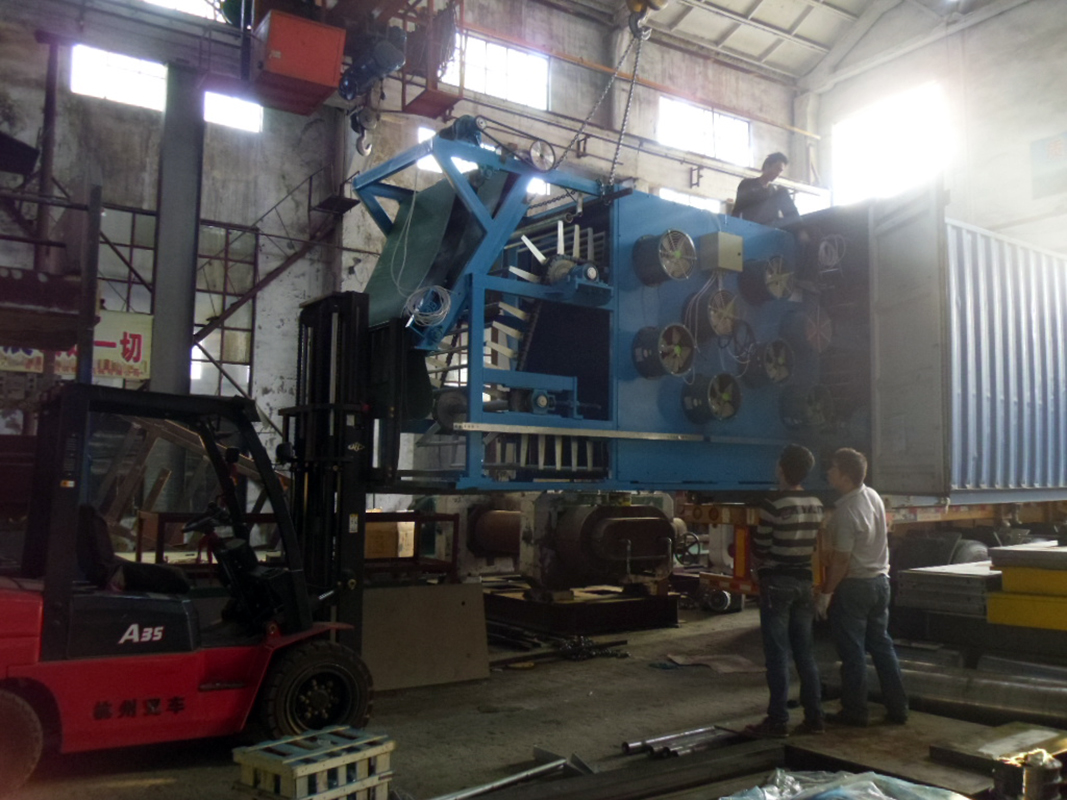

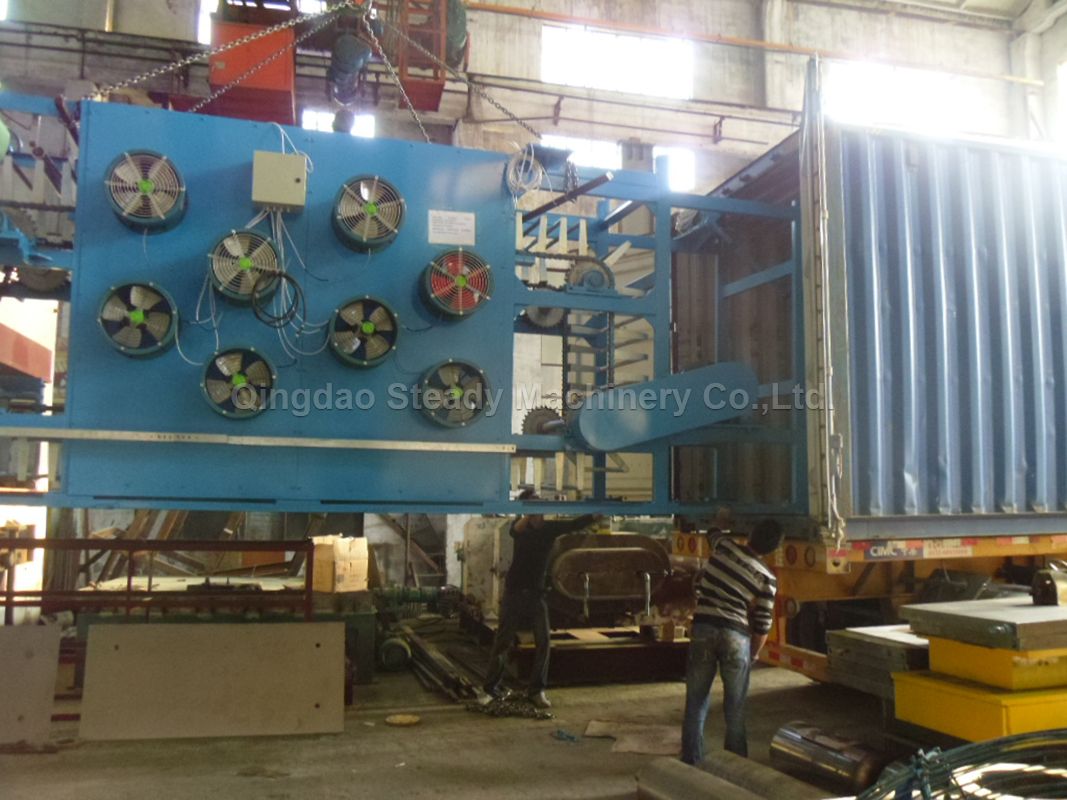

Loading Into Container Export

 Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line

Rubber Sheet Strip Cooling Unit Batch Off Plant Machine Line



1. Installation requirements:

1.1 The installation centerline of the rubber sheet cooling device must be parallel or coincide with the centerline of the pressing equipment, with a parallelism or symmetry of 6mm.

1.2 The central plane of each rubber sheet cooling device should be within the same vertical plane, and the symmetry tolerance of its common central plane should be 4/1000 in the horizontal direction, with a total length not exceeding 10mm, 3/1000 in the vertical direction, and a total height not exceeding 6mm.

1.3 Installation Program

1.3.1 Remove rust from the equipment and wipe off any leaked rust proof grease.

1.3.2 Draw the installation centerline.

1.3.3 Mark the centerline on the frame of each device (preferably based on the driving roller or shaft).

1.3.4 Install the soaking device and lifting device, and align them.

1.3.5 Install other components and align them.

1.3.6 Gas distribution: The inner wall of the air tube must be cleaned thoroughly.

1.3.7 Electricity Distribution.


Ø1. Will your machine meet our voltage, can we use your machine in our country?

   Yes, we can customize every aspect of the machine according to customers’ work needs, Voltage,

   Electricity frequency, clamping force, (heating )platen size, daylight, piston travel, working layer number, with sliding platen or not, assist cylinder, Control method, automatization     level, PLC or not, etc,


Ø 2. Guarantee?

   For the whole machine, not less than 2 years quality guarantee, and life long technical service whenever it’s needed.


Ø 3. Will the machine be kept well while on the sea journey?

   Yes, for small size or single set machine, we use good quality fumigation free ply wood making strong packing for them.

   For big size machine or multi sets small size machine, after proper treatment, we fixed them in the container so that the machine won’t get rust or damage in the sea voyage.


Ø 4. Whats’ the payment method?

   There are TT, L/C, Credit Card, Western Union, Paypal, Alipay etc.



Ø5. What’s the shipping method?

   Our rubber machines are most often shipped by sea, but for land-locked state, there are train or truck transportation. Or there are joint transportation between land and water.

   When it come to small pare parts, it’s by international courier by air.
