Rubber cutting machine is one of the most often used equipment in raw materials processing.It mainly used to cut natural rubber,synthetic rubber,and other plastic materials into small pieces,which satisfy the requirement. Also,it is suitable to be installed near the rubber internal mixer/rubber kneader.

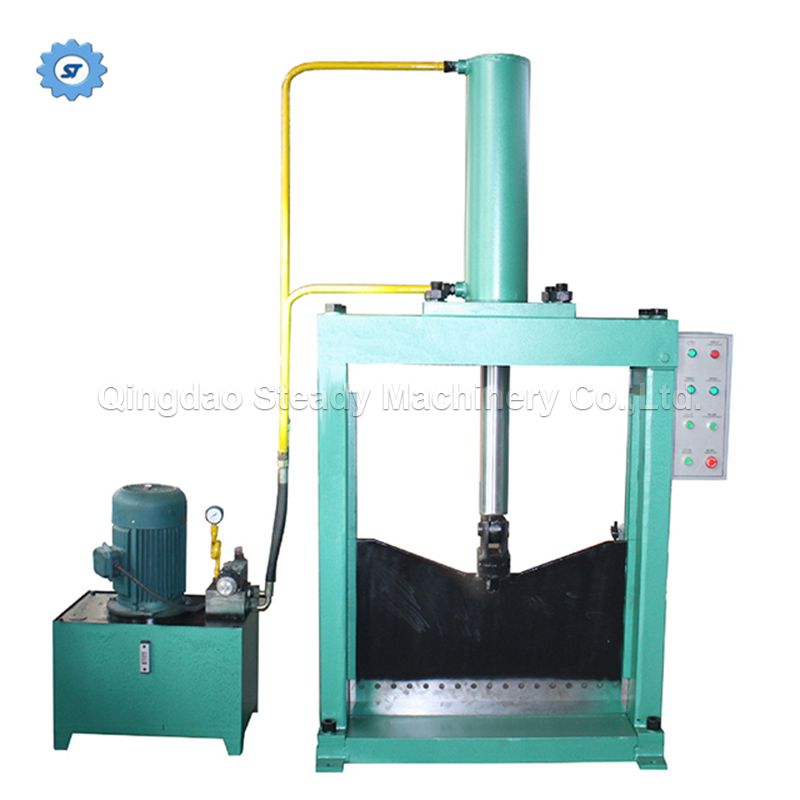

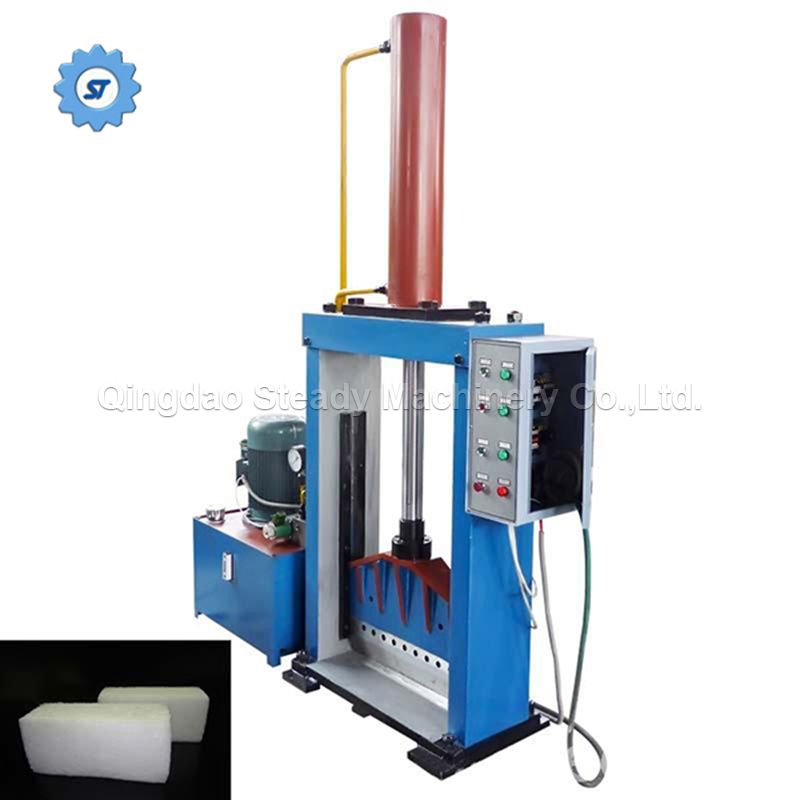

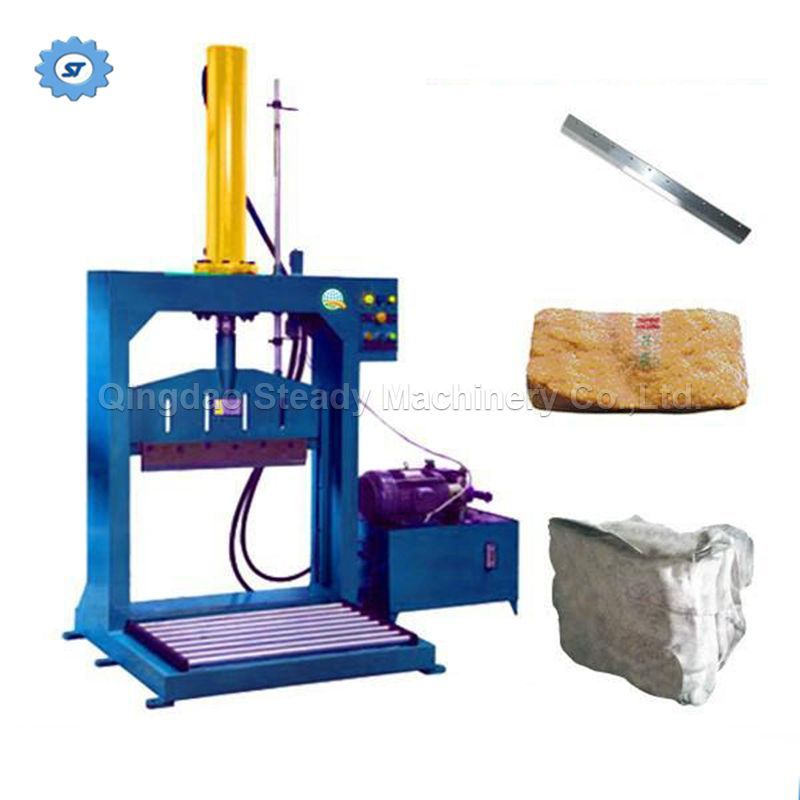

The rubber cutting machine/ rubber bale splitter is mainly used to cut natural rubber, synthetic rubber, and other plastics materials, especially near the internal mixer to cut small piece of rubber and other materials.
The rubber cutting machine is simple structure,reasonable design and convenient operation. It is mainly consisted of cutting knife,frame,oil pump, oil cylinder, base, auxiliary table, electric system and hydraulic system.It adopts the unloading valve control to save the energy.
The lead protection mat is installed under the cutting knife to protect the edge of the cutting knife.When working,put the raw rubber under the cutting knife and cut it into small pieces suitable for rubber mixing by the presser of the hydraulic oil cylinder.
Below are some often used models of rubber bale cutting machine
| Model | XQL-660 | XQL-760 | XQL-1000 | |
| Cutting width(mm) | 660 | 760 | 1000 | |
| Knife stroke(mm) | 680 | 680 | 680 | |
| Total pressure(KN) | 80 | 125 | 200 | |
| Cylinder diameter(mm) | 150 | 150 | 150 | |
| Stroke taken time(s) | 16~25 | 16~25 | 16~25 | |
| Motor power(kw) | 5.5 | 5.5 | 5.5 | |
| Overall dimension(mm) | L | 1900 | 2000 | 2240 |
| W | 720 | 720 | 720 | |
| H | 2580 | 2580 | 2580 | |
| Weight(ton) | 1.1 | 1.5 | 2.0 | |
We can tailor make machine according to customers' technical requirements or special work needs.
Just feel free to contact us. We'll make a best proposal with most reasonable price.
Some rubber tile pictures for reference:
Reference video on Youtube:

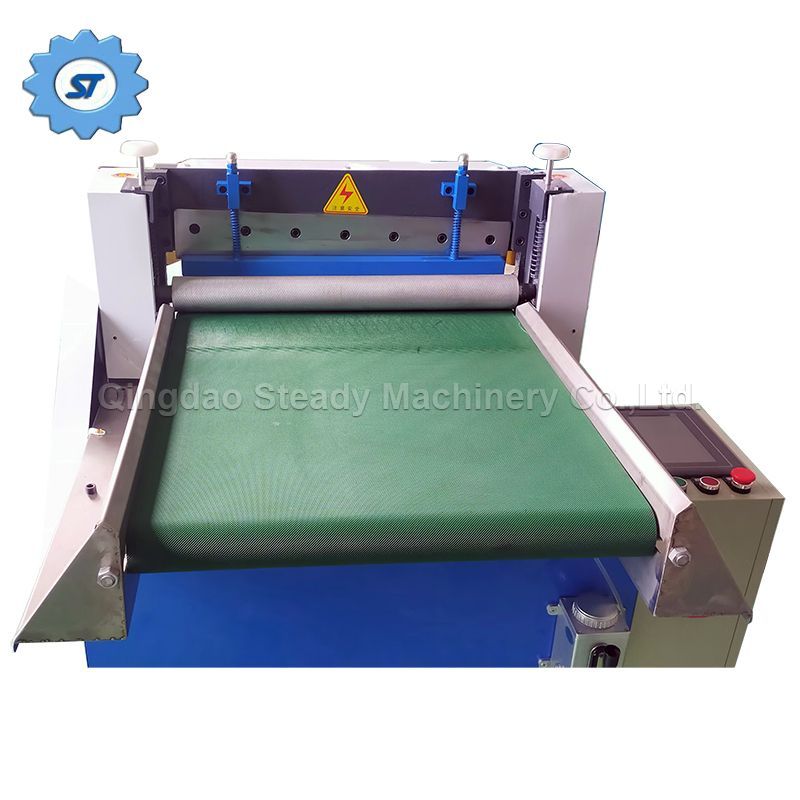

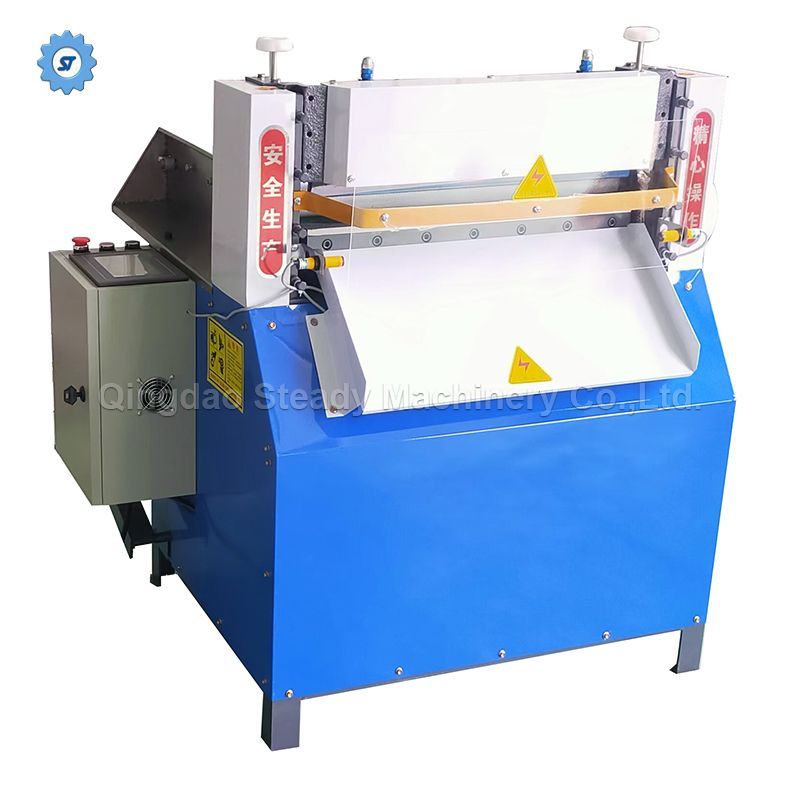

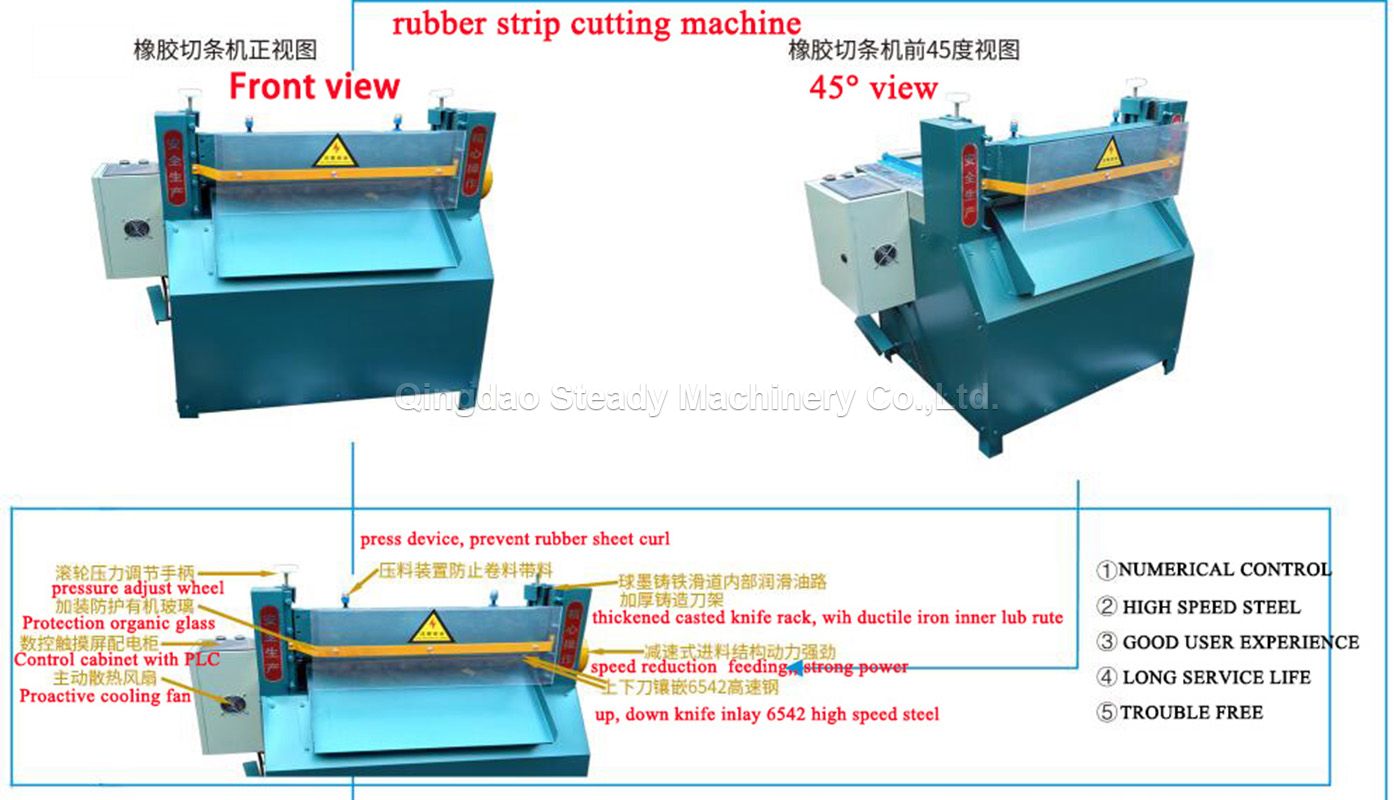

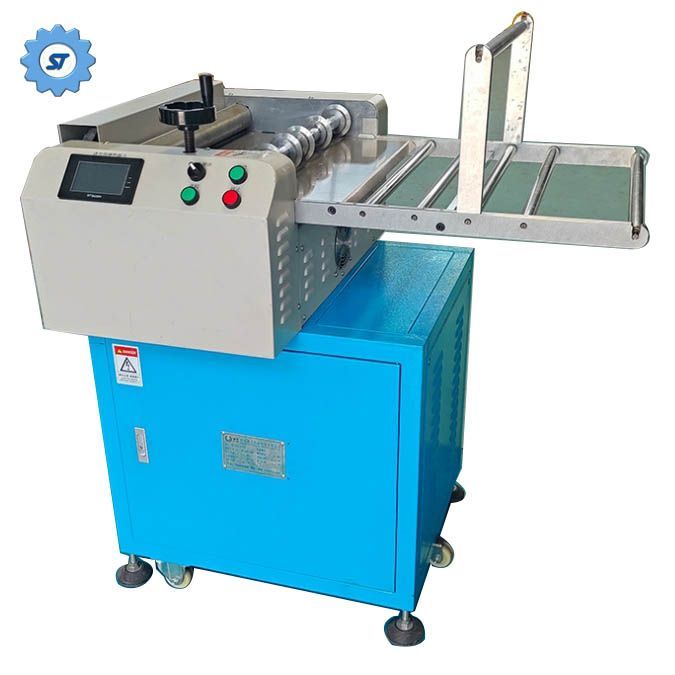

RUBBER SHEET/STRIP CUTTING MACHINE
Numerical control Rubber strip cutting machine is a machine specifically designed to cut raw rubber sheet into strips for subsequent processing and use. Its main functions include:
Raw rubber sheet cutting: In the production process of rubber materials, it is necessary to cut rubber products into the desired shape and size, and a rubber cutting machine is needed. rubber open mixing mill will press rubber into sheet shape, then this machine can cut the rubber sheet into suitable size and weight for feeding rubber vulcanizing machine.
Recycling and reuse of rubber products: Rubber products that are damaged or have reached their expiration date during use need to be recycled and reused, while rubber cutting machines can cut waste rubber products into the required size and shape for subsequent processing and use.
| Model | RC-600 | RC-700 | RC-800 |
| Max. Cutting Width(mm) | 600 | 700 | 800 |
| Max. Cutting Material Thickness(mm) | 20 | 20 | 20 |
| Cutter Material | High carbon rapid steel 6542(W6Mo5Cr4V2) | High carbon rapid steel 6542(W6Mo5Cr4V2) | High carbon rapid steel 6542(W6Mo5Cr4V2) |
| Feeding Length(mm) | 0-9999 | 0-9999 | 0-9999 |
| Cutting Speed(pcs/min) | 80 | 80 | 80 |
| Motor Power(kw) | 3.0kw(380V,50HZ, 3phase or as require) | 3.0kw(380V,50HZ, 3phase or as require) | 4.0kw(380V,50HZ, 3phase or as require) |
| Control & Adjust Method | Touch Screen with PLC | Touch Screen with PLC | Touch Screen with PLC |
| Stepper Motor | 110byg-20n.m | 110byg-20n.m | 110byg-20n.m |
| Machine Size(mm) | 1100*1250*1200 | 1100*1350*1200 | 1100*1450*1200 |
| Weight(kg) | 400 | 500 | 650 |
| Color | White or require | White or require | White or require |

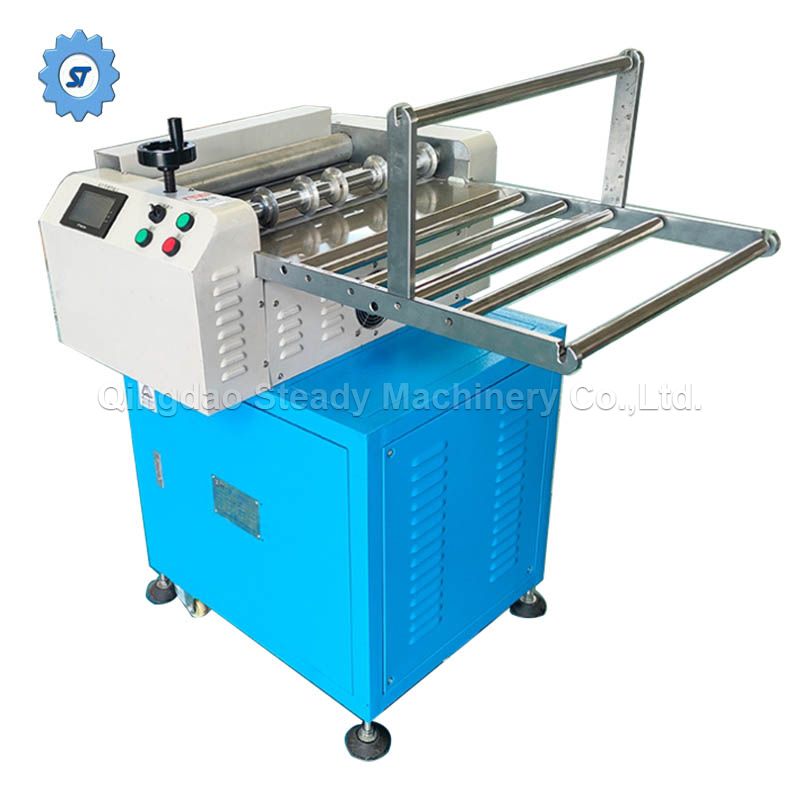

Silicone Strip Cutter ( tranverse and longitudinal direction)
| Model | SSC550 |
| Cutting Width | ≤550mm |
| Power Requirement | 220V, 50HZ |
| Total Power | 1.5kw |
| Cutting Speed | 120 times/min |
| Cutting Power | 0.12kw |
| Rubber Sheet Length | ≤1000mm |
| Rubber Thickness | ≤12mm |
| Knife Number | 5 |
| Cutting Combinations | 3 （ It can continuously cut different lengths and quantity combinations） |
| Dimension | 1050x830x1050mm |
| Weight | 160kg |

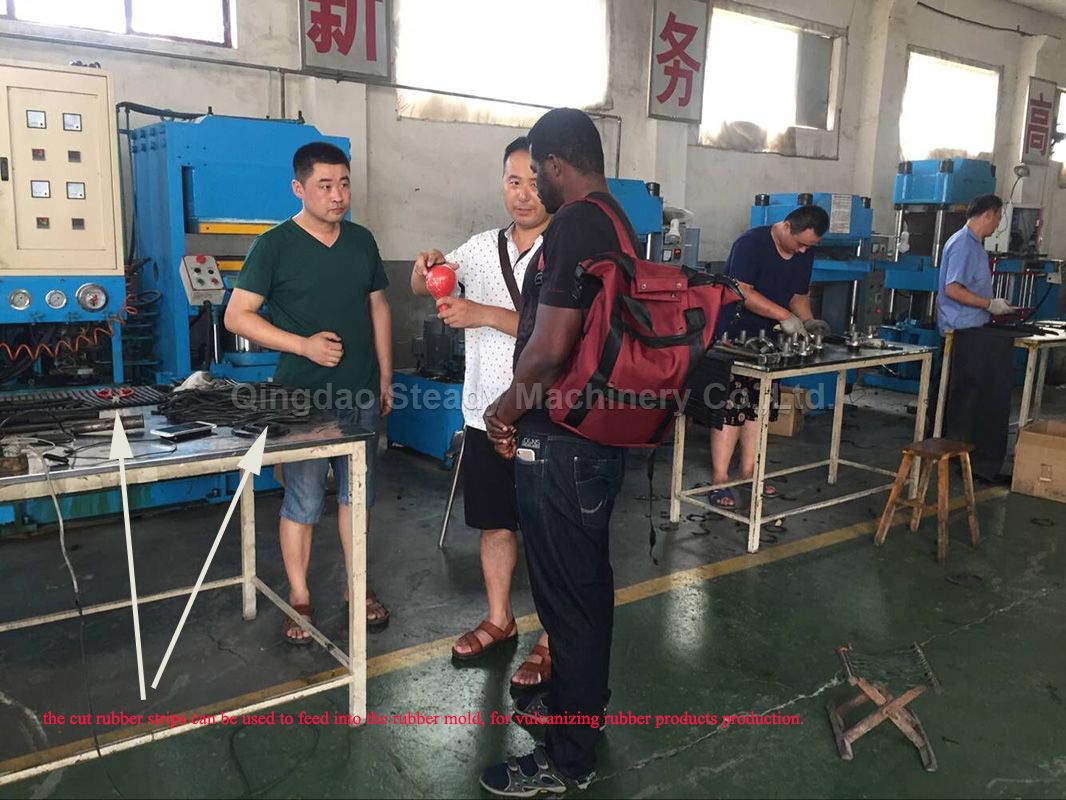

The cut rubber strips can be used to feed into rubber mold, for rubber vulcanizing press production
Other Cutting Machine

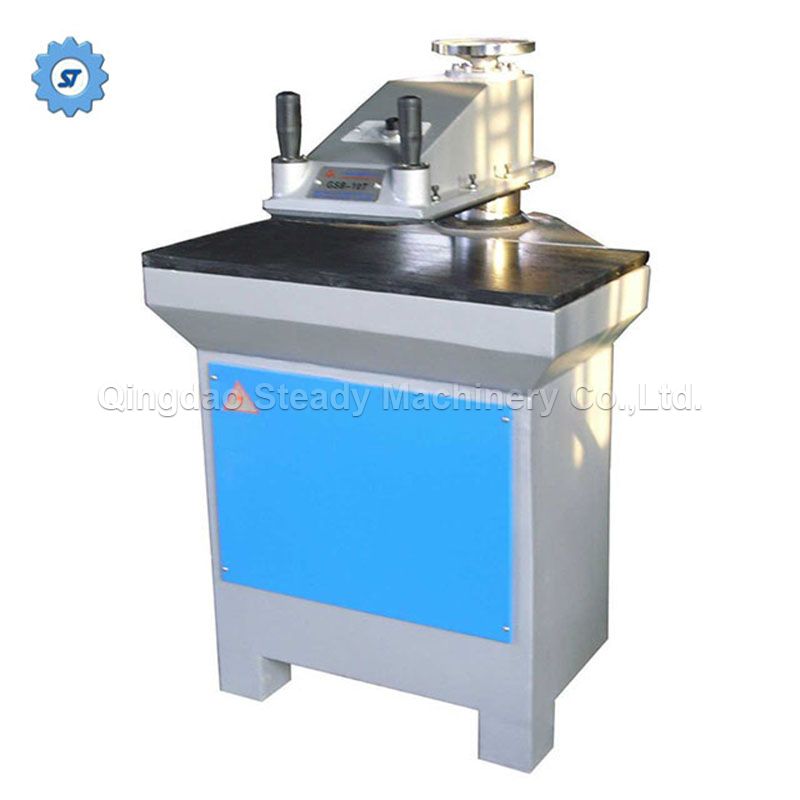

Swing Arm Clicking Press
Our swing arm cutting machine has the characteristics of low energy consumption, high pressure, easy adjustment, and simple operation. It is the preferred equipment for cutting materials in industries such as shoes, bags, clothing, plastics, rubber, gloves, etc.
| Model | GSB-2C |
| Motor Power | 1.5kw |
| Max Cutting Force | 200kn(20ton) |
| Weight | About 1000kg |
| Dimension | 1000mmx1200mmx1500mm |

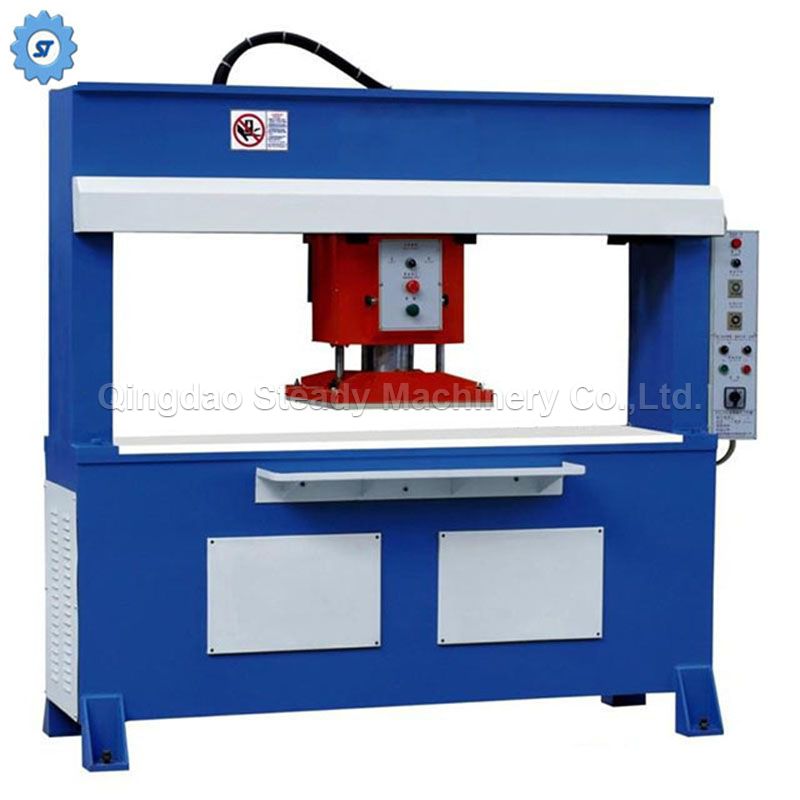

Hydraulic Traveling Head Cutting Machine
Hydraulic Plane Cutting Machine
| Model | HYP-500 | HYP-800 | HYP-1000 |
| Max. Cutting Force | 500kn | 800kn | 1000kn |
| Cutting Area | 800x1600mm | 800x1600mm | 800x1600mm |
| Travel Adjustment Range | 50-200mm | 50-200mm | 50-200mm |
| Motor Power | 4kw | 4kw | 5.5kw |
The gantry type cutting machine is suitable for cutting various materials such as leather, plastics, fabrics, leather bags, toys, hats, foam sheets, flooring materials, cork sheets, etc. that require a cutting die
1. Adopting a dual oil cylinder, four column guide, and automatic balance connecting rod structure, ensuring that the cutting depth at each cutting position is exactly the same
2. Equipped with an automatic lubrication system, easy to operate, low failure rate, and strong cutting force,
3. When the cutting board contacts the cutting die, it automatically cuts slowly, ensuring that there is no dimensional error between the top and bottom layers of the cutting material.
4. Unique setting structure, combined with cutting force and cutting height, makes stroke adjustment simple and accurate.
5. Equipped with specific stroke settings, suitable for cutting thick materials and high knives horizontally,

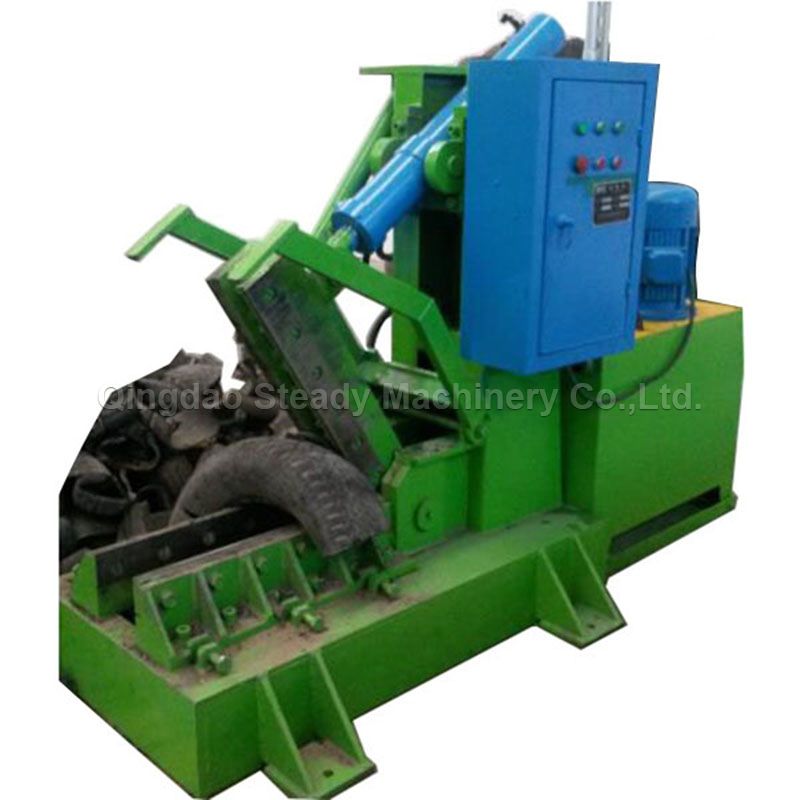

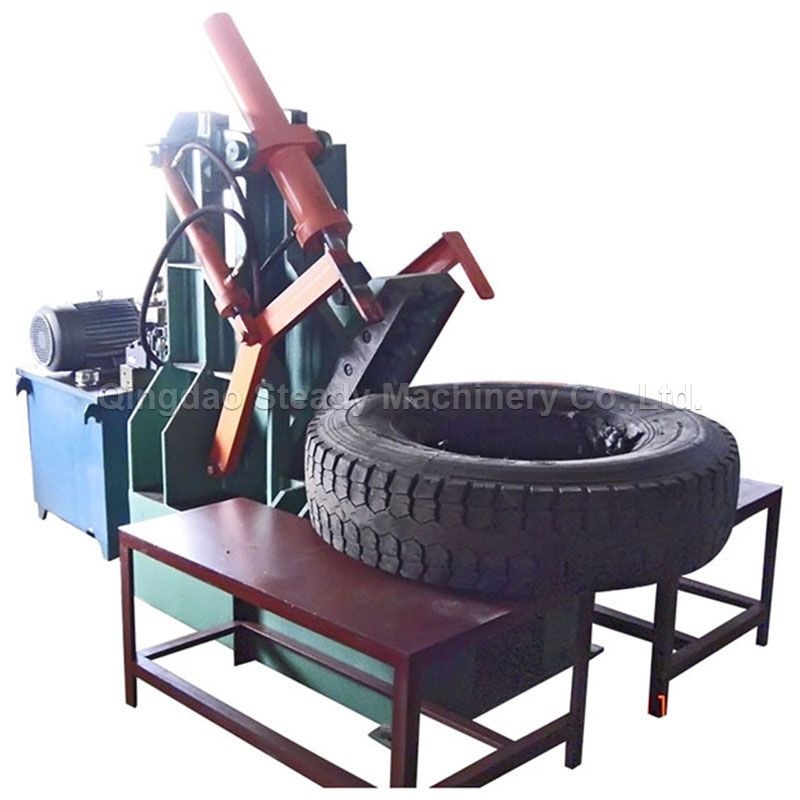

Rubber tyre cutting machine is used to cut waste rubber tyres.
Cut whole waste tyre into big pieces

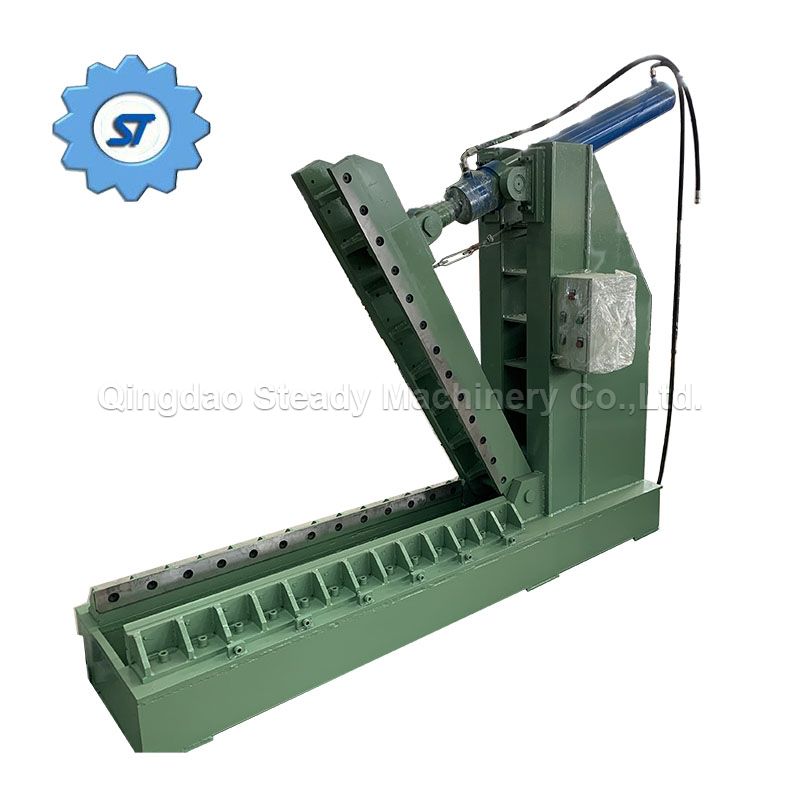

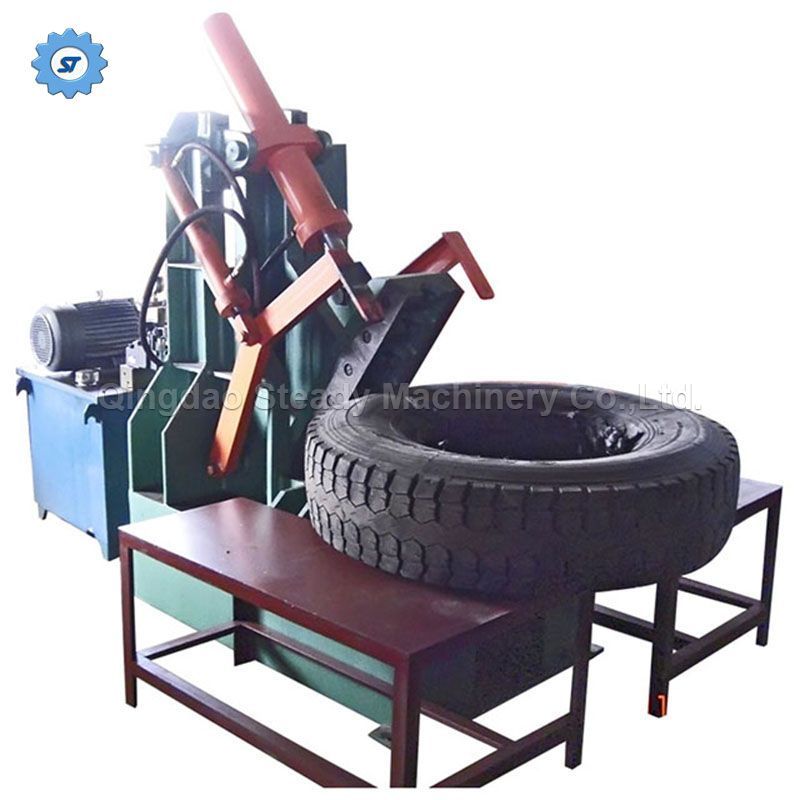

2.5m tyre cutter picture:

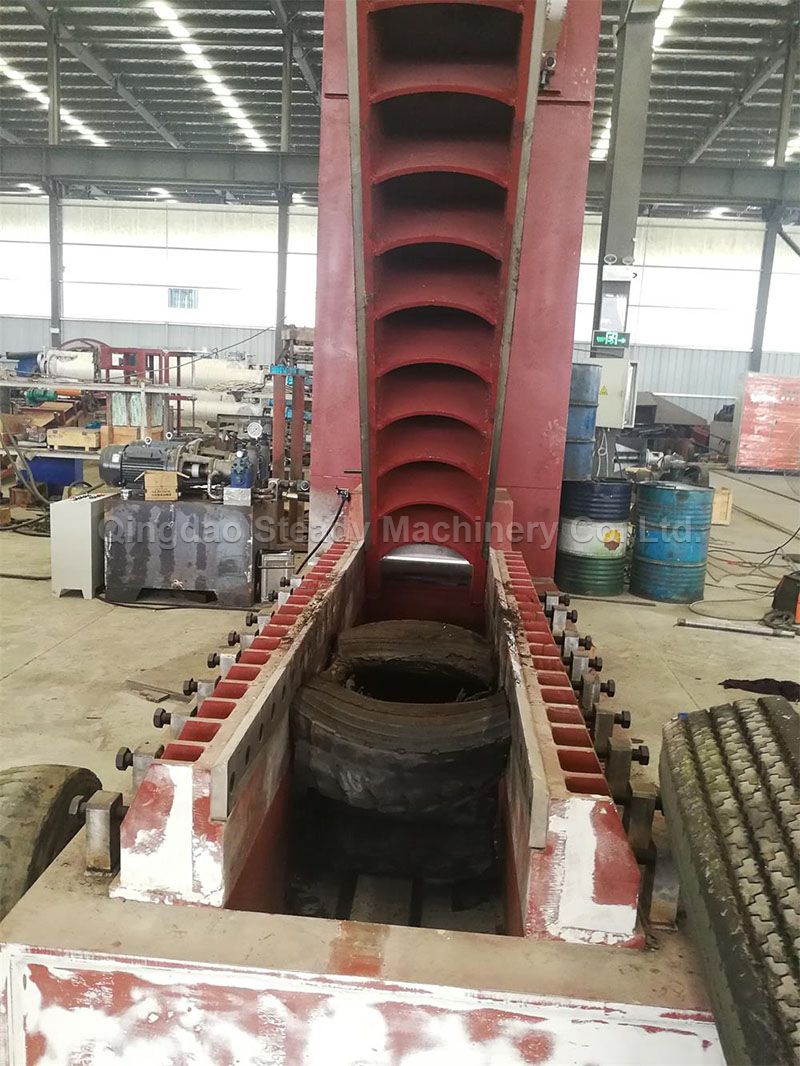

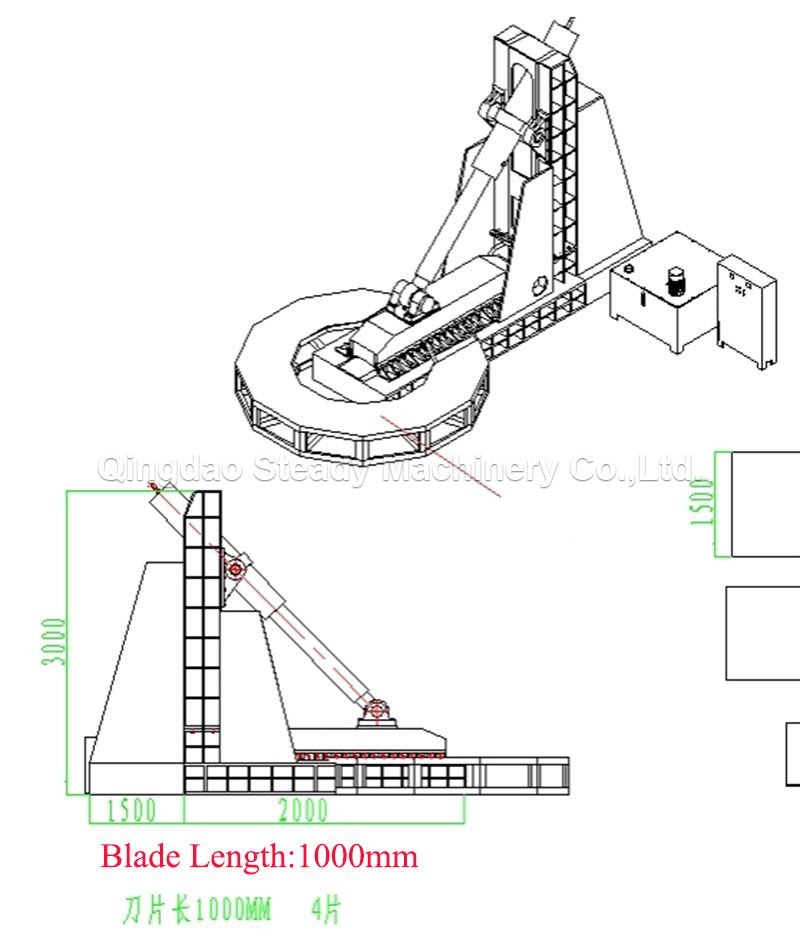

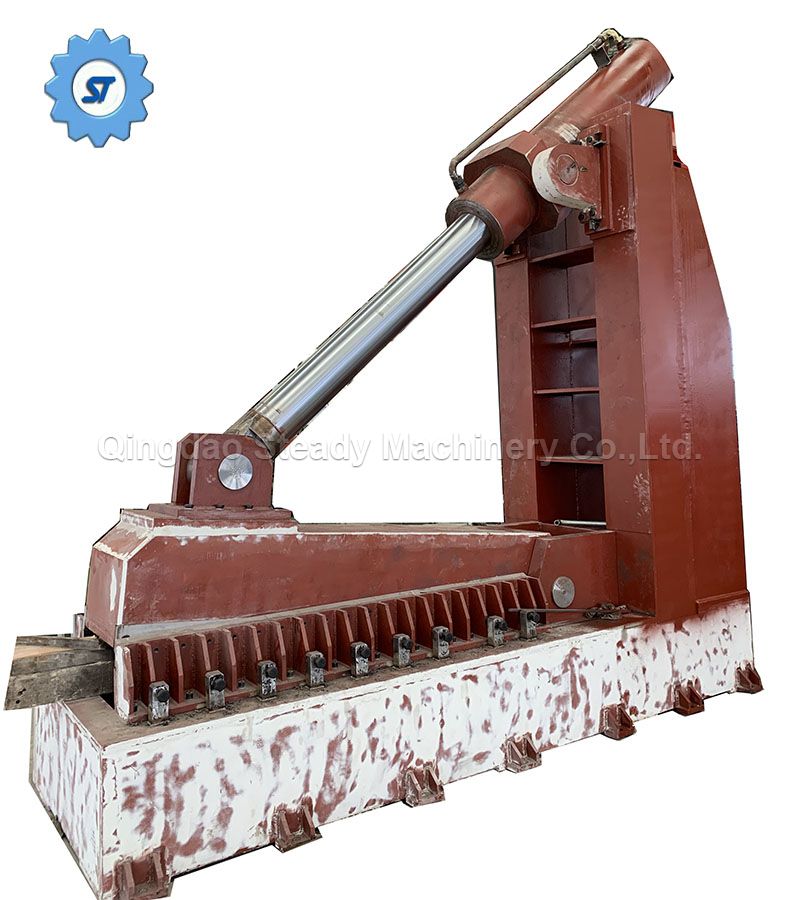

3.8m Waste Tyre Cutter
Cutting Test Picture

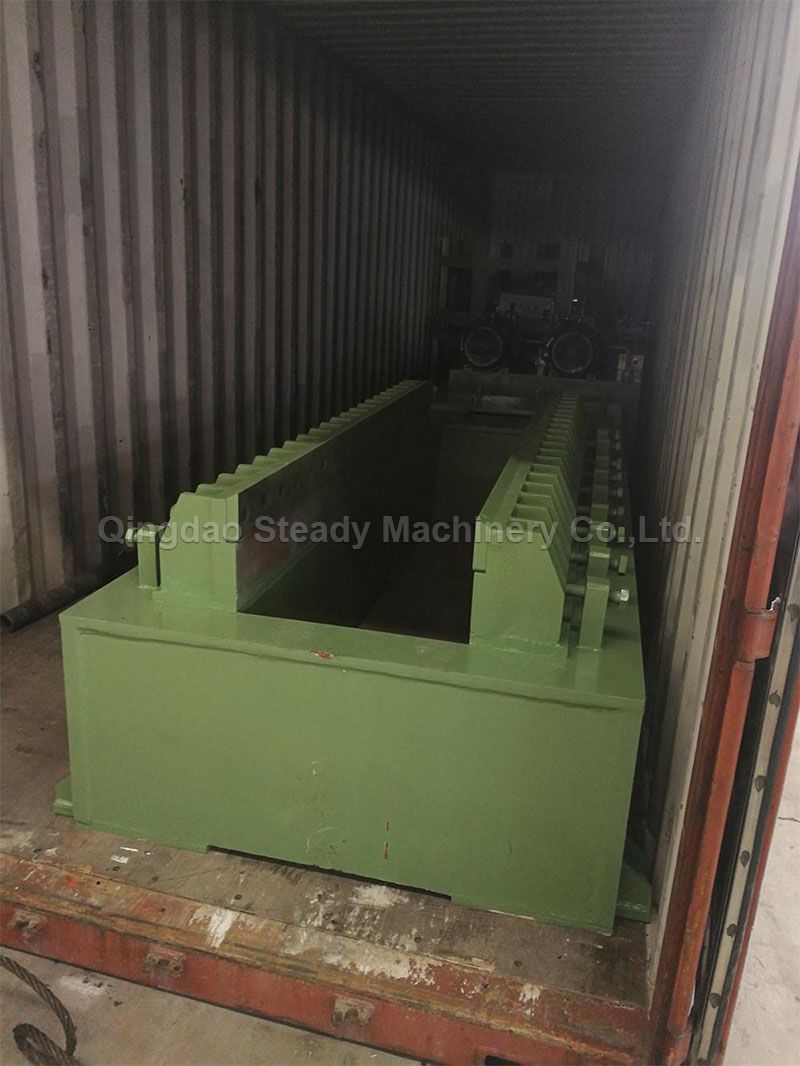

Loading Container Picture
| Model | TC-2500 | TC-3800 |
| Specification of raw material | 1400-2500mm tires | 2500-3800mm tires |
| Specification of finished material | 200-400mm tire blocks | 200-400mm tire blocks |
| Production Capacity | 10-15 tires per hour | 10-15 tires per hour |
| Pulling force | 100T | 200T |
| Max. Tyre diameter | ≤2500mm | ≤3800mm |
| Knife material | High strength Alloy steel | High strength Alloy steel |
| Knife quantity | 2 pieces | 2 pieces |
| Control Method | Automatic system | Automatic system |
| Feeding Method | Driving handling | Driving handling |
| Main motor (kw) | 7.5 kw | 7.5 kw |
| weight | About 4200kg | About 19000kg |
If you need other size machines, please feel free to let us know.
