Rubber Conveyer Belt Bond Connection Hot Vulcanizing Machine

Share:

Qingdao Steady Machinery Co.,Ltd is a professional rubber belt joint machine maker.


We have confidence to be one of top rubber conveyor belt joint machine maker in technology, in raw material using, and in our processing and machining work, we have more than twenty years experience in rubber conveyor belt joint machine making.

Qingdao Steady Machinery Co.,Ltd is a professional rubber belt joint machine maker.

We have confidence to be one of top rubber press machine maker in technology, in raw material using, and in our processing and machining work, we have more than twenty years experience in rubber vulcanizing press machine making.


Advantages

-Primary Advantages

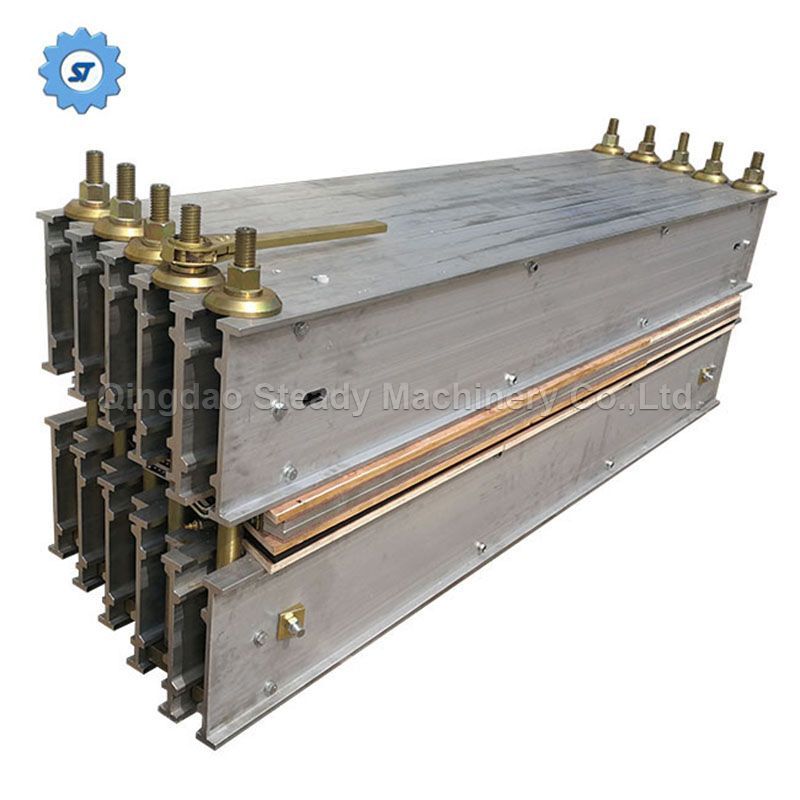

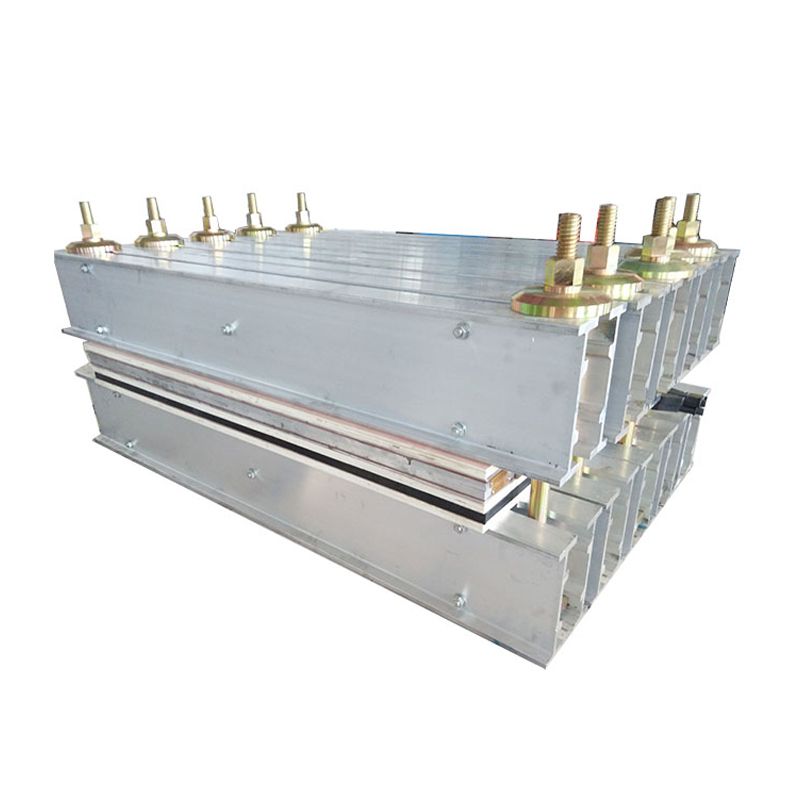

Our rubber conveyor belt joint machine’s main advantage is strong, durable and sturdy, while light weight, easy handle, easy operation.  The machine’s body adopts aluminium alloy profiles. And our water bag strength is as high as conveyor belt and with good sealing effect.

Our heating platen, the temperature is even, and long service life.

Our rubber belt joint machine’s control box is compact structure, easy use, work sensitively, safely, and reliably.


-Why should I buy rubber belt joint machine?

-What makes this product different to (insert competitor products here)?

Good quality and high strength makes our rubber belt joint machine different to those competitors'.

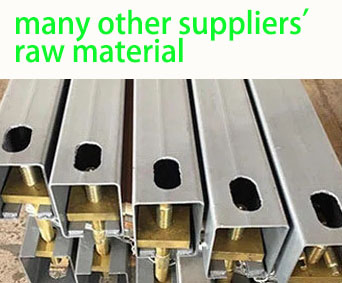

While many other suppliers just use low quality steel and bottom standard (even not enough) strength.


Rubber Conveyor Belt Joint Machine


Main Functions

Rubber belt joint press machine is widely used in rubber conveyor belt joint industry.



-Key Features

The main features of our rubber belt joint machine is strong enough,  trouble free in working and long service life.



-What is the purpose of the rubber belt joint machine?

The purpose of rubber belt joint machine is for connecting or repairing rubber conveyor belt.



-What benefits will you get from rubber belt joint machine?

Our rubber belt joint press machine is used to make high quality high efficiency joint of rubber conveyor belt.



Use

-Where can rubber belt joint machine be used?

Rubber belt joint machine widely used in coal mine, copper mine, ore factory, port terminals, food industry, chemical industry, textile industry,  any working spot where use rubber conveyor belt for transportation.


ModelBelt width(mm)Splicing dimensionHot Plate Size (mm)Power(KW)Machine Size(cm)Machine Weight(kg)
ST-650650650*830850x83010.5150x90x63500


650*1000850x100012.75150x107x63596
ST-800800800*8301010x83012.6166x90x63560


800*10001010x100015.2166x107x63650
ST-100010001000*8301220x83012.5187x90x63618


1000*10001220x100018.3187x107x63722
ST-120012001200*8301430x83017.8208x90x63800


1200*10001430x100021.5208x107x63912
ST-140014001400*8301640x83017.4205x90x73885


1400*10001640x100021205x107x731050
ST-160016001600*8301850x83023225x90x731130


1600*10001850x100027.8225x107x731325
ST-180018001800*8302060x83025.6271x90x731420


1800*10002060x100031271x107x731630
ST-200020002000*8302270x83027.42.92x90x771560


2000*10002270x1000342.92x107x771824
ST-220022002200*8302480x83031313x90x771720


2200*10002480x100037.2313x107x772030
ST-240024002400*8302690x83033.5334x90x771874


2400*10002690x100040334x107x772220
ST-260026002600*8302900x83036355x90x771986


2600*10002900x100043.5355x107x772355
ST-280028002800*8303110x83038.73200*820*11402093


2800*10003110x100046375x107x772480
ST-300030003000*8303322x83041397x90x772210


3000*10003322x100050397x107x772624


Customers can choose machine from above form, or just tell you their detail requirement, so we can customize rubber belt joint machine for them.


How to use

The machine’s use procedure is: peel the old rubber belt, grinding, then put the joint part on the machine’s bottom heating platen, put new raw rubber, core rubber,brush adhesive paste, cover rubber, then put the up heating platen, heat insulation wood board, the put up beam on one by one, mount the tiebar, use spanner do some tight work, then use electric pump to add the machine to work pressure, vulcanizing timing,when get to the set time, the machine will auto alarm, then cooling the heating platen by water pump, the final is discharge and take the finished rubber belt out.


Components

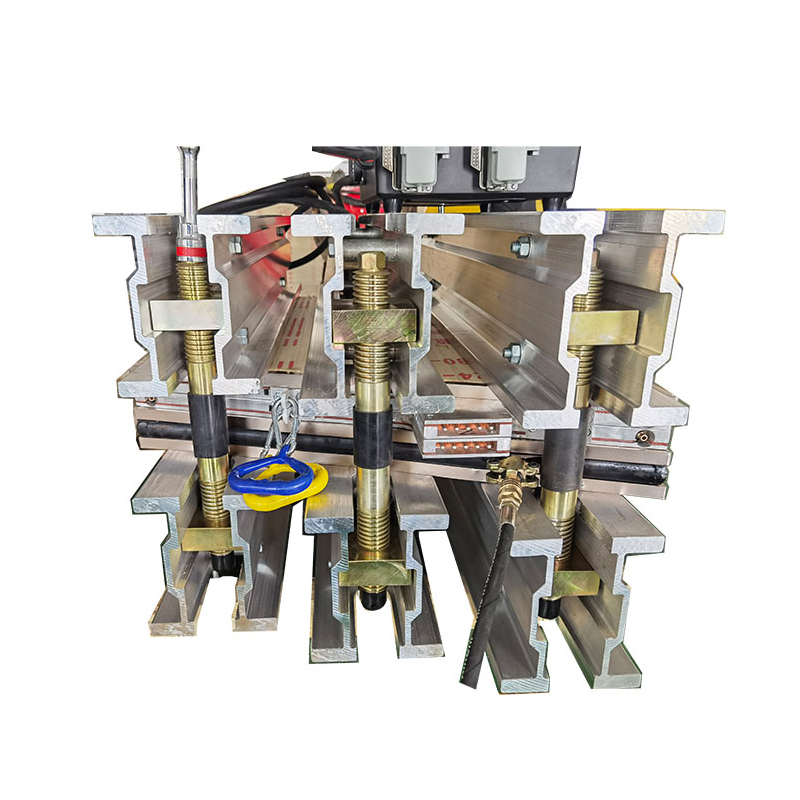

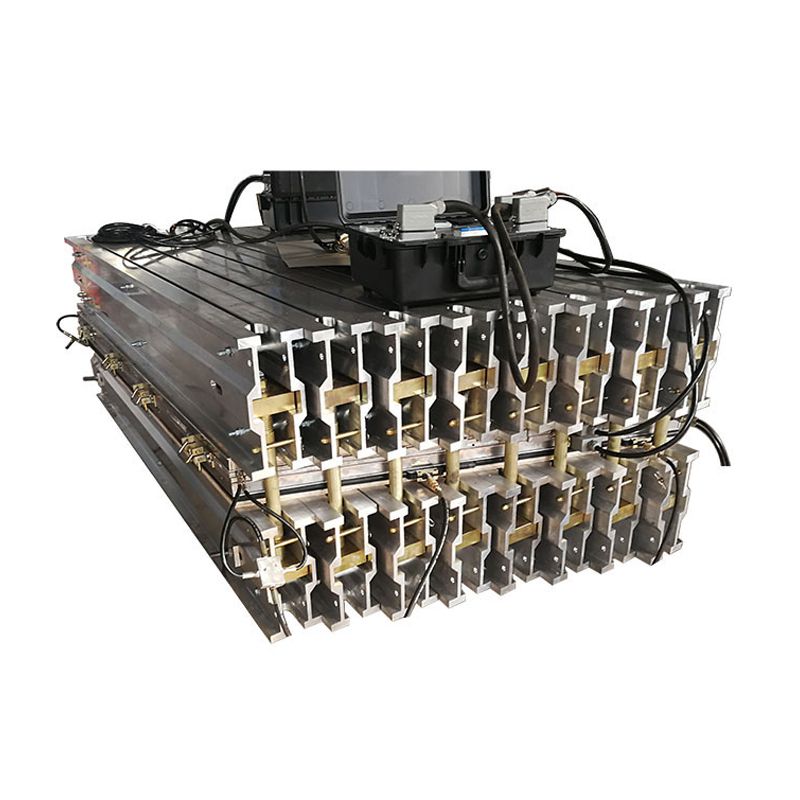

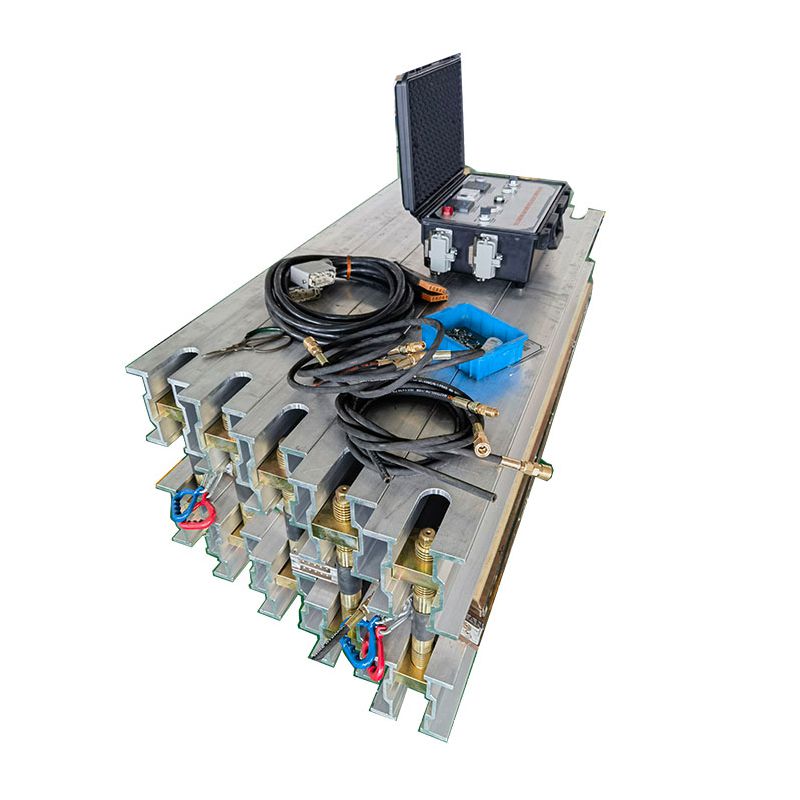

The machine mainly consist of beam group up and down, heating platen up and down, water bag, wooden board, tiebars, electric pump, hoses, control box, and cable wire.


-Package included

We use fumigation free wood (ply wood)box to pack the machine for small size machines, but for big size machines or multi sets small size machines, we’ll use container to load them.



-Accessories or Parts

Temperature sensor


Certifications

CE

CE

CE

CE

CE

CE

CE

CE

CE

CE

CE

CE

Manufacturing Process

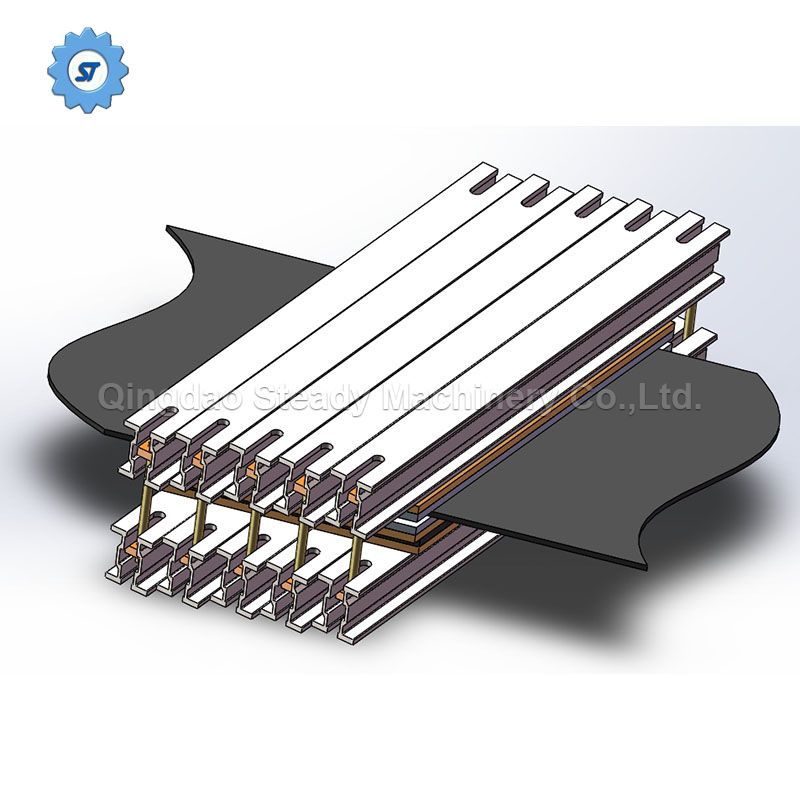

1. SW 3D design, and do finite element strength analysis.

2. Cast the oil cylinder and piston, cut steel for other parts raw material.

3. Installation, connect oil tank and control box to the machine.

4. Test the machine.

5. Packing and delivery.


Our Factory

Rubber Conveyor Belt Joint Machine


Export Cases

Our machine widely exported to America, Canada, Brazil,

Russia, Belarus,Ukraine,  Poland, Slovakia, Uzbekistan,Romania, Macedonia, Czekh,

Turkmenistan, Serbia,Belgium

Thailand, Vietnam, Iran, India, Indonesia, Malaysia,Pakistan, Myanmar,  Iraq,Israel

Egypt, Morocco, South Africa, Nigeria, Zimbabwe,Senegal,

Australia

Q: Will your machine meet our voltage?

Yes, we can customize every aspect of the machine according to customers'work needs, Voltage, Electricity frequency, clamping force, (heating )platen size, daylight, piston travel, working layer number, with sliding platen or not, assist cylinder, Control method, automatization level, PLC or not, etc.

Q: Guarantee?

For the whole machine, not less than 2 years quality guarantee, and life long technical service whenever it's needed.

Q: Will the machine be kept well while on the sea journey?

Yes, for small size or single set machine, we use good quality fumigation free ply wood making strong packing for them.
For big size machine or multi sets small size machine, after proper treatment, we fixed them in the container so that the machine won't get rust or damage in the sea voyage.
