Qingdao Steady Machinery Co.,Ltd is a professional heating platen conveyor belt vulcanizer maker.
We have confidence to be one of top rubber conveyor belt joint machine maker in technology, in raw material using, and in our processing and machining work, we have more than twenty years experience in rubber conveyor belt joint machine making.
Qingdao Steady Machinery Co.,Ltd is a professional rubber belt joint machine maker.
We have confidence to be one of top rubber press machine maker in technology, in raw material using, and in our processing and machining work, we have more than twenty years experience in rubber vulcanizing press machine making.
Advantages
-Primary Advantages
Our rubber conveyor belt joint machine’s main advantage is strong, durable and sturdy, while light weight, easy handle, easy operation. The machine’s body adopts aluminium alloy profiles. And our water bag strength is as high as conveyor belt and with good sealing effect.
Our heating platen, the temperature is even, and long service life.
Our rubber belt joint machine’s control box is compact structure, easy use, work sensitively, safely, and reliably.
-Why should I buy rubber belt joint machine?
-What makes this product different to (insert competitor products here)?
Good quality and high strength makes our rubber belt joint machine different to those competitors'.
While many other suppliers just use low quality steel and bottom standard (even not enough) strength.
Main Functions
Rubber belt joint press machine is widely used in rubber conveyor belt joint industry.
-Key Features
The main features of our rubber belt joint machine is strong enough, trouble free in working and long service life.
-What is the purpose of the rubber belt joint machine?
The purpose of rubber belt joint machine is for connecting or repairing rubber conveyor belt.
-What benefits will you get from rubber belt joint machine?
Our rubber belt joint press machine is used to make high quality high efficiency joint of rubber conveyor belt.
Use
-Where can rubber belt joint machine be used?
Rubber belt joint machine widely used in coal mine, copper mine, ore factory, port terminals, food industry, chemical industry, textile industry, any working spot where use rubber conveyor belt for transportation.
| Model | Belt width(mm) | Splicing dimension | Hot Plate Size (mm) | Power(KW) | Machine Size(cm) | Machine Weight(kg) |
| ST-650 | 650 | 650*830 | 850x830 | 10.5 | 150x90x63 | 500 |
| 650*1000 | 850x1000 | 12.75 | 150x107x63 | 596 | ||
| ST-800 | 800 | 800*830 | 1010x830 | 12.6 | 166x90x63 | 560 |
| 800*1000 | 1010x1000 | 15.2 | 166x107x63 | 650 | ||
| ST-1000 | 1000 | 1000*830 | 1220x830 | 12.5 | 187x90x63 | 618 |
| 1000*1000 | 1220x1000 | 18.3 | 187x107x63 | 722 | ||
| ST-1200 | 1200 | 1200*830 | 1430x830 | 17.8 | 208x90x63 | 800 |
| 1200*1000 | 1430x1000 | 21.5 | 208x107x63 | 912 | ||
| ST-1400 | 1400 | 1400*830 | 1640x830 | 17.4 | 205x90x73 | 885 |
| 1400*1000 | 1640x1000 | 21 | 205x107x73 | 1050 | ||
| ST-1600 | 1600 | 1600*830 | 1850x830 | 23 | 225x90x73 | 1130 |
| 1600*1000 | 1850x1000 | 27.8 | 225x107x73 | 1325 | ||
| ST-1800 | 1800 | 1800*830 | 2060x830 | 25.6 | 271x90x73 | 1420 |
| 1800*1000 | 2060x1000 | 31 | 271x107x73 | 1630 | ||
| ST-2000 | 2000 | 2000*830 | 2270x830 | 27.4 | 2.92x90x77 | 1560 |
| 2000*1000 | 2270x1000 | 34 | 2.92x107x77 | 1824 | ||
| ST-2200 | 2200 | 2200*830 | 2480x830 | 31 | 313x90x77 | 1720 |
| 2200*1000 | 2480x1000 | 37.2 | 313x107x77 | 2030 | ||
| ST-2400 | 2400 | 2400*830 | 2690x830 | 33.5 | 334x90x77 | 1874 |
| 2400*1000 | 2690x1000 | 40 | 334x107x77 | 2220 | ||
| ST-2600 | 2600 | 2600*830 | 2900x830 | 36 | 355x90x77 | 1986 |
| 2600*1000 | 2900x1000 | 43.5 | 355x107x77 | 2355 | ||
| ST-2800 | 2800 | 2800*830 | 3110x830 | 38.7 | 3200*820*1140 | 2093 |
| 2800*1000 | 3110x1000 | 46 | 375x107x77 | 2480 | ||
| ST-3000 | 3000 | 3000*830 | 3322x830 | 41 | 397x90x77 | 2210 |
| 3000*1000 | 3322x1000 | 50 | 397x107x77 | 2624 |
Customers can choose machine from above form, or just tell you their detail requirement, so we can customize rubber belt joint machine for them.
How to use
The machine’s use procedure is: peel the old rubber belt, grinding, then put the joint part on the machine’s bottom heating platen, put new raw rubber, core rubber,brush adhesive paste, cover rubber, then put the up heating platen, heat insulation wood board, the put up beam on one by one, mount the tiebar, use spanner do some tight work, then use electric pump to add the machine to work pressure, vulcanizing timing,when get to the set time, the machine will auto alarm, then cooling the heating platen by water pump, the final is discharge and take the finished rubber belt out.
Components

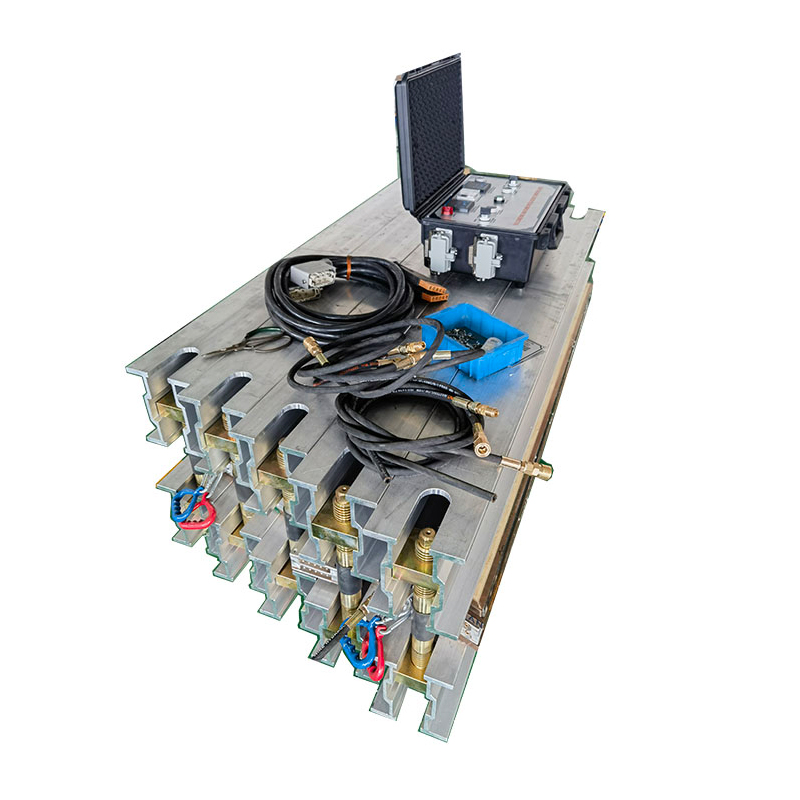

The machine mainly consist of beam group up and down, heating platen up and down, water bag, wooden board, tiebars, electric pump, hoses, control box, and cable wire.
-Package included
We use fumigation free wood (ply wood）box to pack the machine for small size machines, but for big size machines or multi sets small size machines, we’ll use container to load them.
-Accessories or Parts
Temperature sensor
Certifications
CE
CE
CE
CE
CE
CE
Manufacturing Process
1. SW 3D design, and do finite element strength analysis.
2. Cast the oil cylinder and piston, cut steel for other parts raw material.
3. Installation, connect oil tank and control box to the machine.
4. Test the machine.
5. Packing and delivery.
Our Factory
Export Cases
Our machine widely exported to America, Canada, Brazil,
Russia, Belarus,Ukraine, Poland, Slovakia, Uzbekistan,Romania, Macedonia, Czekh,
Turkmenistan, Serbia,Belgium
Thailand, Vietnam, Iran, India, Indonesia, Malaysia,Pakistan, Myanmar, Iraq,Israel
Egypt, Morocco, South Africa, Nigeria, Zimbabwe,Senegal,
Australia
Q: Will your machine meet our voltage?
Q: Guarantee?
Q: Will the machine be kept well while on the sea journey?
Customer reviews
-Testimonials
Your machines' quality is really, they are running excellent.
Thank you so much for your nice service.
When compare to others suppliers, your delivery time is really short.
The quality is really good.
Very professional and worry free for the whole import process.
Your machine's really really and durable in use.
Our Service
-Our Policy
Our policy is quality always first. Most highest cost performance machine plus professional, patient and meticulous service.
Payment Method
-What payment method do we have?
Payment method is by TT or LC.
