Home > Products > Rubber Autoclave > Electric Heating Rubber Vulcanizing Tank > PLC Control Electric Heating Rubber Products Curing Can Autoclave

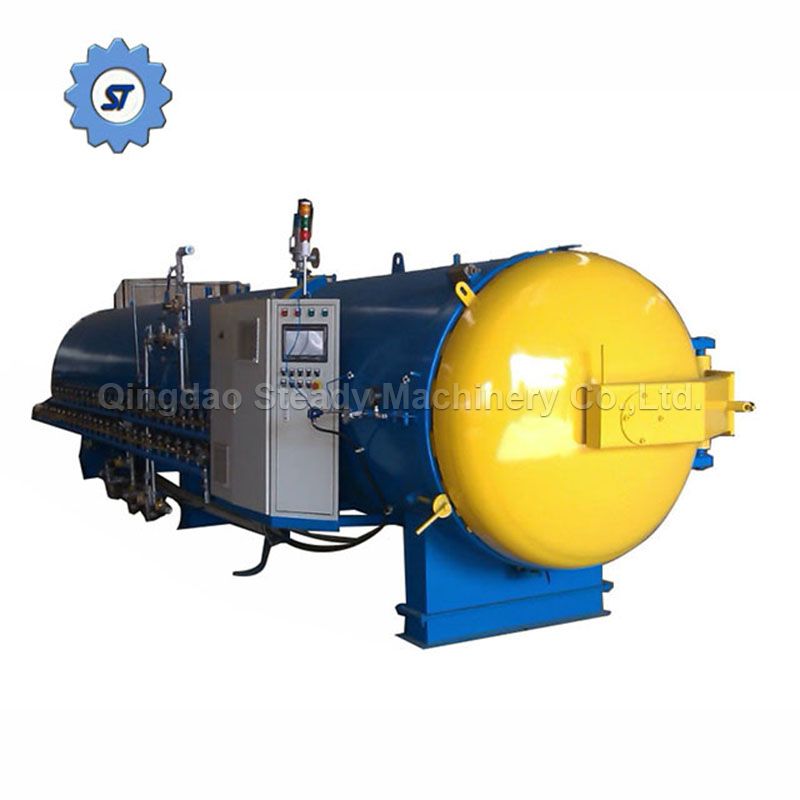

PLC Control Electric Heating Rubber Products Curing Can Autoclave is an essential equipment for vulcanizing rubber products, widely used in industries such as rubber, cables, printing and dyeing, chemical, building materials, etc. It is mainly used for vulcanization of tires, V-belts, synchronous belts, rubber pipes, irregular rubber pipes, sealing rings, cables, rubber shoes, rubber rollers, and other rubber products.
According to the structural form of the vulcanization tank, it can be divided into direct heating vulcanization tank and indirect heating vulcanization tank. Direct heating vulcanization tank can be divided into steam heating vulcanization tank, vertical vulcanization tank, electric steam vulcanization tank, etc
The design pressure of a horizontal vulcanization tank is generally 0.85Mpa, which belongs to the low-pressure category of containers and has a cylindrical structure. It is composed of a tank body, tank cover, switch, heating device, interlocking device, insulation layer, fan, temperature measurement device, etc.
The steam heating vulcanization tank introduces steam into the vulcanization tank to vulcanize the rubber products inside the tank. The advantages of direct vulcanization are high efficiency, easy temperature control, uniform temperature distribution everywhere, and high production efficiency.

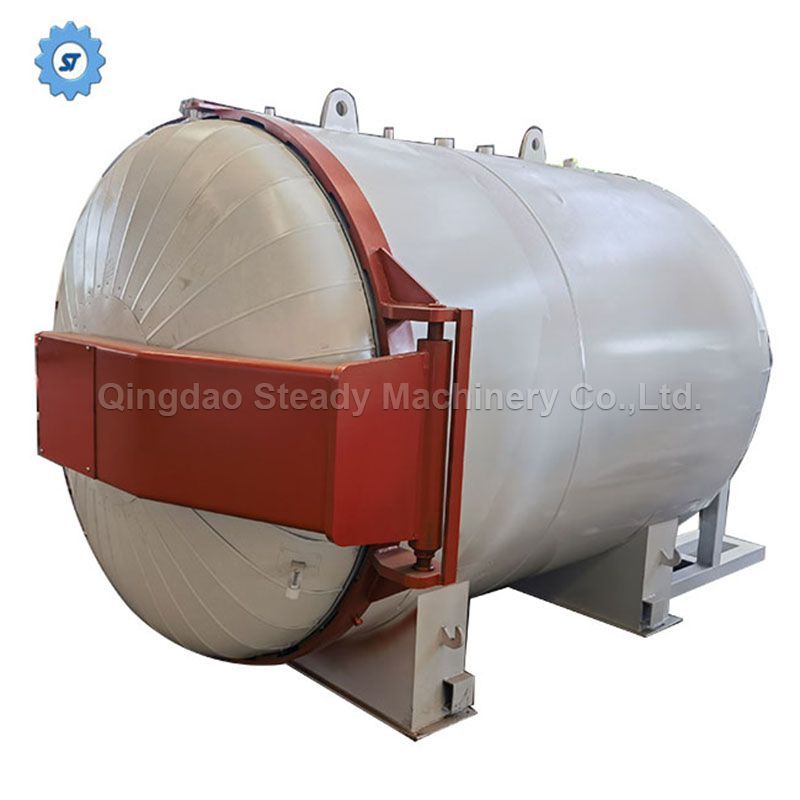

Insulation layer of vulcanization tank: using aluminum silicate insulation rock wool, and using front and rear heads for insulation, the insulation effect is good.
Tank mouth sealing ring: Adopting a sealed rubber sealing ring, it has the effect of isolating the internal and external air, and has a long service life.

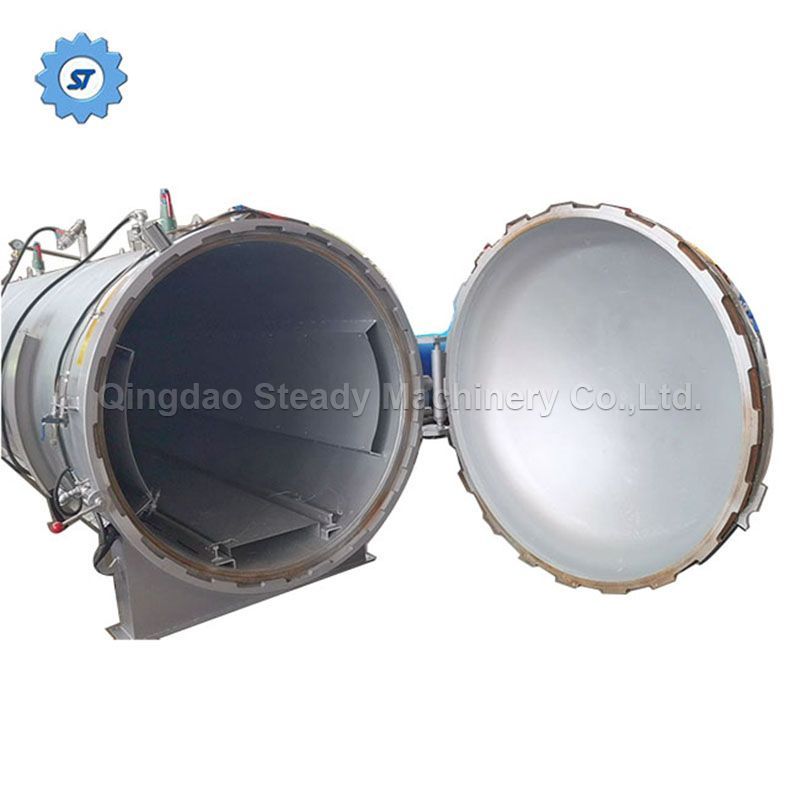

Tank mouth: There are two types of staggered tooth type can mouth structures: fixed toothed ring and rotating toothed ring. The fixed toothed ring can mouth is locked by the rotation of the can cover. The rotating toothed ring can mouth, the can cover cannot rotate, and it is locked by the rotation of the toothed ring. The toothed ring is composed of two semi-circular rings, which are connected together by bolts.
Air circulation device: The air circulation device inside the vulcanization tank can improve the heat exchange effect and also make the temperature of each part of the tank uniform, thereby improving product quality. The air circulation device is composed of a fan and an air duct.
We can make any size vulcanizing tank accoring to your work needs.
Please just contact us tell us your work needs and size requirement.
Often use models
If you have other size requirement, please feel free to contact us. We can tailor make any size according to clients' work needs.
Tank Body
We use high quality Q345R steel, Q345R is a low alloy high-strength structural steel commonly used in the production of pressure vessels. Its characteristics include high strength and good toughness, suitable for multiple industries such as petroleum, chemical, power plants, etc. Specifically, Q345R steel plate is widely used in the production of reactors, heat exchangers, separators, air ducts, liquefied gas tanks, boiler gas drums, and liquefied petroleum gas cylinders due to its specific chemical composition and mechanical properties. Compared to Q345, Q345R has higher requirements for tensile strength and elongation to ensure its stability and safety during use.

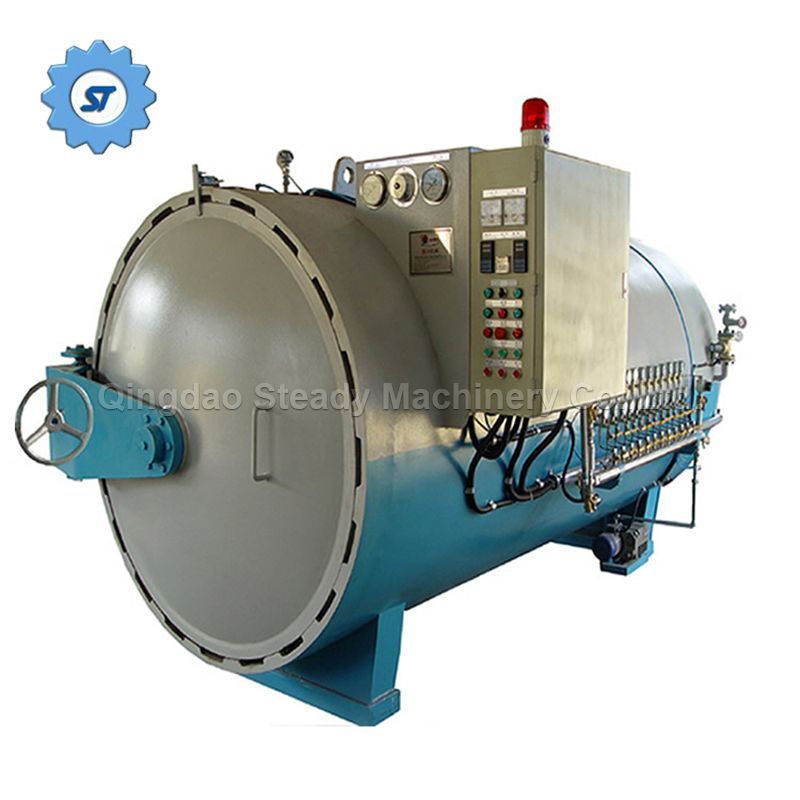

Control Box
We use famous brand electronics, ensure our rubber vulcanizing tank works accurate and stable.
If customers' country has different power supply, we'll add transformer into the control box.

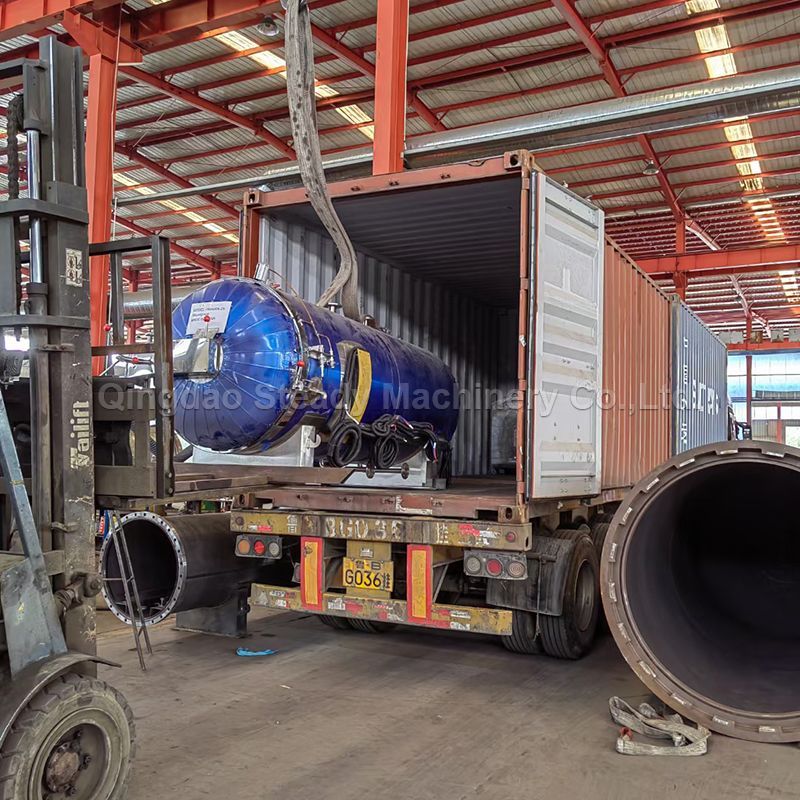

Loading Container
Ø1. Will your machine meet our voltage， can we use your machine in our country?
Yes, we can customize every aspect of the machine according to customers’ work needs, Voltage,
Electricity frequency, clamping force, (heating )platen size, daylight, piston travel, working layer number, with sliding platen or not, assist cylinder, Control method, automatization level, PLC or not, etc,
Ø 2. Guarantee?
For the whole machine, not less than 2 years quality guarantee, and life long technical service whenever it’s needed.
Ø 3. Will the machine be kept well while on the sea journey?
Yes, for small size or single set machine, we use good quality fumigation free ply wood making strong packing for them.
For big size machine or multi sets small size machine, after proper treatment, we fixed them in the container so that the machine won’t get rust or damage in the sea voyage.
Ø 4. Whats’ the payment method?
There are TT, L/C, Credit Card, Western Union, Paypal, Alipay etc.
Ø5. What’s the shipping method?
Our rubber machines are most often shipped by sea, but for land-locked state, there are train or truck transportation. Or there are joint transportation between land and water.
When it come to small pare parts, it’s by international courier by air.
Look forward to hearing from you
Welcome friends and customers domestic and abroad to cooperate sincerely and create brilliance together!
