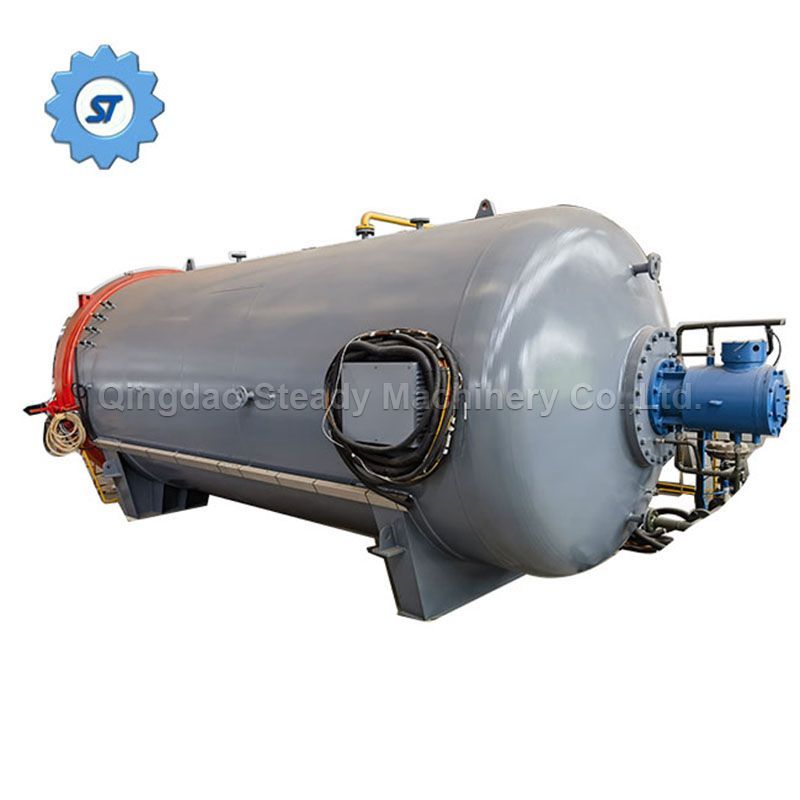

Carbon Fiber Composite Materials Hot Press Can Pot Tank

Share:

Hot press tank is a key terminal equipment for the manufacturing of carbon fiber and composite materials, consisting of a pressure tank body, heating system, pressure system, vacuum system, control system, circulation system, cooling system, etc. Its working principle is to lay reinforcement materials and resins (including pre soaked materials) such as high and light glass fiber, carbon fiber, boron fiber, aramid fiber, etc. layer by layer on the mold according to the design direction and order. After reaching the specified thickness, it is placed in a vacuum bag for vacuum pumping. After pressurization, heating, solidification, cooling, demolding, and trimming, high-performance is achieved.

The application fields of hot press cans are quite extensive

1. In the aerospace industry:

Aircraft wings, skin, front fuselage; Large launch vehicle shells, fairings; Space shuttle structural components, carbon ceramic products, etc

2. In the field of weapons industry:

Components such as protective armor, weapons, helmets, etc

3. In the field of electronic industry:

Satellite antenna, solar panel wings, and casing

4. Automotive modification field

Front hood, bumper, wheel hub, reflector, etc

5. In the field of rail transit

High speed rail and subway trains, including front ends, doors and windows, floors, etc

6. Sports field:

Carbon fiber rackets, clubs, baseball bats, sports insoles, etc

7. Medical field:

The structure and orthopedic support of X-ray machines and CT machines


Technical indicators of hot press tank

Hot press cans are equipment used for high-temperature and high-pressure processing, usually used in industries such as food, chemical, and pharmaceutical. Hot press cans have functions of insulation, pressure retention, and temperature uniformity, which can effectively maintain temperature and pressure stability during the processing, thereby achieving efficient processing and quality assurance of products. Below is a 2000 word report on the technical indicators of hot press cans. Firstly, the basic parameters of hot press cans

Hot press tanks usually include main components such as tank body, heating system, control system, and pressure holding system. Its basic parameters include tank material, heating method, temperature range, pressure range, control method, etc.

1. Tank material

The tank body of a hot press tank is usually made of stainless steel, carbon steel, or other special alloy materials to ensure its high temperature resistance, corrosion resistance, good sealing and other characteristics, thus meeting different processing needs.

2. Heating method

The heating methods of hot press tanks usually include steam heating, electric heating, thermal oil heating, etc. Different heating methods can be selected according to the process characteristics and processing requirements of the product.

3. Temperature range

The temperature range of the hot press tank is usually between 0 ℃ and 300 ℃, which can be adjusted according to the needs of the product

4. Pressure range

The pressure range of the hot press tank is usually between 0.1MPa and 3.0MPa, which can be adjusted according to the process requirements of the product.

5. Control method

The control methods of hot press tanks usually include manual control, semi-automatic control, fully automatic control, etc., to meet different operational requirements.

2、 Performance indicators of hot press tanks

The performance indicators of a hot press can are important parameters that reflect its processing effect and quality, mainly including pressure retention performance, temperature uniformity performance, insulation performance, sealing performance, etc. 1. Pressure retention performance

The pressure holding performance of a hot press can refers to its ability to maintain a stable processing pressure within a certain pressure range, ensuring the processing quality of the product.

2. Average temperature performance

The average temperature performance of a hot press can refers to its ability to maintain a stable processing temperature throughout the entire processing process, ensuring uniform heating and sufficient sterilization of the product.

3. Thermal insulation performance

The insulation performance of a hot press can refers to its ability to effectively reduce heat loss during the processing, ensuring product processing efficiency and energy conservation and environmental protection. 4. Sealing performance

The sealing performance of a hot press can refers to its ability to maintain good sealing, avoiding contamination and damage to the product during processing.


Often use models

Electric Heating Rubber Hose Pipe Sheet Profile Strip Vulcanizing Tank Machine

If you have other size requirement, please feel free to contact us. We can tailor make any size according to clients' work needs.

Carbon Fiber Composite Materials Hot Press Can Pot Tank


Carbon Fiber Composite Materials Hot Press Can Pot Tank

Carbon Fiber Composite Materials Hot Press Can Pot Tank

Carbon Fiber Composite Materials Hot Press Can Pot Tank

Carbon Fiber Composite Materials Hot Press Can Pot Tank

Hot Press Tank Application Field

Carbon Fiber Composite Materials Hot Press Can Pot Tank

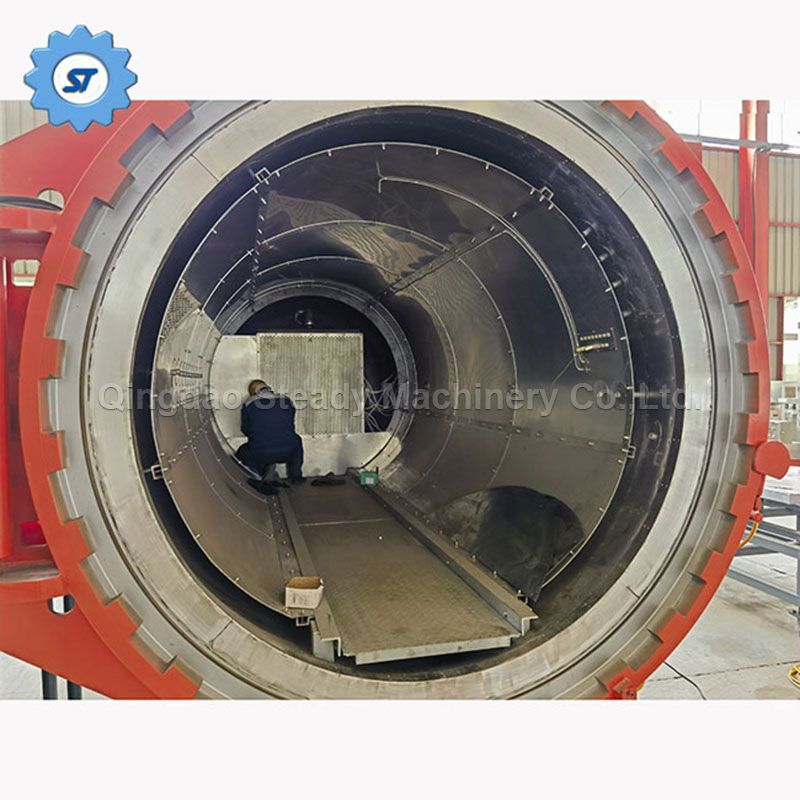

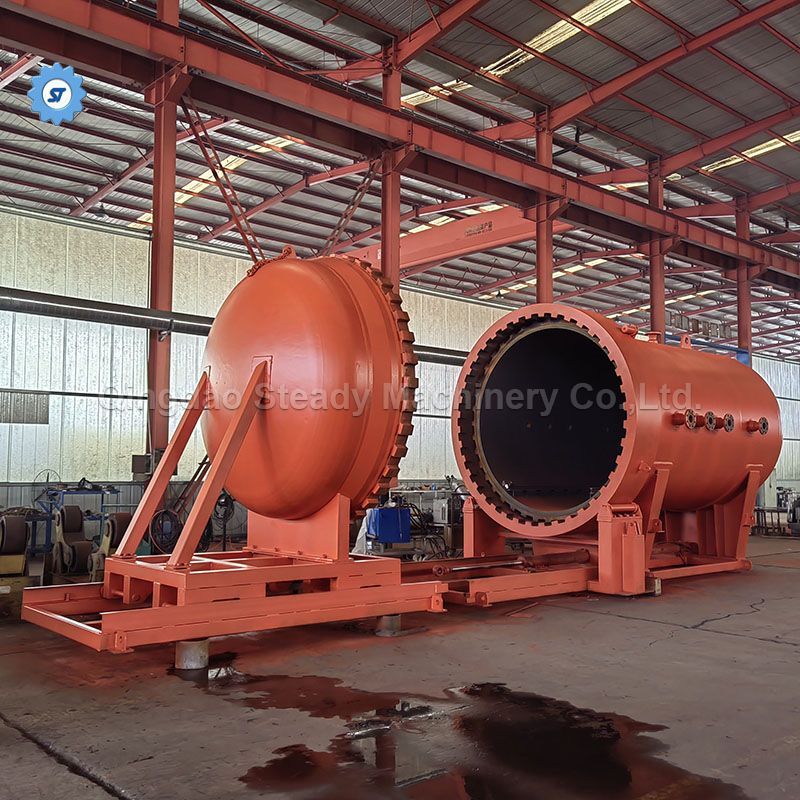

Tank Body

The tank body of a hot press tank is usually made of stainless steel, carbon steel, or other special alloy materials to ensure its high temperature resistance, corrosion resistance, good sealing and other characteristics, thus meeting different processing needs.

Electric Heating Rubber Hose Pipe Sheet Profile Strip Vulcanizing Tank Machine

Carbon Fiber Composite Materials Hot Press Can Pot Tank

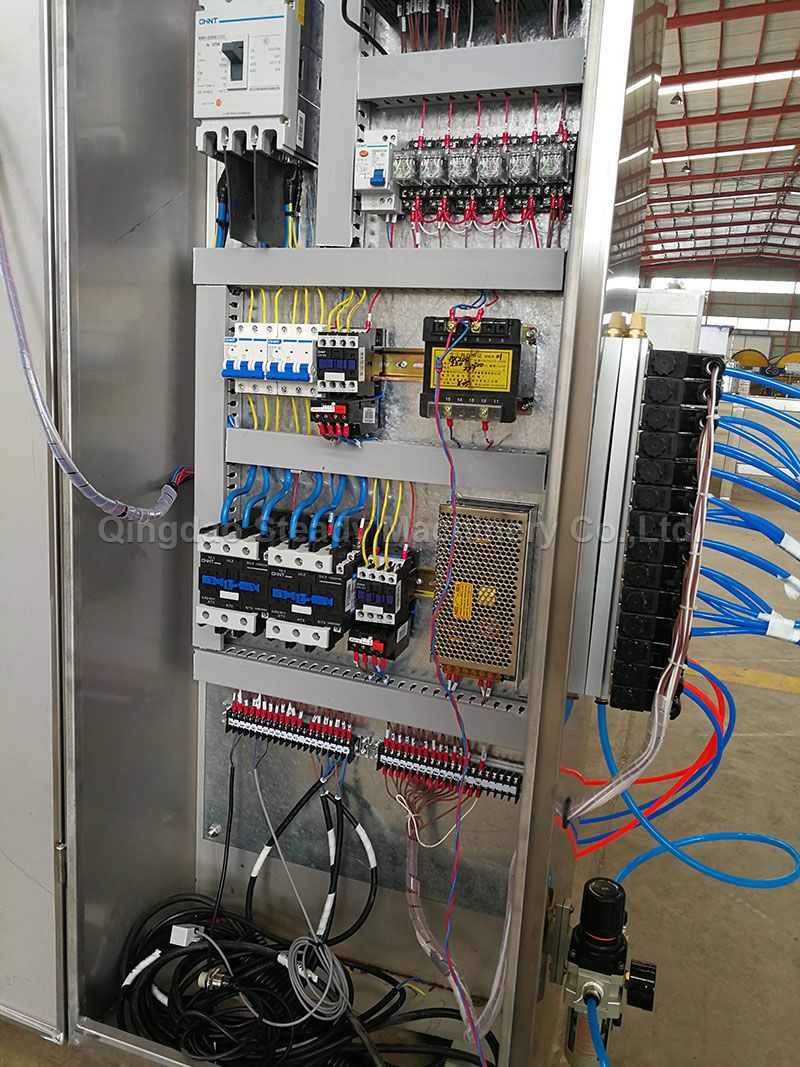

Control Box

We use famous brand electronics, ensure our rubber vulcanizing tank works accurate and stable.

When customers' country has different power supply, we'll add transfer into the control box as below picture show.

Carbon Fiber Composite Materials Hot Press Can Pot Tank

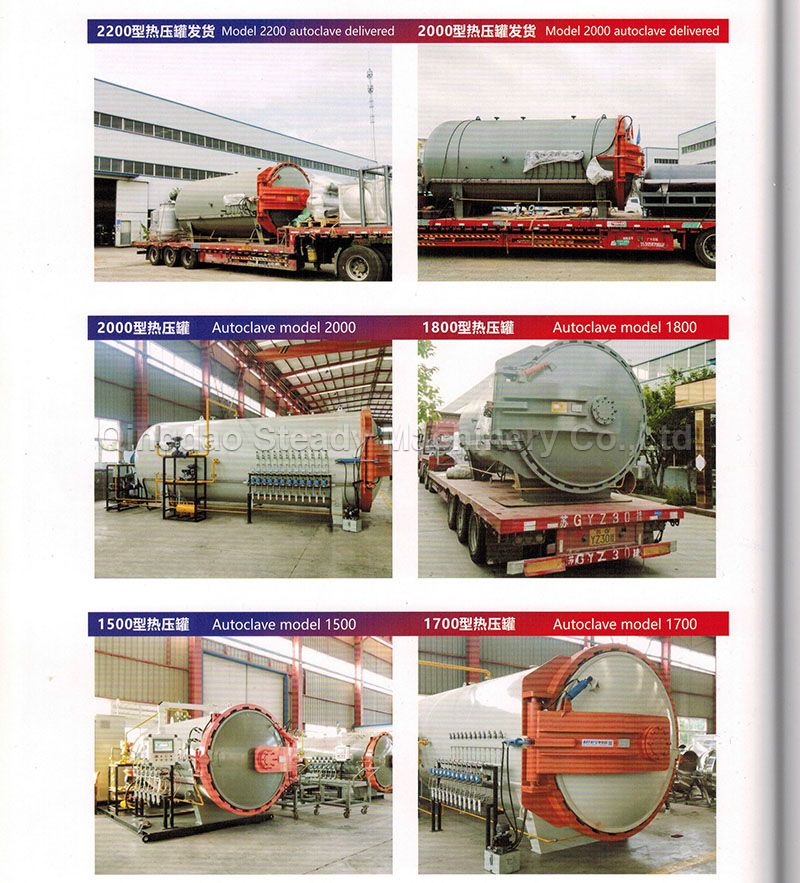

Loading Container

Electric Heating Rubber Hose Pipe Sheet Profile Strip Vulcanizing Tank Machine

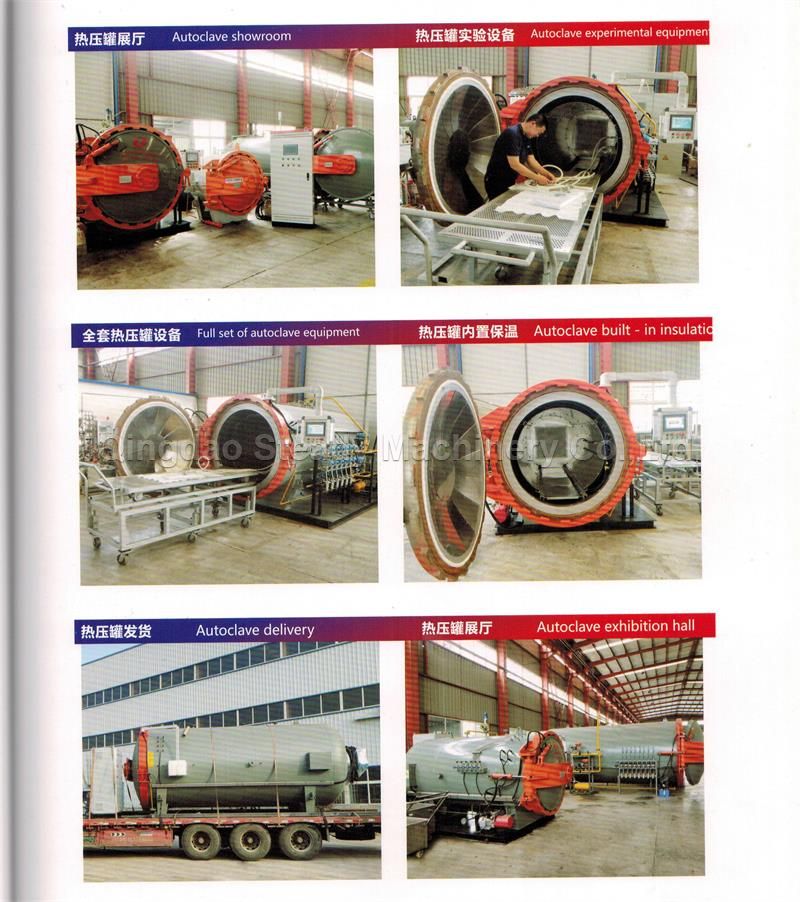

Project Pictures:

Carbon Fiber Composite Materials Hot Press Can Pot Tank

Carbon Fiber Composite Materials Hot Press Can Pot Tank

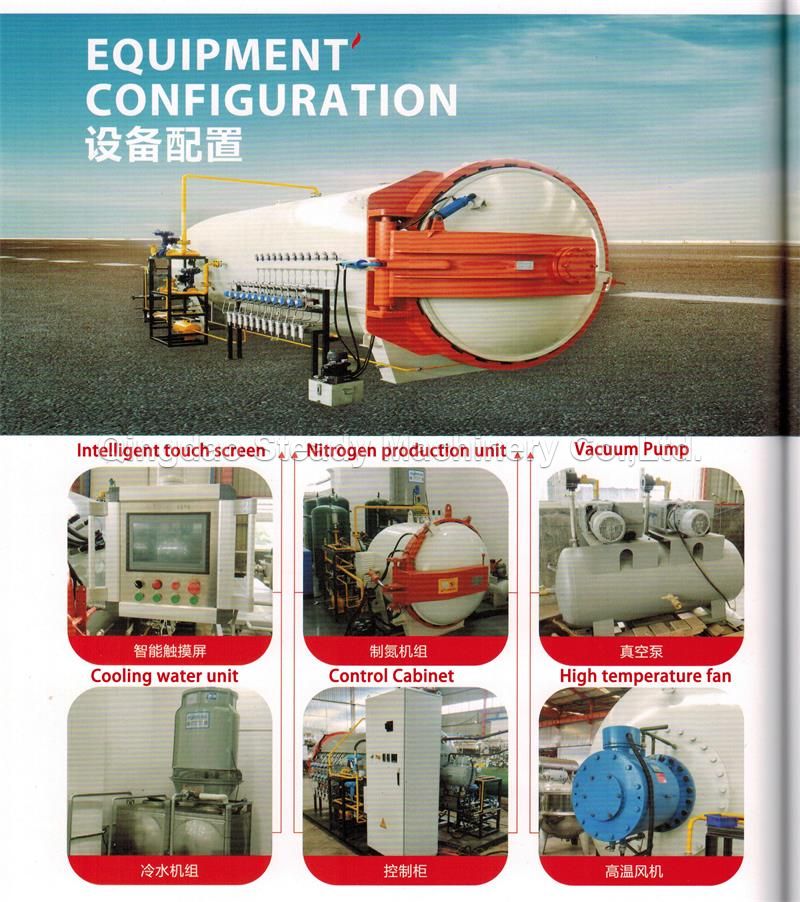

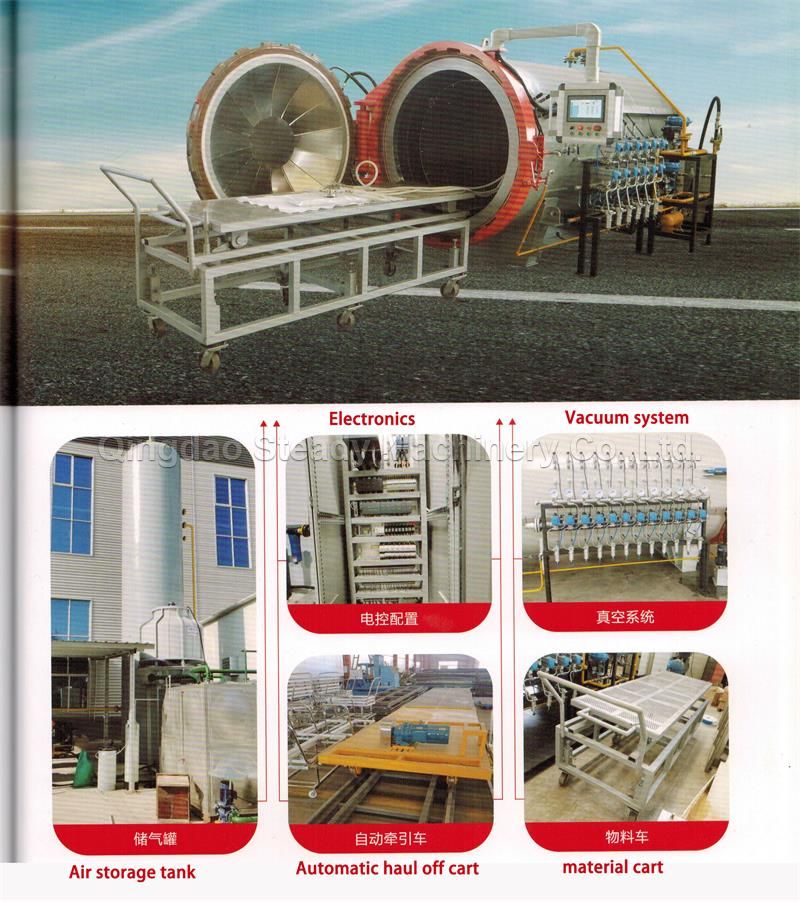

Hot Press Tank/Pot Configuration (auxiliary equipments)

Carbon Fiber Composite Materials Hot Press Can Pot Tank

Carbon Fiber Composite Materials Hot Press Can Pot Tank


Ø1. Will your machine meet our voltage, can we use your machine in our country?

   Yes, we can customize every aspect of the machine according to customers’ work needs, Voltage,

   Electricity frequency, clamping force, (heating )platen size, daylight, piston travel, working layer number, with sliding platen or not, assist cylinder, Control method, automatization     level, PLC or not, etc,


Ø 2. Guarantee?

   For the whole machine, not less than 2 years quality guarantee, and life long technical service whenever it’s needed.


Ø 3. Will the machine be kept well while on the sea journey?

   Yes, for small size or single set machine, we use good quality fumigation free ply wood making strong packing for them.

   For big size machine or multi sets small size machine, after proper treatment, we fixed them in the container so that the machine won’t get rust or damage in the sea voyage.


Ø 4. Whats’ the payment method?

   There are TT, L/C, Credit Card, Western Union, Paypal, Alipay etc.



Ø5. What’s the shipping method?

   Our rubber machines are most often shipped by sea, but for land-locked state, there are train or truck transportation. Or there are joint transportation between land and water.

   When it come to small pare parts, it’s by international courier by air.
