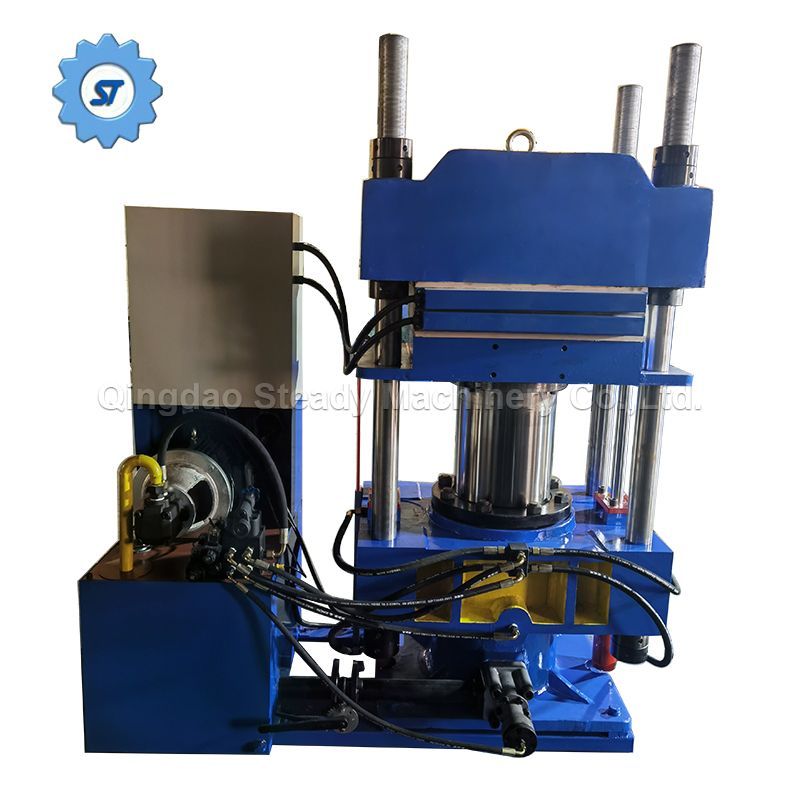

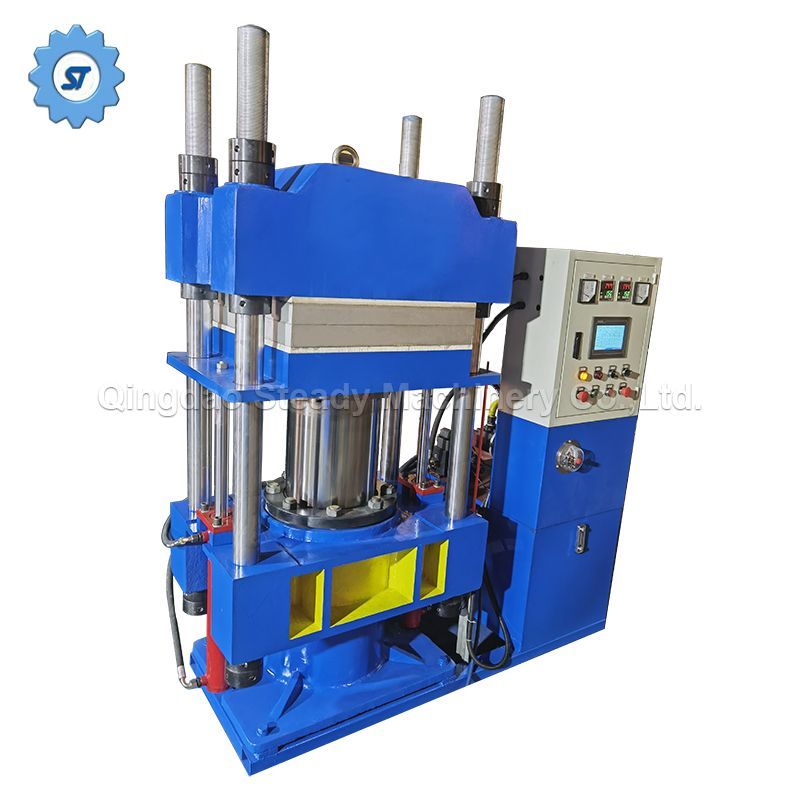

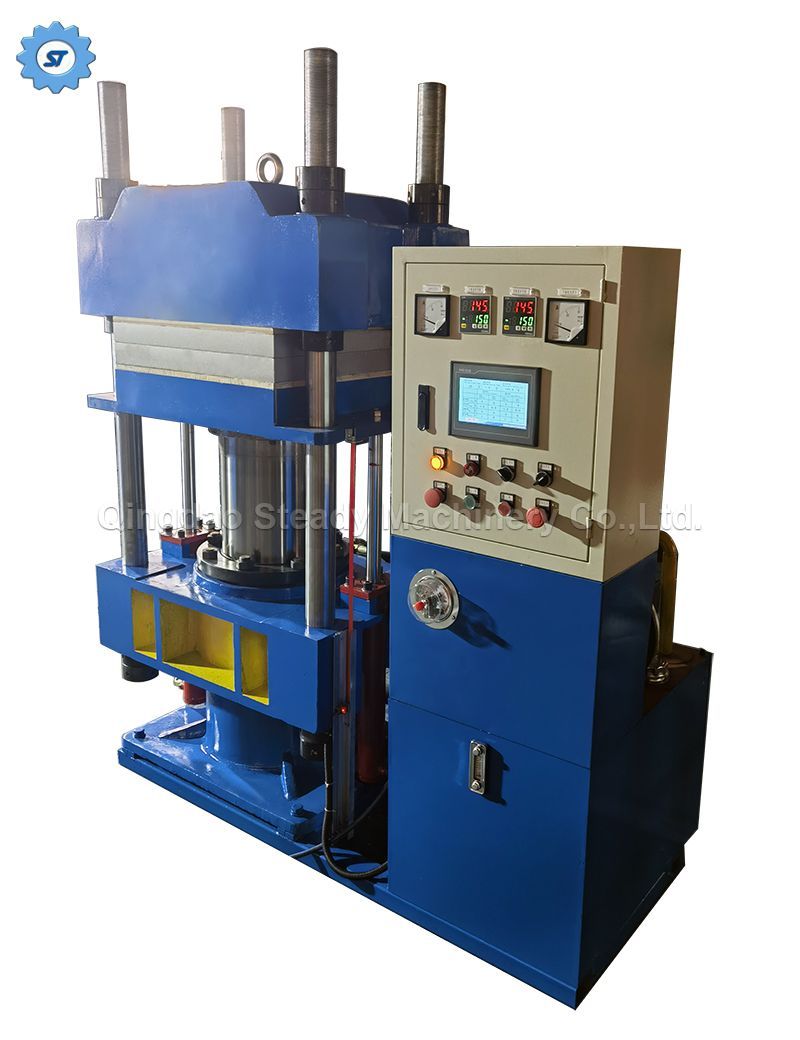

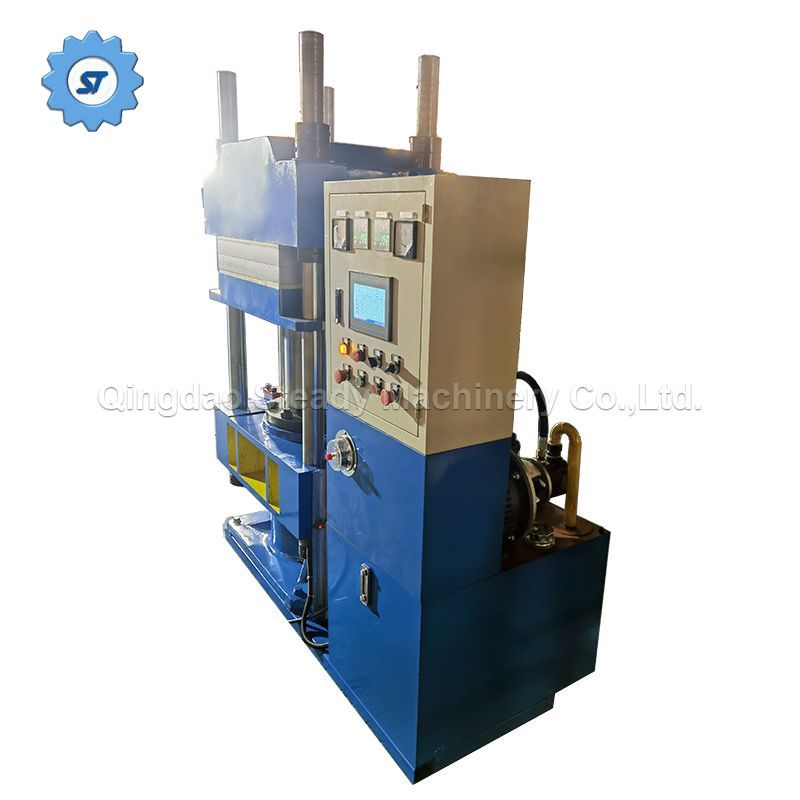

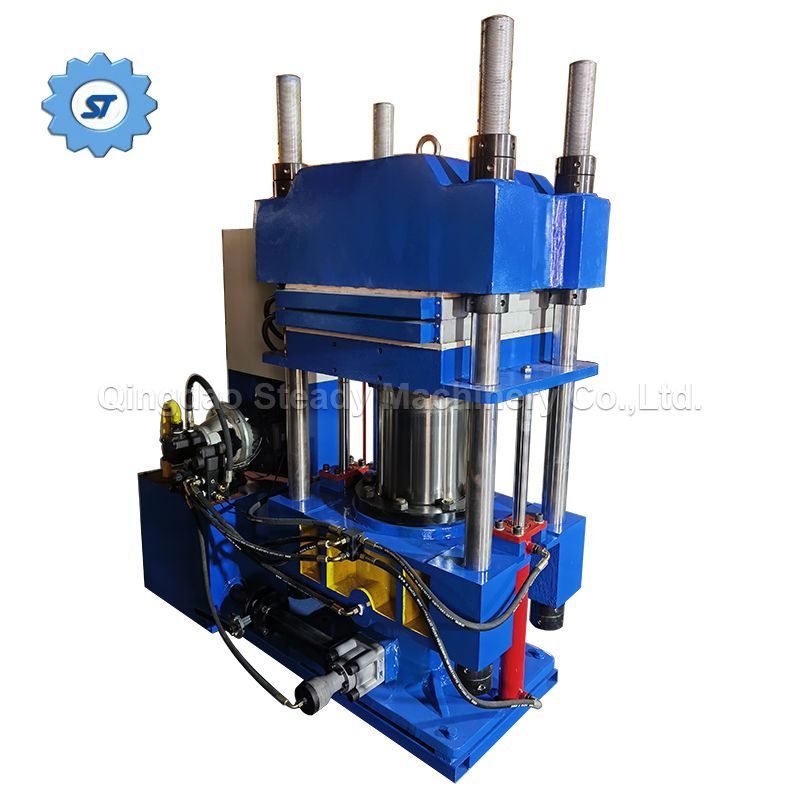

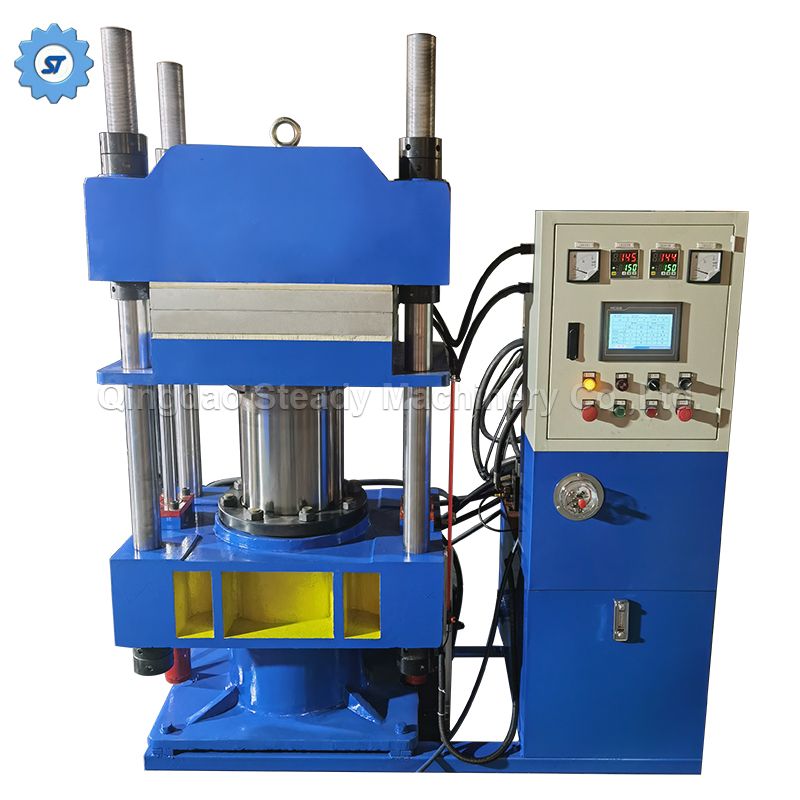

Working Height Adjustable Rubber Vulcanizer Machine

Share:

Working Height Adjustable Rubber Vulcanizer Machine is an important equipment widely used in modern industrial production. It is not only widely used in automobile manufacturing, electronics industry, construction industry, and medical industry, but also plays an important role in other fields. With the continuous development and progress of technology, the performance and efficiency of vulcanization machines are also constantly improving, and they will play a more important role in future industrial production.

The vulcanizer machine is one of the key equipment in rubber production, and its control system directly affects the vulcanization efficiency and quality of rubber products The application of PLC in the vulcanization machine control system has significantly improved the automation level of the vulcanization machine. Its operation is relatively stable and its functions are more reliable. At the same time, it can further improve the vulcanization process, greatly improving the vulcanization production efficiency and quality of rubber.

The installation of PLC can achieve vulcanizing press automatic mold closing, automatic exhaust, automatic mold opening, automatic pushing and pulling, automatic lifting of the upper mold, and other actions.



Vulcanizing machine is an important equipment used in the production of rubber products. Its main function is to heat uncured rubber products, allowing them to react with vulcanizing agents at high temperatures, thereby forming finished products with elasticity and wear resistance. Vulcanizing machines are widely used in fields such as automobiles, electronics, construction, and healthcare, and are one of the indispensable key equipment in modern industrial production.

1、 Automobile manufacturing

The vulcanization machine plays an important role in the automotive manufacturing process. For example, in the tire manufacturing process, the tire needs to be heated by a vulcanization machine to have good elasticity and wear resistance. In addition, in the production process of automotive components, such as rubber seals, pipelines, etc., they also need to be processed through vulcanization machines.

2、 Electronic industry

In the electronics industry, vulcanization machines are mainly used to produce products such as wires and cables. These products require heating treatment to achieve the required physical and chemical properties. Due to its high efficiency and stability, vulcanization machines have been widely used in the electronic industry.

3、 Construction industry

In the construction industry, vulcanization machines are mainly used to produce various sealing materials, waterproof materials, etc. These materials need to have good durability and wear resistance, and vulcanization machines can make them meet these requirements. In addition, in the construction industry, vulcanization machines can also be used to produce products such as rubber floor mats and rubber tiles.

4、 Medical industry

In the medical industry, vulcanization machines are mainly used to produce medical rubber products, such as gloves, infusion tubes, etc. These products need to have good elasticity and corrosion resistance, and vulcanization machines can meet these requirements.

5、 Other fields

In addition to the above-mentioned fields, vulcanization machines can also be applied in other fields. For example, in the textile industry, vulcanization machines can be used to produce elastic fibers; In the process of toy manufacturing, vulcanization machines can be used to produce rubber toys, etc.


Below are some often use models for column type rubber vulcanizing press machine

Model300*300*2350*350*2400*400*2500*500*2600*600*2750*850*2600*600*2
Nominal Mold
Clamping Force(MN)
0.250.250.50.811.62
Heating Platen Size(mm)300*300350*350400*400500*500600*600750*850600*600
Working Layer2222222
Piston Diameter(mm)ø150ø150ø200ø250ø300ø360ø400
Piston Stroke(mm)250250250250250500300
Daylight/
Platen Spacing(mm)
125125125125125250150
Unit Area Pressure(Mpa)2.782.13.13.22.782.55.6
Main Motor Power(KW)22.22.22.22.23.0 3.0
Dimension(L×W×H)mm1500*400*13501500*400*13501800*500*16001800*550*17002000*700*17002000*1000*19002550*960*2100
Weight(KG)950100015002000260043005000
Mold Closing Speed(mm/s)≥12≥12≥12≥12≥12≥12≥12
Mold Opening Speed(mm/s)≥12≥12≥12≥12≥12≥12≥12


We can tailor make machine according to customers' technical requirements or special work needs.

Just feel free to contact us.  We'll make a best proposal with most reasonable price.


Some rubber products pictures for reference:

manual open operation rubber vulcanizing press machine


Reference video on Youtube:


  1. Control Box

    Adopts China demestic famous brand CHNT or DELIXI brand, works accutate and stable.

    And international brand like Siemens etc. can also be an option.

    PLC control automatic open rubber vulcanizer machine PLC control automatic open rubber vulcanizer machine

    PLC control automatic open rubber vulcanizer machine PLC control automatic open rubber vulcanizer machine

  2. Valves

    high quality International famous brand valve, works excellet low noise stable and long service life.

    PLC control automatic open rubber vulcanizer machine PLC control automatic open rubber vulcanizer machine


      PLC control automatic open rubber vulcanizer machine PLC control automatic open rubber vulcanizer machine

    Oil Cylinder and Piston

    Oil cylinder adopts QT500-7 ductile iron, called FCD50 in Japan; piston adopts chilled hard alloy cast iron; seal adopt imported international quality sealing ring and dust proof ring, to ensure long working life.

    PLC control automatic open rubber vulcanizer machinePLC control automatic open rubber vulcanizer machine

    PLC control automatic open rubber vulcanizer machine PLC control automatic open rubber vulcanizer machine

    PLC control automatic open rubber vulcanizer machine  PLC control automatic open rubber vulcanizer machine

    Heating Platen

    Double sizing rolling #Q235B(SS41) steel plate, normalizing treatment.

    PLC control automatic open rubber vulcanizer machinePLC control automatic open rubber vulcanizer machine

    PLC control automatic open rubber vulcanizer machine PLC control automatic open rubber vulcanizer machine

    PLC control automatic open rubber vulcanizer machine



  3. Column/Pillar

    Use #45(S45C) round steel, ball blast rust cleaning, jolting to remove internal stress, and then move to machining workshop to processing, polishing.

    And we have huge size rubber vulcanizing press machine making ability, which can be used to make big size rubber products.

    PLC control automatic open rubber vulcanizer machine PLC control automatic open rubber vulcanizer machine

  4. Heating Bar

    Our rubber vulcanizer adopts stainless steel heating bar as heating element.

    It's high heating performance and long service life.

    PLC control automatic open rubber vulcanizer machine



Ø1. Will your machine meet our voltage, can we use your machine in our country?

   Yes, we can customize every aspect of the machine according to customers’ work needs, Voltage,

   Electricity frequency, clamping force, (heating )platen size, daylight, piston travel, working layer number, with sliding platen or not, assist cylinder, Control method, automatization     level, PLC or not, etc,


Ø 2. Guarantee?

   For the whole machine, not less than 2 years quality guarantee, and life long technical service whenever it’s needed.


Ø 3. Will the machine be kept well while on the sea journey?

   Yes, for small size or single set machine, we use good quality fumigation free ply wood making strong packing for them.

   For big size machine or multi sets small size machine, after proper treatment, we fixed them in the container so that the machine won’t get rust or damage in the sea voyage.


Ø 4. Whats’ the payment method?

   There are TT, L/C, Credit Card, Western Union, Paypal, Alipay etc.



Ø5. What’s the shipping method?

   Our rubber machines are most often shipped by sea, but for land-locked state, there are train or truck transportation. Or there are joint transportation between land and water.

   When it come to small pare parts, it’s by international courier by air.
