Vulcanizing machine is an important equipment used in the production of rubber products. Its main function is to heat uncured rubber products, allowing them to react with vulcanizing agents at high temperatures, thereby forming finished products with elasticity and wear resistance. Vulcanizing machines are widely used in fields such as automobiles, electronics, construction, and healthcare, and are one of the indispensable key equipment in modern industrial production.

1、 Automobile manufacturing

The vulcanization machine plays an important role in the automotive manufacturing process. For example, in the tire manufacturing process, the tire needs to be heated by a vulcanization machine to have good elasticity and wear resistance. In addition, in the production process of automotive components, such as rubber seals, pipelines, etc., they also need to be processed through vulcanization machines.

2、 Electronic industry

In the electronics industry, vulcanization machines are mainly used to produce products such as wires and cables. These products require heating treatment to achieve the required physical and chemical properties. Due to its high efficiency and stability, vulcanization machines have been widely used in the electronic industry.

3、 Construction industry

In the construction industry, vulcanization machines are mainly used to produce various sealing materials, waterproof materials, etc. These materials need to have good durability and wear resistance, and vulcanization machines can make them meet these requirements. In addition, in the construction industry, vulcanization machines can also be used to produce products such as rubber floor mats and rubber tiles.

4、 Medical industry

In the medical industry, vulcanization machines are mainly used to produce medical rubber products, such as gloves, infusion tubes, etc. These products need to have good elasticity and corrosion resistance, and vulcanization machines can meet these requirements.

5、 Other fields

In addition to the above-mentioned fields, vulcanization machines can also be applied in other fields. For example, in the textile industry, vulcanization machines can be used to produce elastic fibers; In the process of toy manufacturing, vulcanization machines can be used to produce rubber toys, etc.

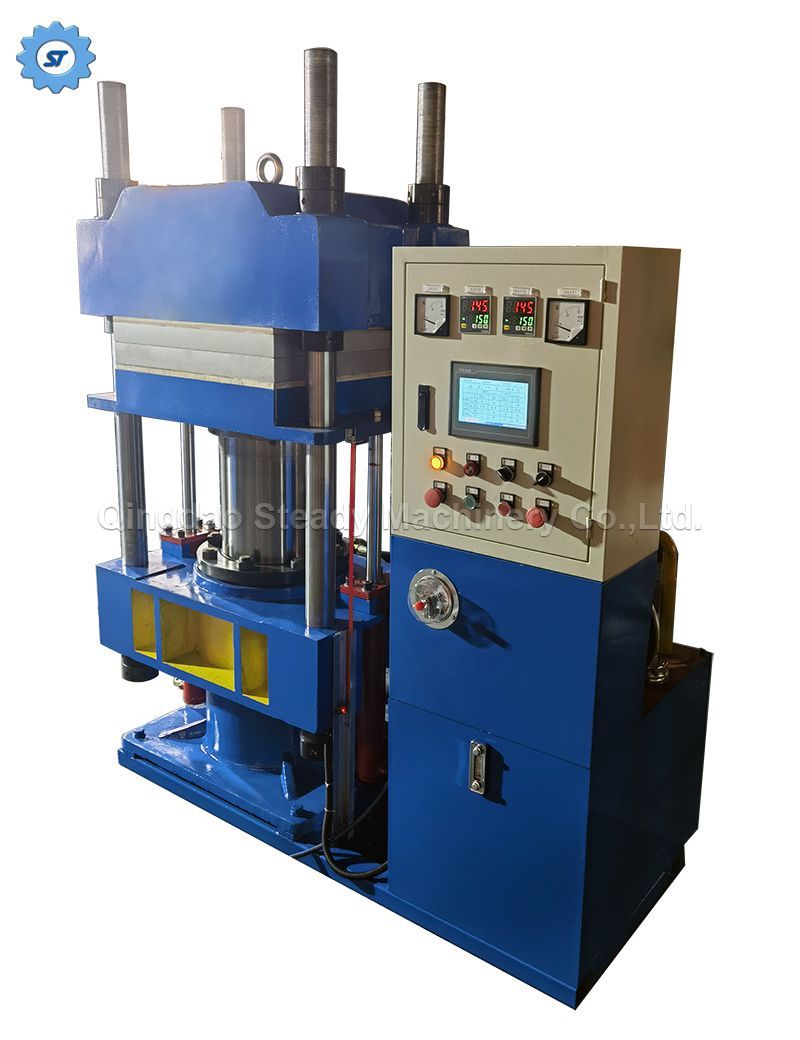

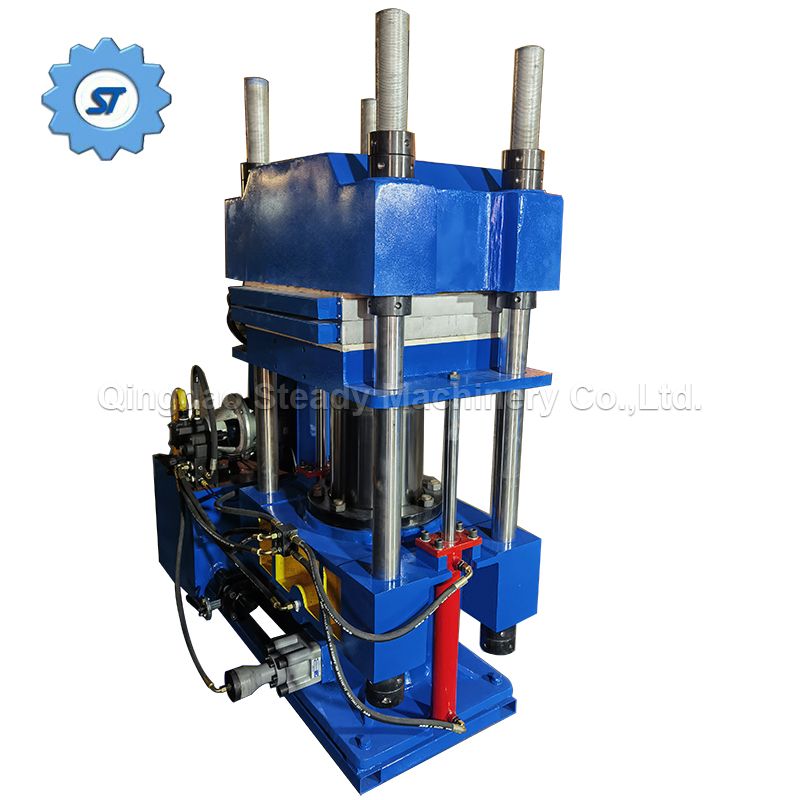

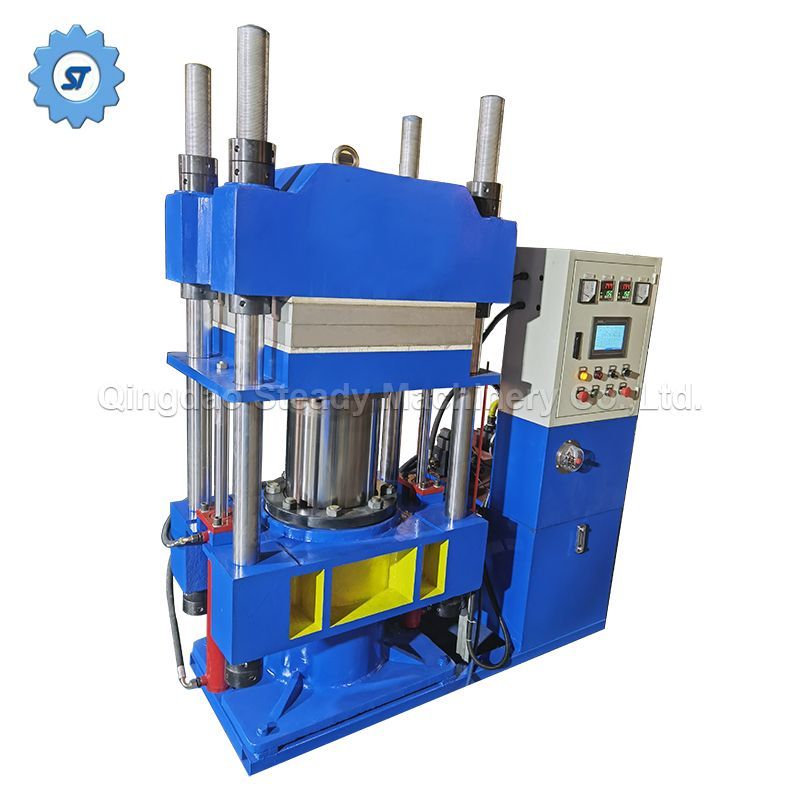

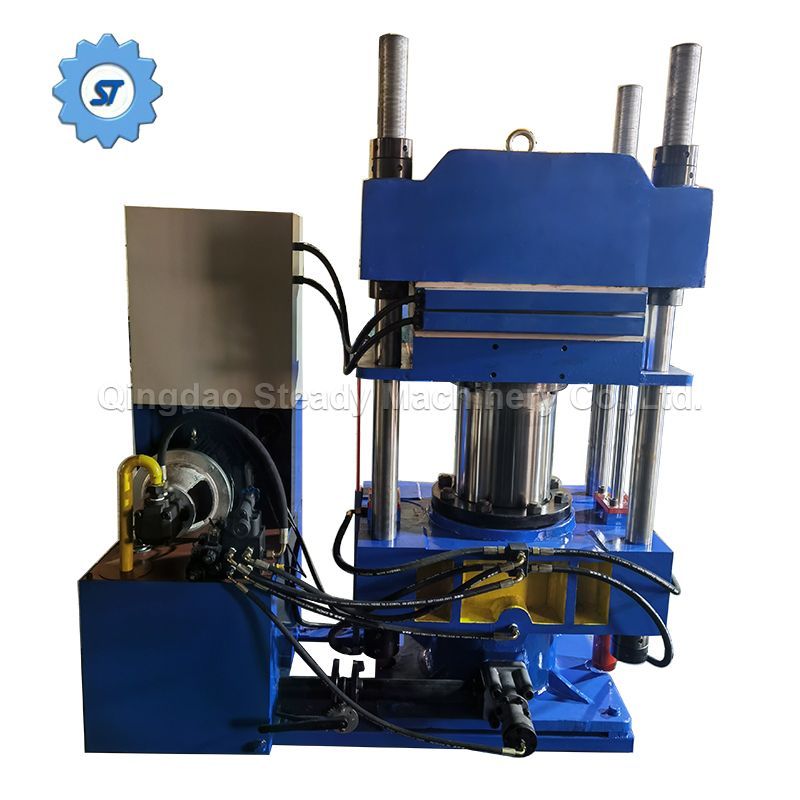

Below are some often use models for column type rubber vulcanizing press machine

Model	3003002	3503502	4004002	5005002	6006002	7508502	6006002
Nominal Mold Clamping Force（MN）	0.25	0.25	0.5	0.8	1	1.6	2
Heating Platen Size(mm)	300*300	350*350	400*400	500*500	600*600	750*850	600*600
Working Layer	2	2	2	2	2	2	2
Piston Diameter(mm)	ø150	ø150	ø200	ø250	ø300	ø360	ø400
Piston Stroke（mm）	250	250	250	250	250	500	300
Daylight/ Platen Spacing（mm）	125	125	125	125	125	250	150
Unit Area Pressure（Mpa）	2.78	2.1	3.1	3.2	2.78	2.5	5.6
Main Motor Power（KW）	2	2.2	2.2	2.2	2.2	3.0	3.0
Dimension（L×W×H)mm	15004001350	15004001350	18005001600	18005501700	20007001700	200010001900	25509602100
Weight（KG）	950	1000	1500	2000	2600	4300	5000
Mold Closing Speed（mm/s)	≥12	≥12	≥12	≥12	≥12	≥12	≥12
Mold Opening Speed（mm/s）	≥12	≥12	≥12	≥12	≥12	≥12	≥12

We can tailor make machine according to customers' technical requirements or special work needs.

Just feel free to contact us. We'll make a best proposal with most reasonable price.

Some rubber products pictures for reference:

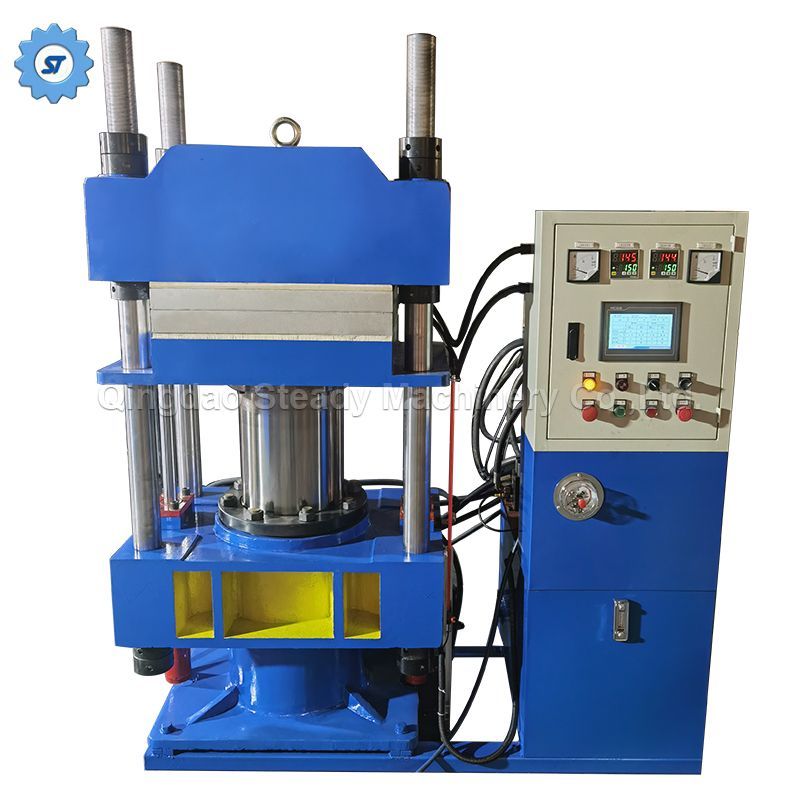

manual open operation rubber vulcanizing press machine

Reference video on Youtube:

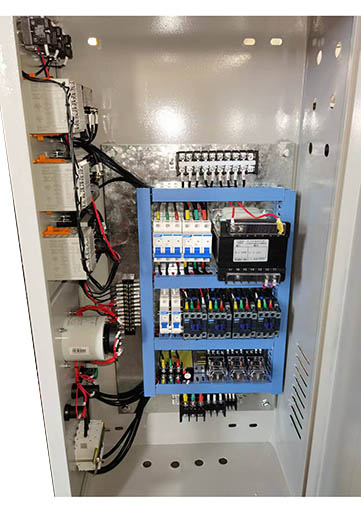

Control Box
Adopts China demestic famous brand CHNT or DELIXI brand, works accutate and stable.

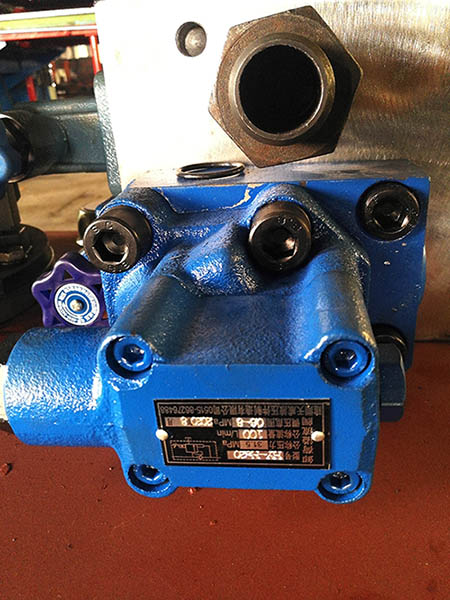

Valves
high quality China brand valve, works good

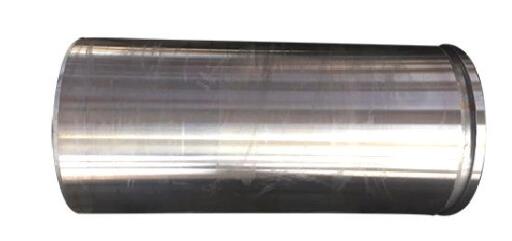

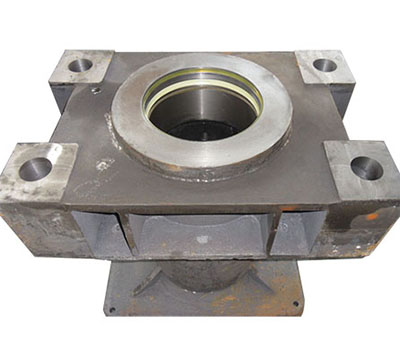

Oil Cylinder and Piston
Oil cylinder adopts QT500-7 ductile iron, called FCD50 in Japan; piston adopts chilled hard alloy cast iron; seal adopt imported international quality sealing ring and dust proof ring, to ensure long working life.

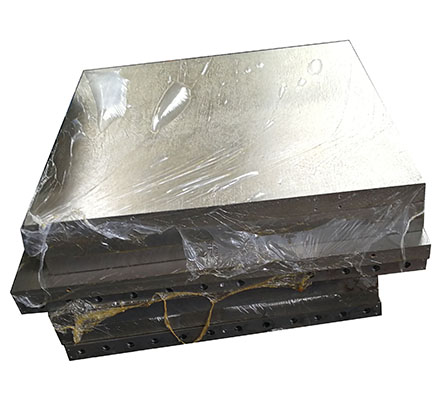

Heating Platen
Double sizing rolling #Q235B(SS41) steel plate, normalizing treatment.

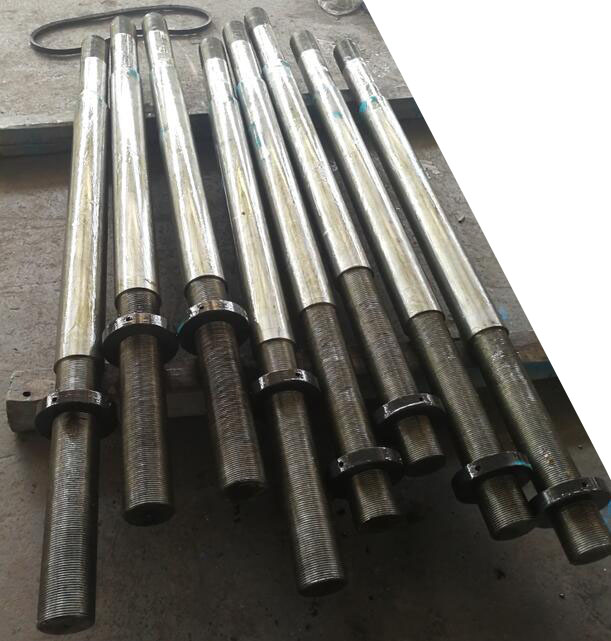

Column/Pillar
Use #45(S45C) round steel, ball blast rust cleaning, jolting to remove internal stress, and then move to machining workshop to processing, polishing.

Ø1. Will your machine meet our voltage， can we use your machine in our country?

Yes, we can customize every aspect of the machine according to customers’ work needs, Voltage,

Electricity frequency, clamping force, (heating )platen size, daylight, piston travel, working layer number, with sliding platen or not, assist cylinder, Control method, automatization level, PLC or not, etc,

Ø 2. Guarantee?

For the whole machine, not less than 2 years quality guarantee, and life long technical service whenever it’s needed.

Ø 3. Will the machine be kept well while on the sea journey?

Yes, for small size or single set machine, we use good quality fumigation free ply wood making strong packing for them.

For big size machine or multi sets small size machine, after proper treatment, we fixed them in the container so that the machine won’t get rust or damage in the sea voyage.

Ø 4. Whats’ the payment method?

There are TT, L/C, Credit Card, Western Union, Paypal, Alipay etc.

Ø5. What’s the shipping method?

Our rubber machines are most often shipped by sea, but for land-locked state, there are train or truck transportation. Or there are joint transportation between land and water.

When it come to small pare parts, it’s by international courier by air.
