Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

Share:

The application of hose weaving is very extensive. Firstly, in the field of automotive manufacturing, hose weaving is widely used for automotive oil pipes, brake pipes, etc. These hoses need to have high strength and wear resistance to withstand high temperature and high pressure environments. Secondly, hose weaving is also used in industrial equipment, such as hydraulic systems, wind power generation equipment, etc. Flexible hose weaving can provide high pressure resistance, ensuring the normal operation of the system. In addition, hose weaving is also widely used in medical devices, such as catheters, drainage tubes, etc. Flexible hose weaving has high flexibility and smoothness, reducing trauma to body tissues. Finally, hose weaving is also used in the aerospace field. In aviation equipment and spacecraft, hose weaving can withstand high temperature and high pressure environments, ensuring the reliability and safety of the system.

When you have a weaving pattern in mind, but don't know what kind of machine to use, just freel free to ask us.

Flexible hose weaving is a tubular structure formed by interweaving concentric filaments, wires, or wire harnesses. It can use different weaving methods and materials, with high strength and flexibility, and is widely used in various fields, such as automotive manufacturing, industrial equipment, medical devices, aerospace, etc. The main principle of hose weaving is through a double strand interweaving weaving scheme. Using one or more stretched rigid filaments or wire harnesses as longitudinal skeletons, and then wrapping them with soft fabrics or woven fabrics to form a wrapping layer. By utilizing the crossing, winding, and tension of fine threads during the weaving process, mechanical support is formed to achieve a balance between the strength and flexibility of the hose. The application of hose weaving is very extensive. Firstly, in the field of automotive manufacturing, hose weaving is widely used for automotive oil pipes, brake pipes, etc. These hoses need to have high strength and wear resistance to withstand high temperature and high pressure environments. Secondly, hose weaving is also used in industrial equipment, such as hydraulic systems, wind power generation equipment, etc. Flexible hose weaving can provide high pressure resistance, ensuring the normal operation of the system. In addition, hose weaving is also widely used in medical devices, such as catheters, drainage tubes, etc. Flexible hose weaving has high flexibility and smoothness, reducing trauma to body tissues. Finally, hose weaving is also used in the aerospace field. In aviation equipment and spacecraft, hose weaving can withstand high temperature and high pressure environments, ensuring the reliability and safety of the system. The advantages of hose weaving are multifaceted. Firstly, hose weaving can provide high strength and tensile elongation. Through reasonable weaving design and material selection, the hose can withstand significant pressure and tension, and has good weather resistance and wear resistance. Secondly, hose weaving has good flexibility and plasticity. Hoses can be bent and twisted as needed to adapt to various complex working environments. In addition, hose weaving can also provide good sealing and corrosion resistance. Through reasonable weaving structure and coating treatment, the hose can prevent leakage of liquids, gases, etc

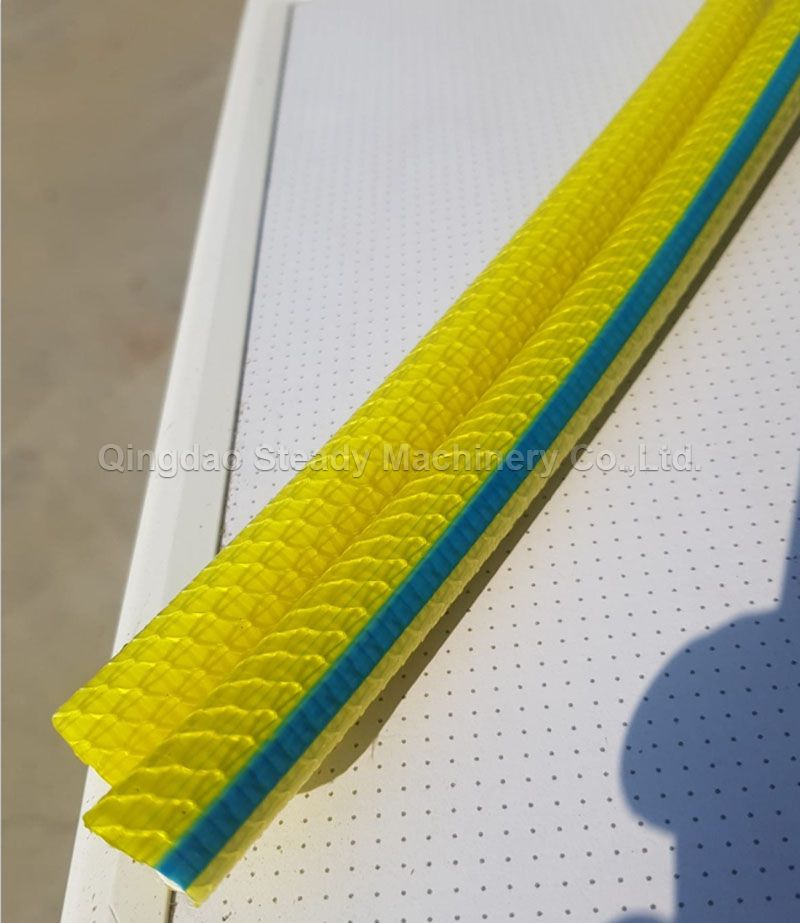

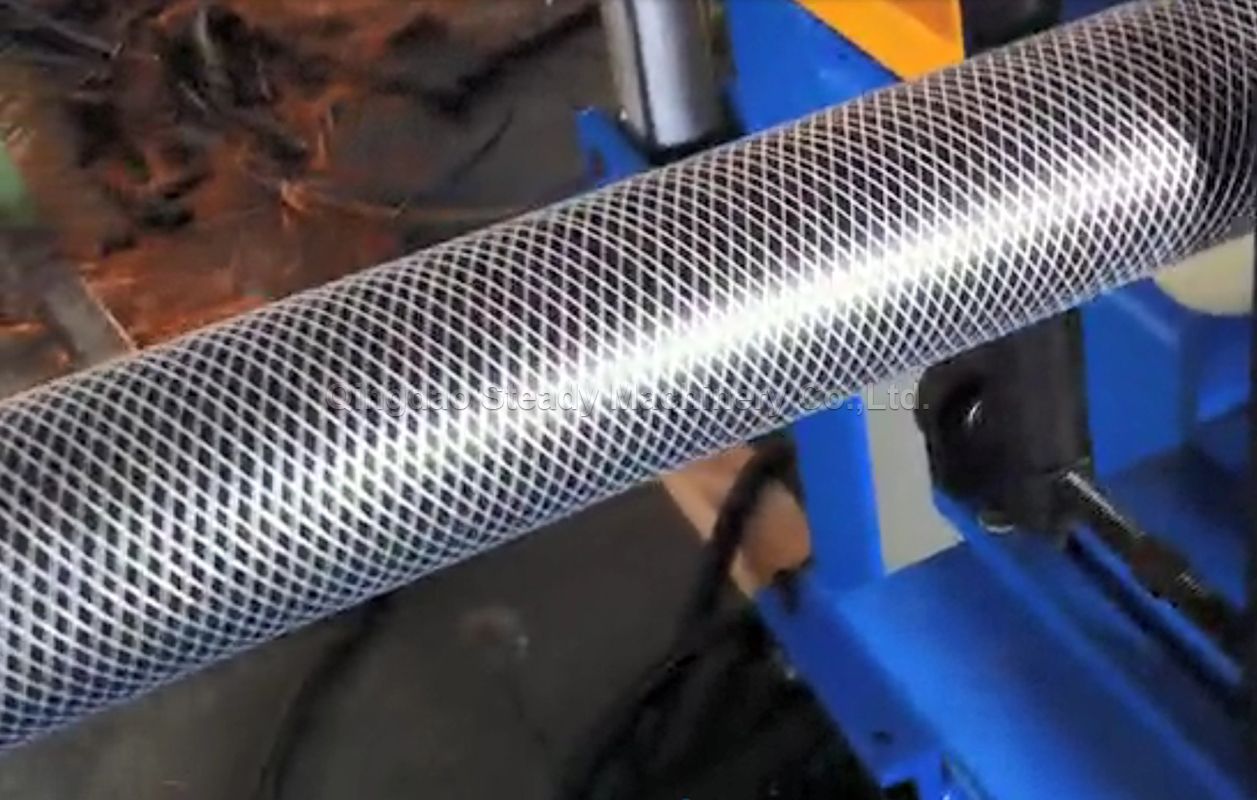

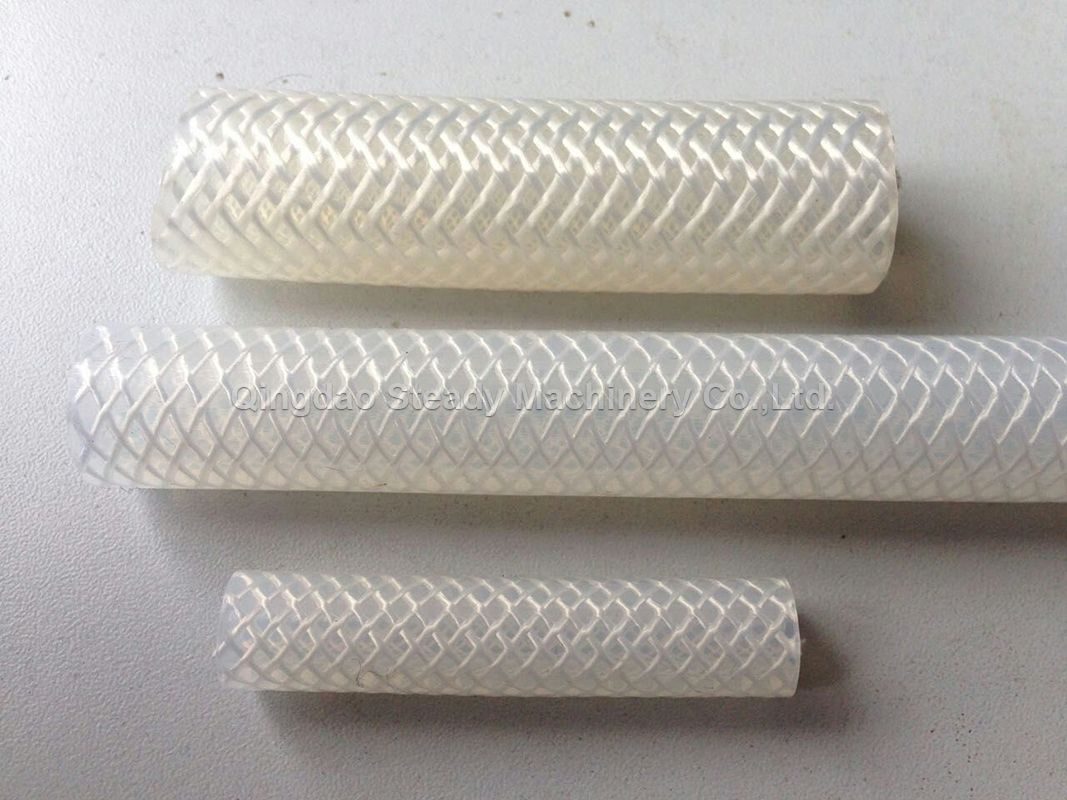

Braiding Pattern:

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

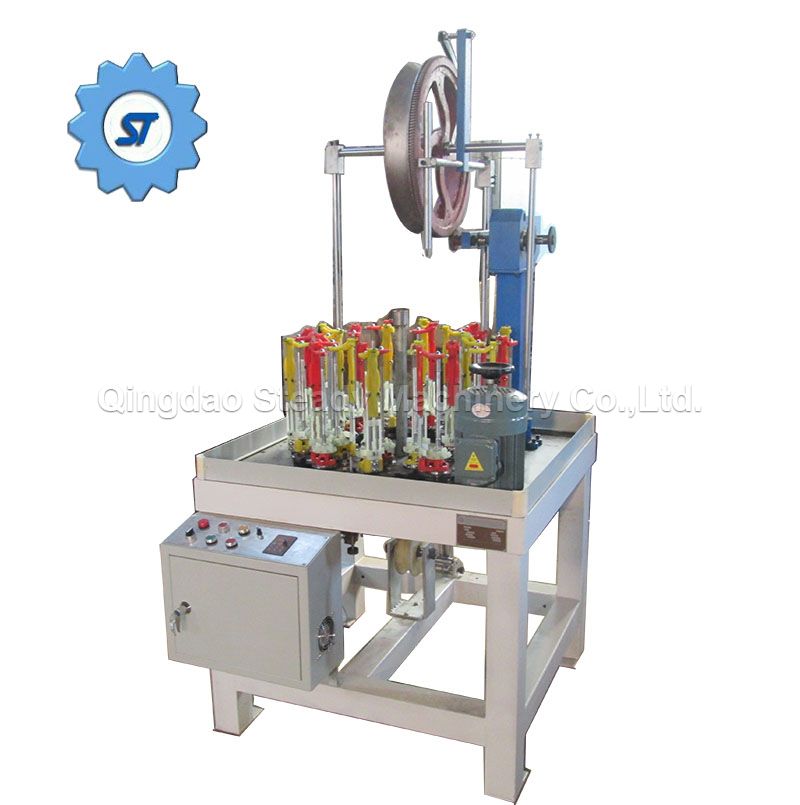

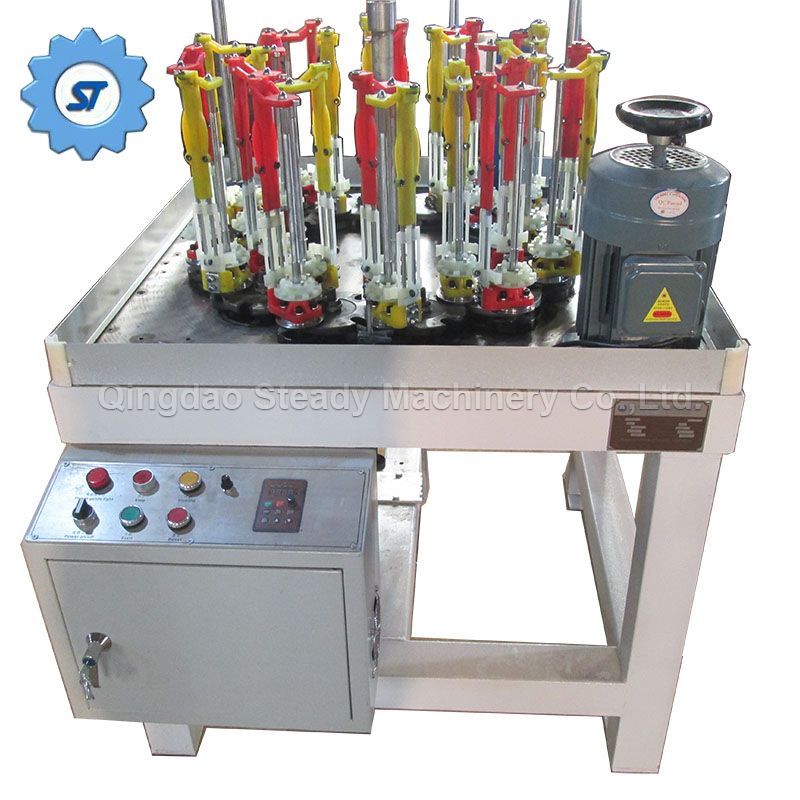

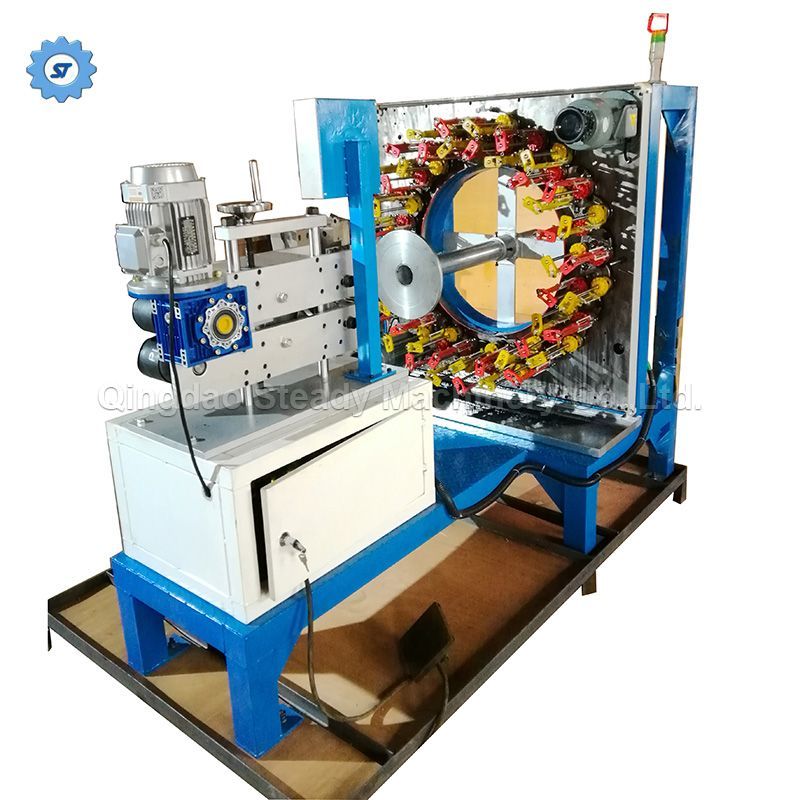

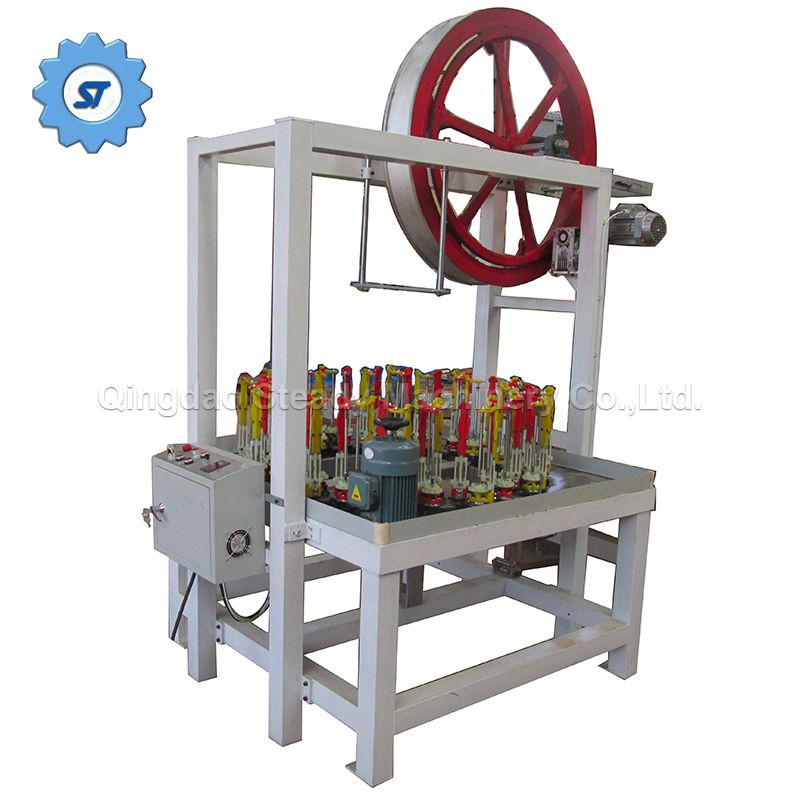

High speed braiding machine often use models(if you need other model or have other requirements, just contact us):

ModelBH130-24 horizontal braiding machineBH130-32 horizontal braiding machineBH130-48 horizontal braiding machine
Head number111
Spindle number24pcs32pcs48pcs
Bobbin number48pcs64pcs96pcs
Bobbin sizeØ70*210mmØ70*210mmØ70*210mm
Braiding RangeØ5-20mmØ10-35mmØ20-50mm
Motor Power1.1KW,380V1.1KW,380V0.75KW*2,380V
Max Speed of motor≤220rpm≤220rpm≤220rpm
Machine weight400kg(for reference)450kg(for reference)500kg(for reference)
Machine size900*900*1350mm(for reference)1000*1000*1450mm(for reference)1300*1100*1600mm(for reference)

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine


Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

DETAIL IMAGES

Control Box

Qingdao Steady Machinery's hose braiding machine adopts famous brand electronics, works accurate and stable.

 Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine



Loading Into Container Export

 Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

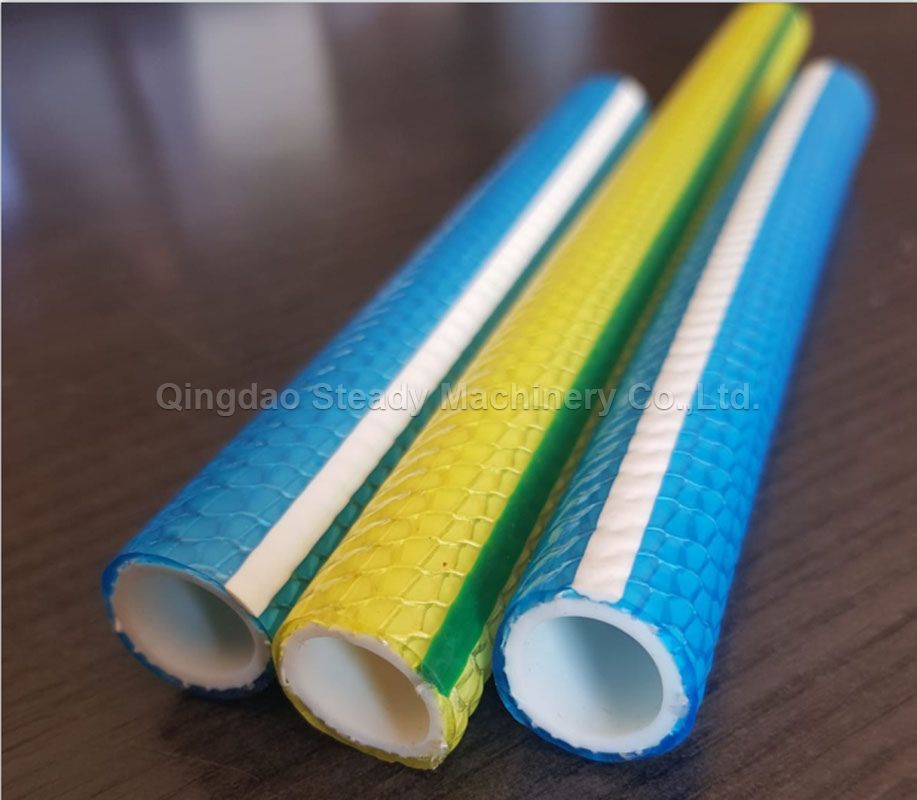

Hose Wrapping Machine's Weaving Pattern is as below:

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine


Model24 spindle wrapping weaving machine32 spindle wrapping weaving machine48 spindle wrapping weaving machine
Head Number111
Bobbin Number12+1216+1624+24
Bobbin SizeØ200*350mm(apply to <ø180*320 yarn tube)Ø200*350mm(apply to <ø180*320 yarn tube)Ø200*350mm(apply to <ø180*320 yarn tube)
Motor Power3.0KW,380V 50HZ 3Phase3.0KW,380V 50HZ 3Phase4.0KW,380V 50HZ 3Phase
Max Rotation Speed≤380rpm≤340rpm≤300rpm
Weightabout 1.2Tabout 1.5Tabout 2T
Dimension2240*1000*1400mm(供参考)2240*1400*1400mm(供参考)2240*2000*1400mm(供参考)
Weaving Range8-80mm8-80mm8-80mm

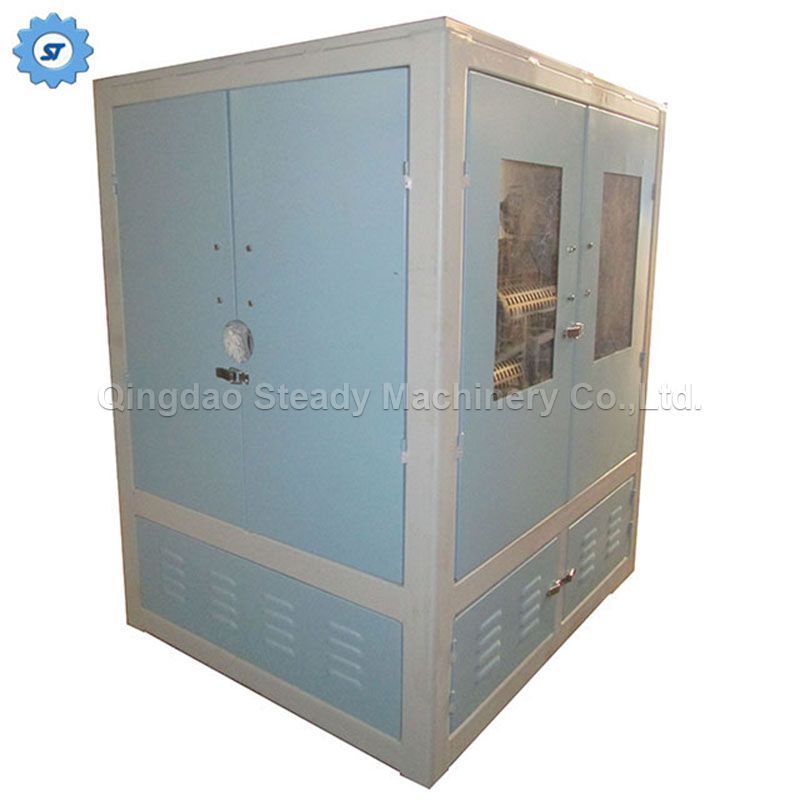

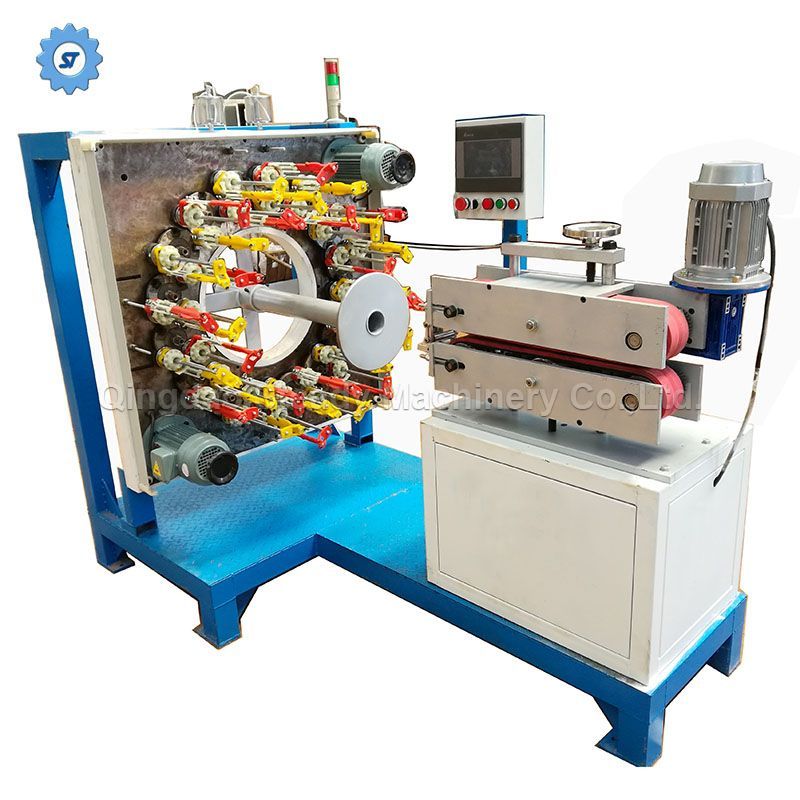

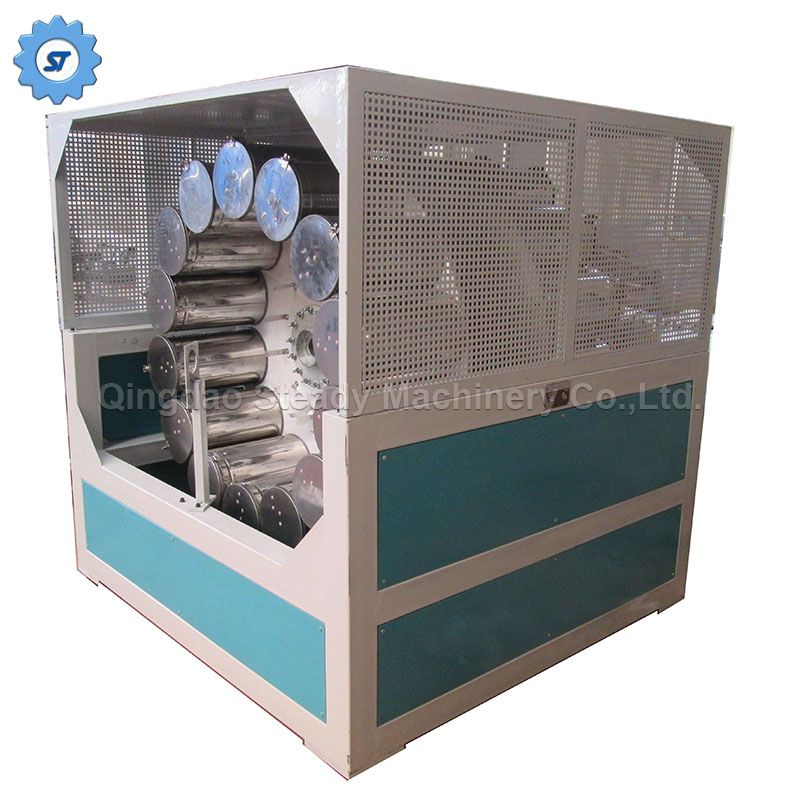

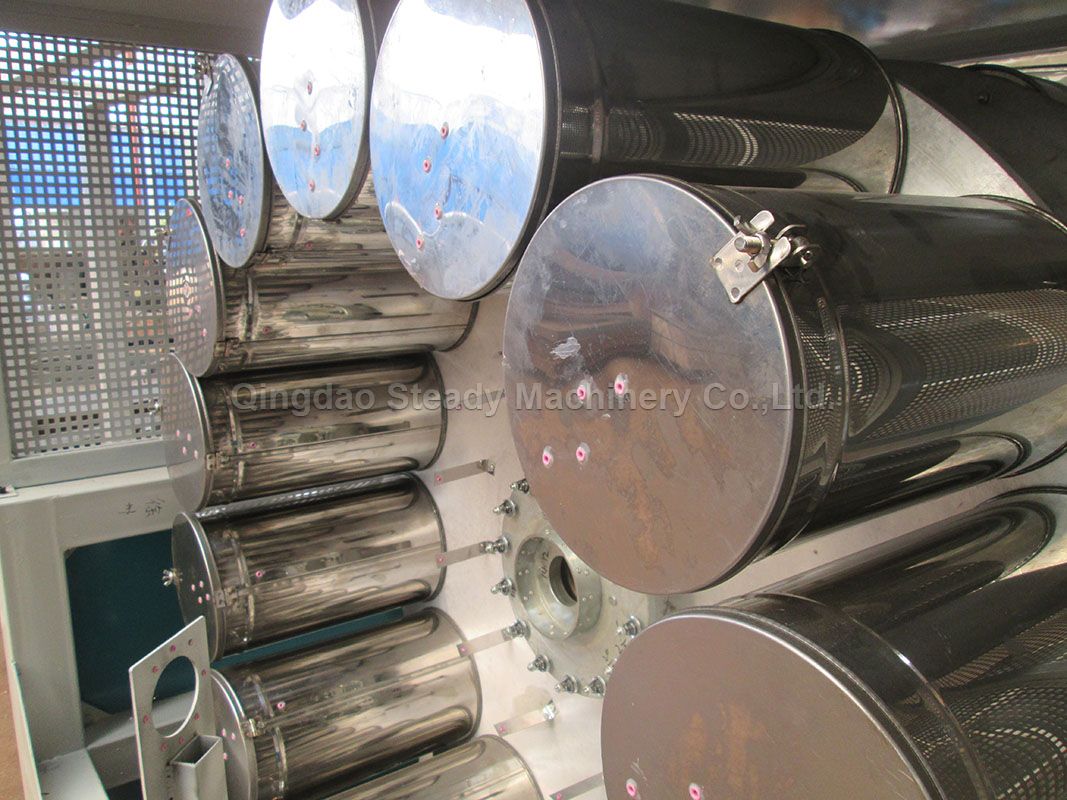

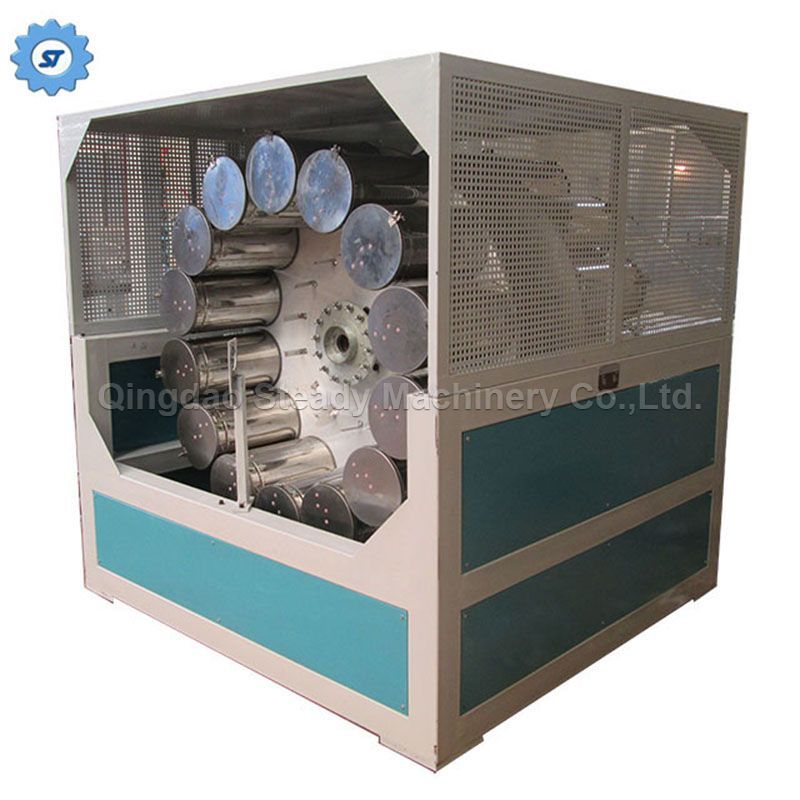

Hose Wrapping Machine Picture:

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

Control Box

Qingdao Steady Machinery Co.,Ltd's hose wrapping machine adopts China top brand electronics, works accurate and stable.

Long service life and trouble free.

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

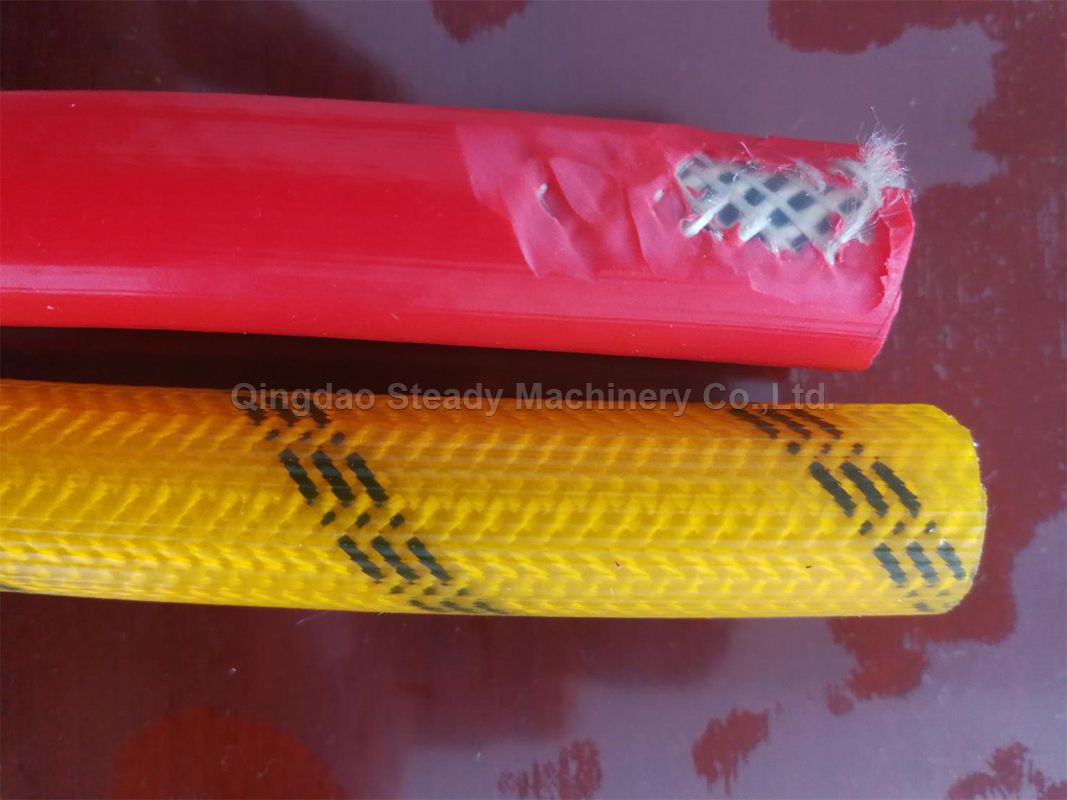

Hose Knitting Machine Weaving Pattern

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

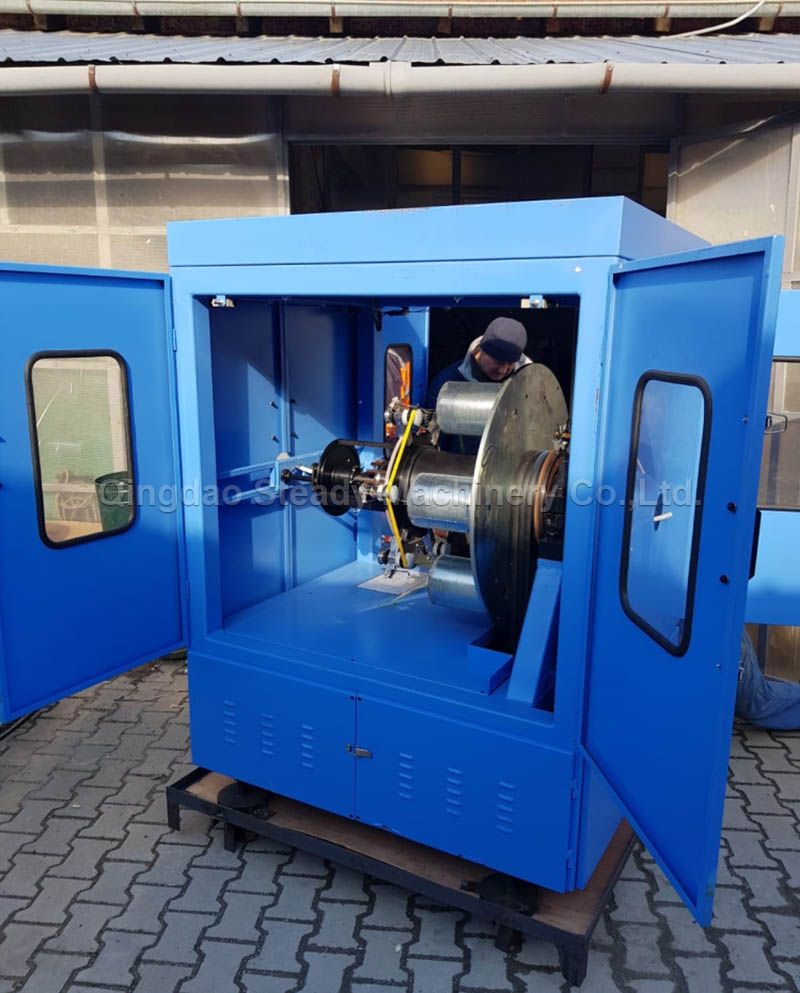

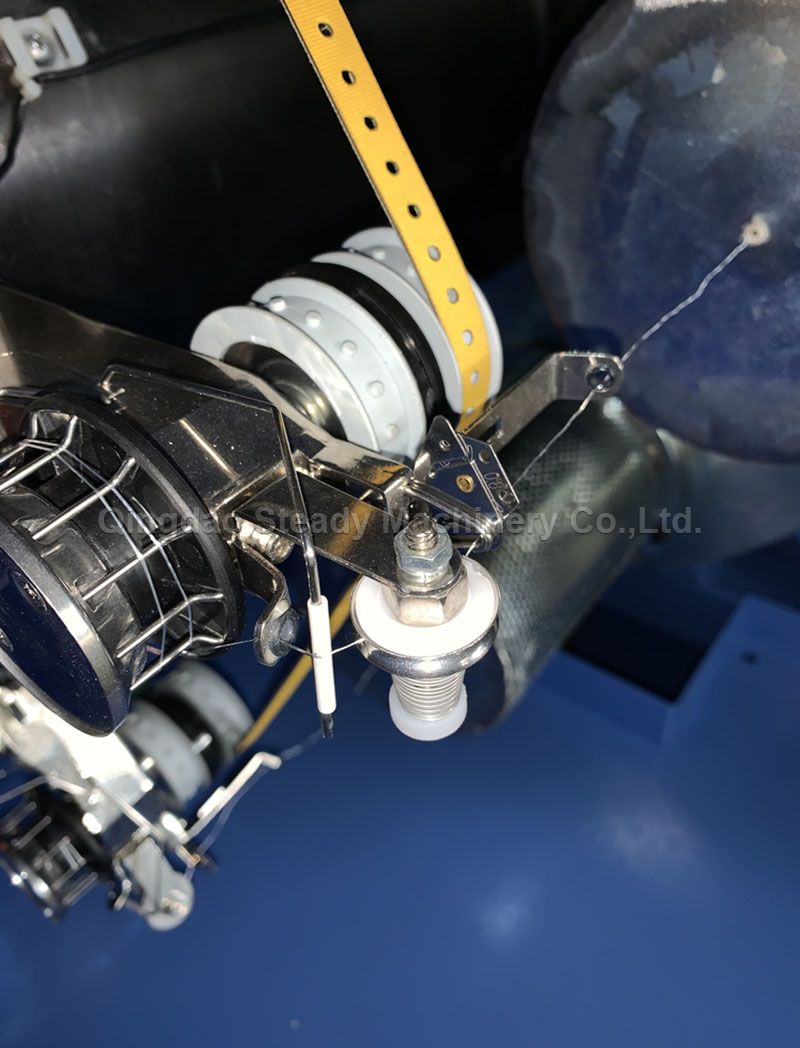

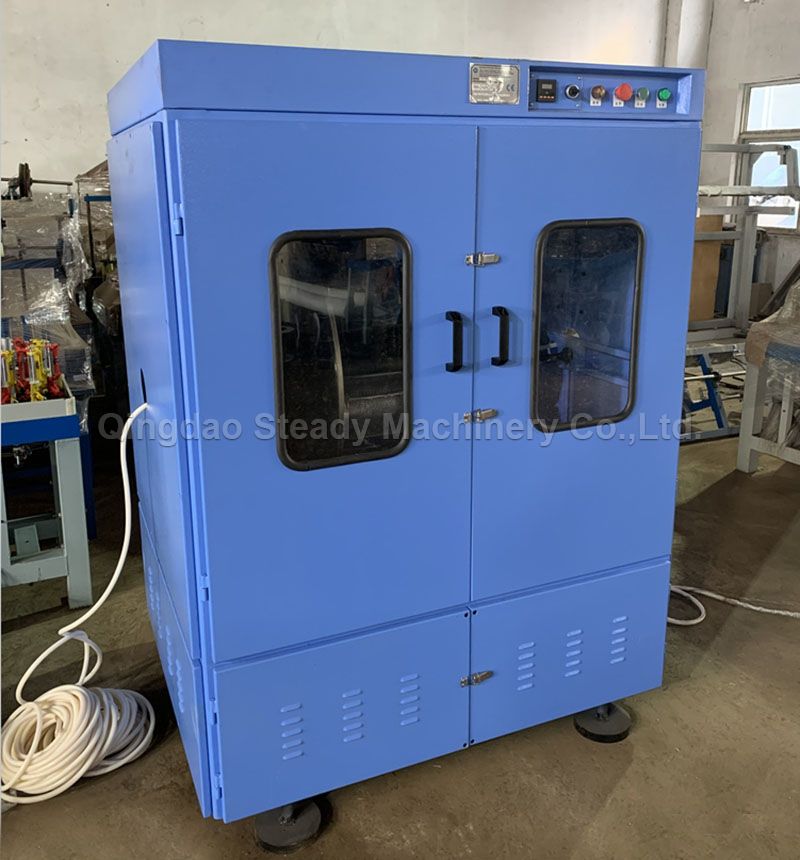

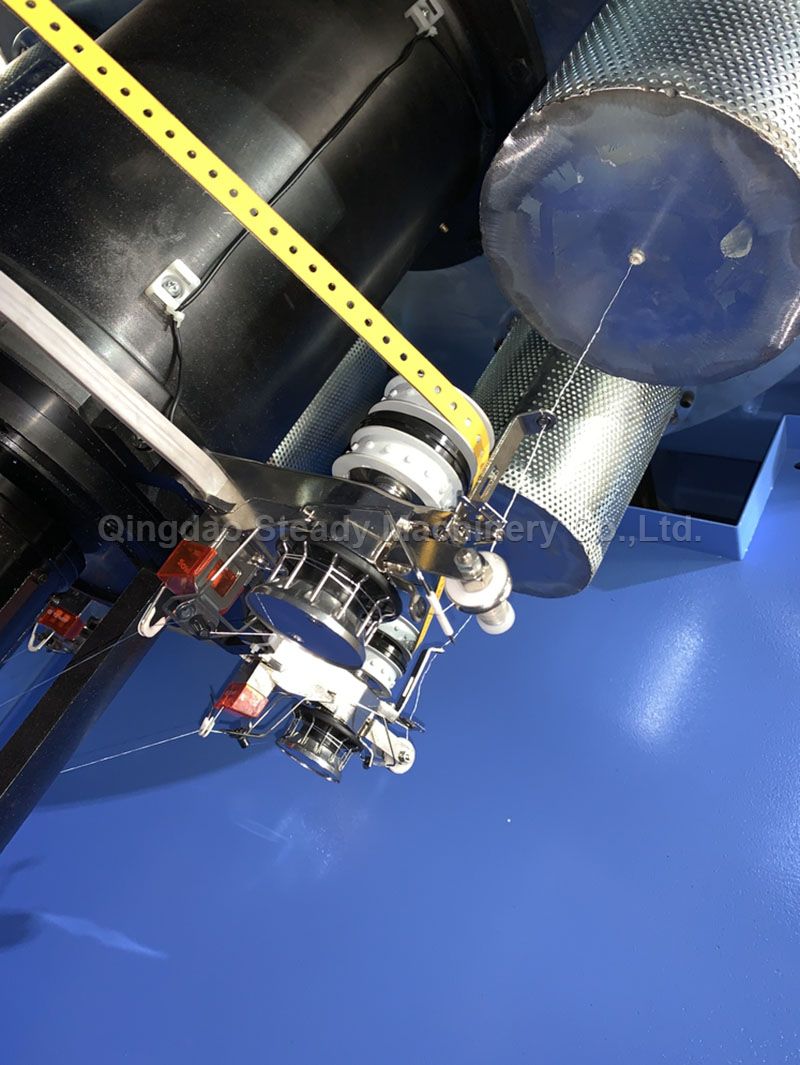

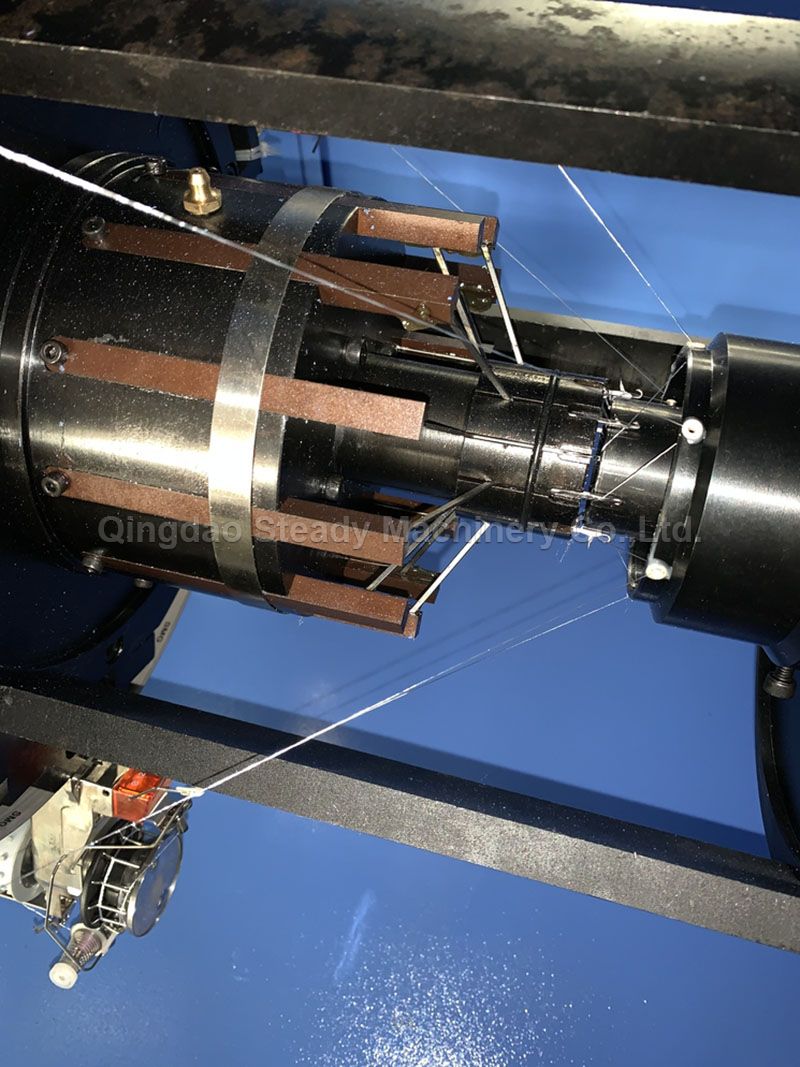

Hose Knitting Machine

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

ModelHNL4G
Number of Bobbincan be customized
Bobbin Weight1~2kg
Suitable Hose Diameter10-22mm
Number of Needles12 (here take 12pcs needle machine as example, tell us your hose diameter to devide the machine model
Motor5.5kw
Center Height1050±15mm(can be customized)
Speed of Motor0-1500RPM
Knitting Hose Diameter Range From Φ10 to 22mm
Suitable Extrusion Speed6meters/minutes
Dimension1270*1080*1850mm
Weight800kg
Other FunctionAutomatic stop when door opened; needle broken, wire broken or disorder warning
ColorBlue or as per require
Needle NumberWeaving Range
8pcsΦ5-15mm
12pcsΦ10-22mm
18pcsΦ20-40mm
24pcsΦ38-55mm
8pcsΦ5-15mm
32pcsΦ50-84mm

 Please tell us your hose diameter, so we can decide how big(how many needles) machine to use according to above form.
