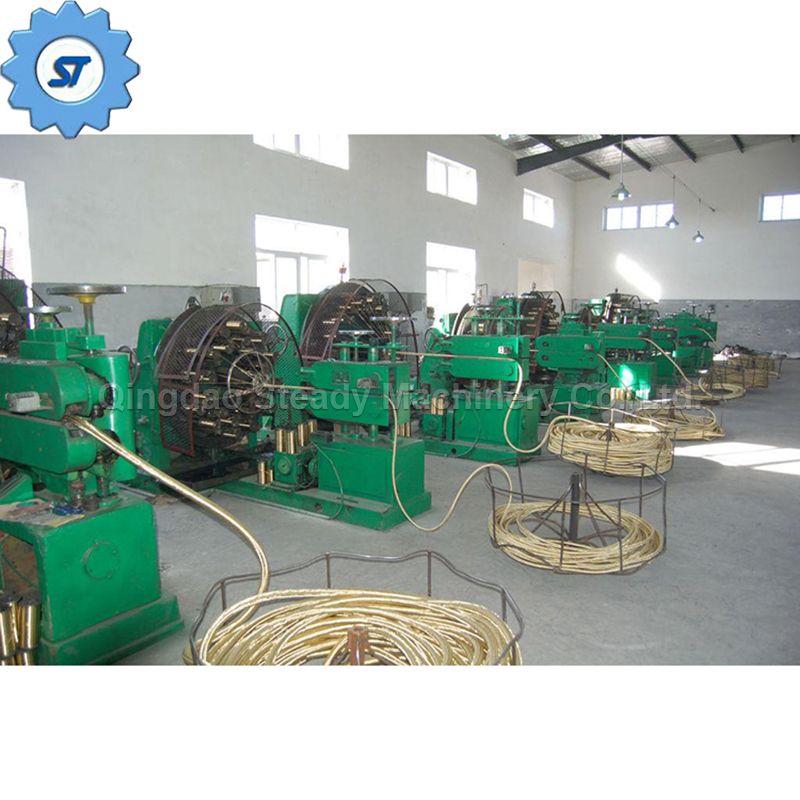

High Pressure Rubber Hose Steel Wire Braiding Weaving Machine

Share:

The purpose and working principle of steel wire weaving machine.

The steel wire weaving machine is invented and created based on the principle of manual weaving, and is widely used for the weaving of USB cables, copper axis cables, high-frequency cables, shielding wires, as well as the weaving of various outer metal protective bodies of cables.

The weaving principle of a steel wire weaving machine is actually easy to understand and similar to other weaving machines. The common steel wire weaving machines are divided into spindle type weaving machines and rotary disc type weaving machines according to their motion forms. According to their working status, there are vertical weaving machines and horizontal weaving machines.

1. The working principle of a spindle type weaving machine is that its working part is a fixed tabletop (vertical or horizontal), on which there are intersecting and tangent connected "8" shaped grooves. The spindle is installed in the groove and divided into two equal parts, evenly crossing each other and moving in opposite directions at equal speeds. This cycle repeats, continuously driving the spindle back and forth, weaving the copper wire onto the surface of the cable or hose to form a weaving layer.

2. The workpiece principle of a rotary knitting machine is also known as a high-speed weaving machine. Its working principle is that the circular turntable in the middle of the device drives half of the spindle to rotate, while the other half of the spindle rotates in the opposite direction along the curve on the fixed ring surface, forming a cross of copper or steel wires, weaving the surface of the cable.

The above; There are two types of machines that we have been using for a long time. Their operations are easy to learn and understand, and they are easy to get started. As long as the operators are trained, they can complete the tasks well.

When you have a weaving pattern in mind, but don't know what kind of machine to use, just freel free to ask us.

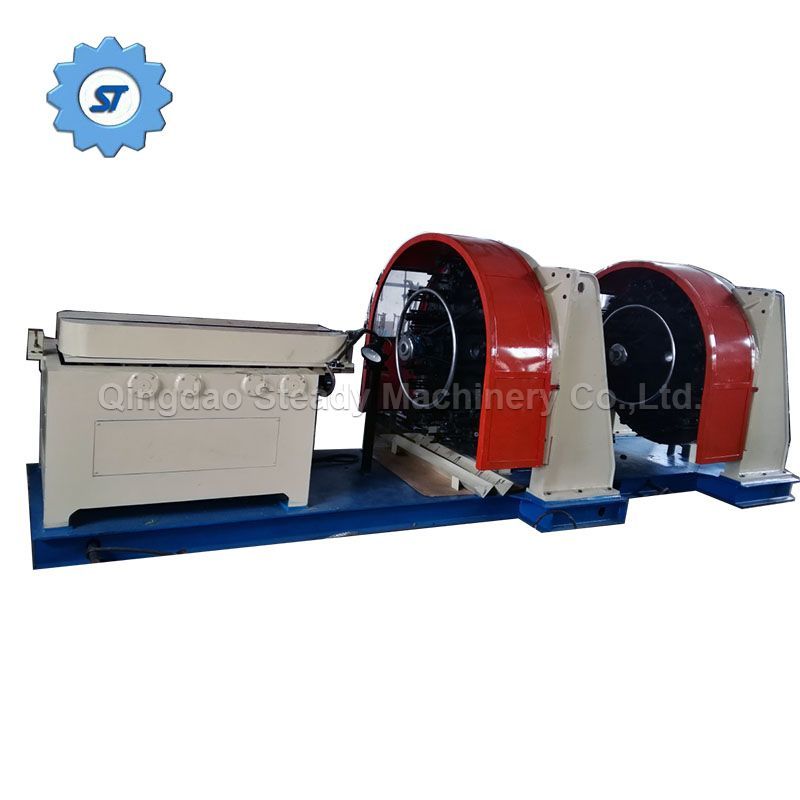

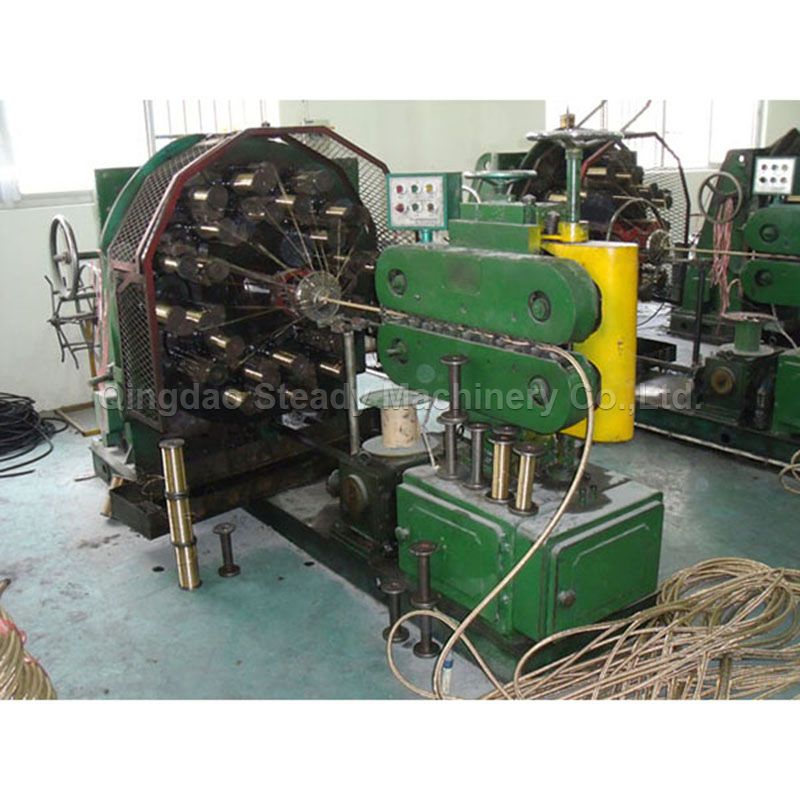

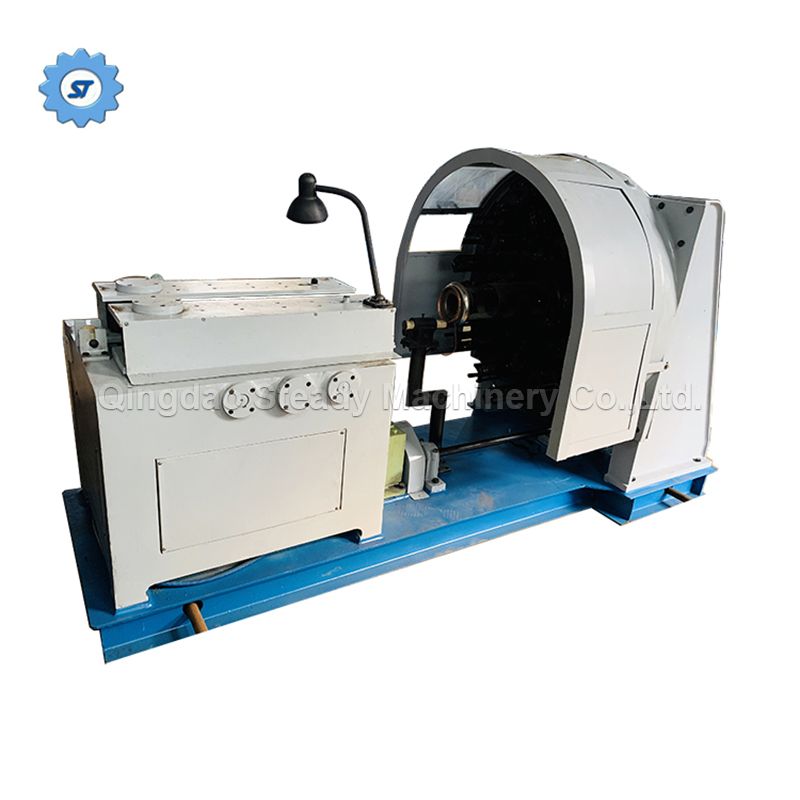

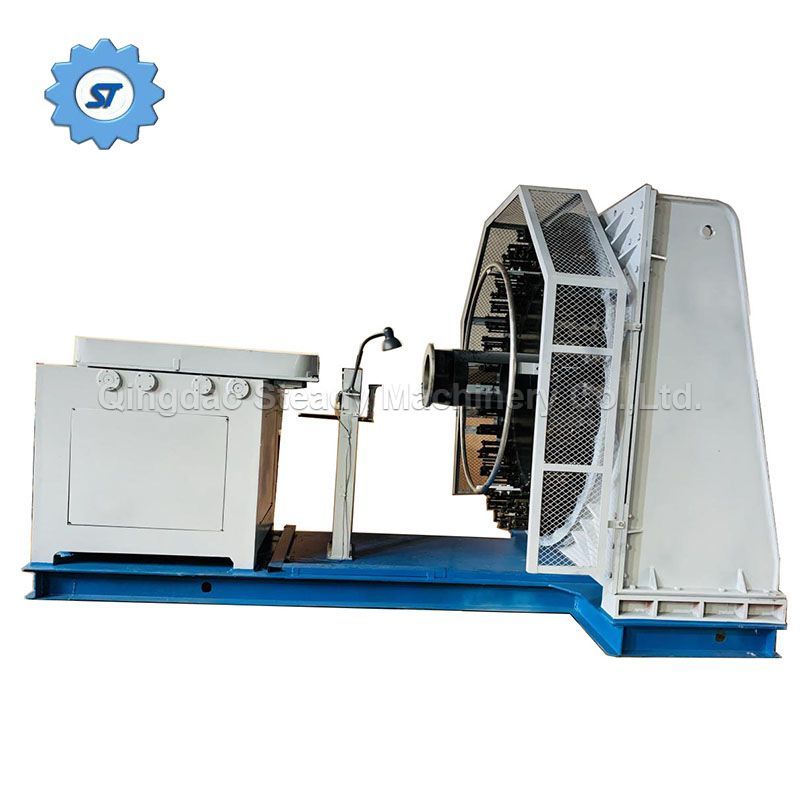

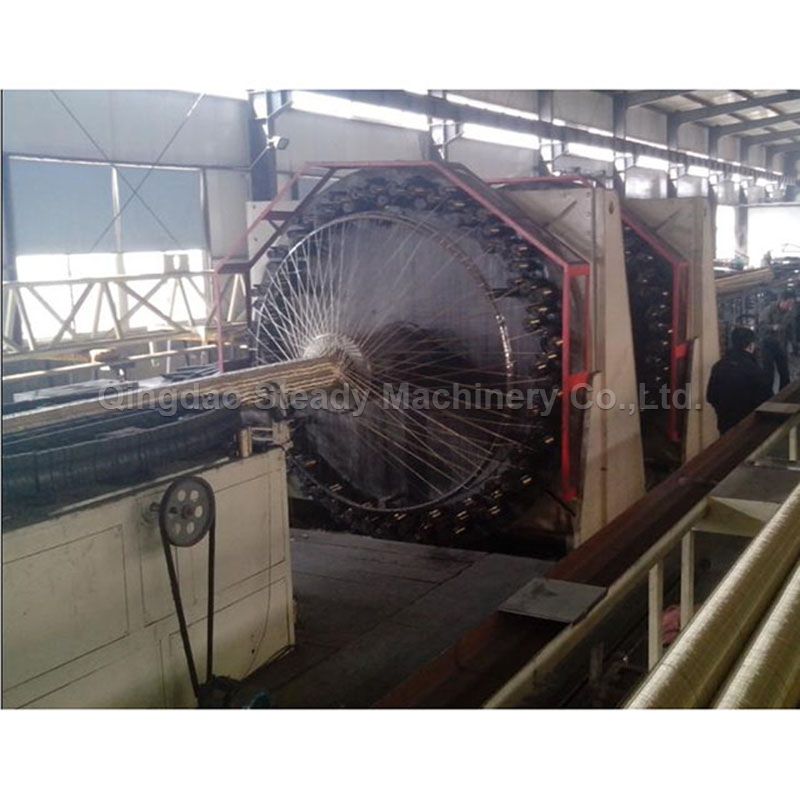

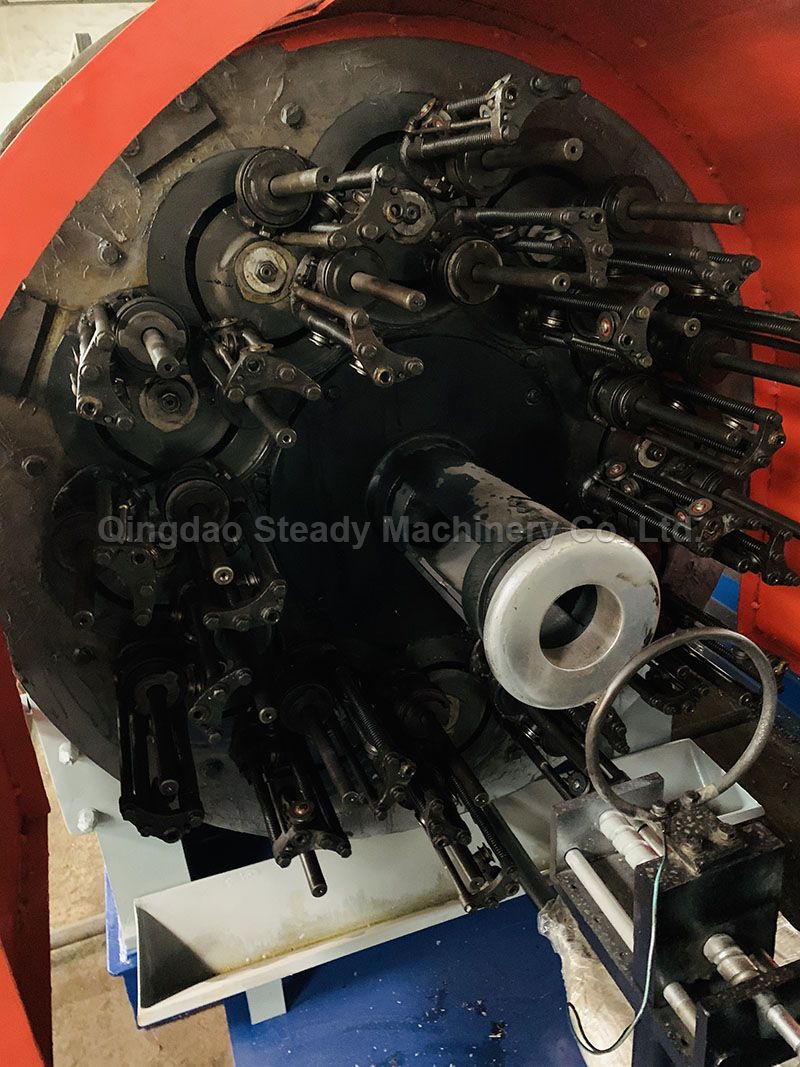

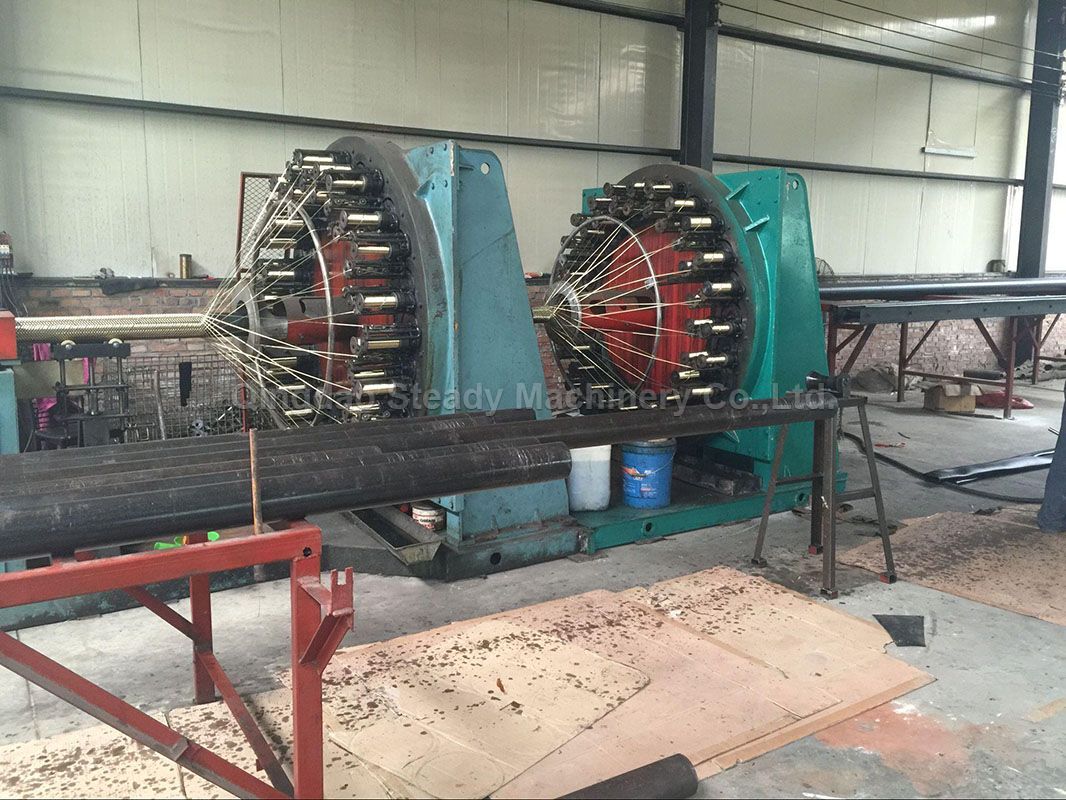

High Pressure Rubber Hose Steel Wire Braiding Weaving Machine

High Pressure Rubber Hose Steel Wire Braiding Weaving Machine

High Pressure Rubber Hose Steel Wire Braiding Weaving Machine

High Pressure Rubber Hose Steel Wire Braiding Weaving Machine

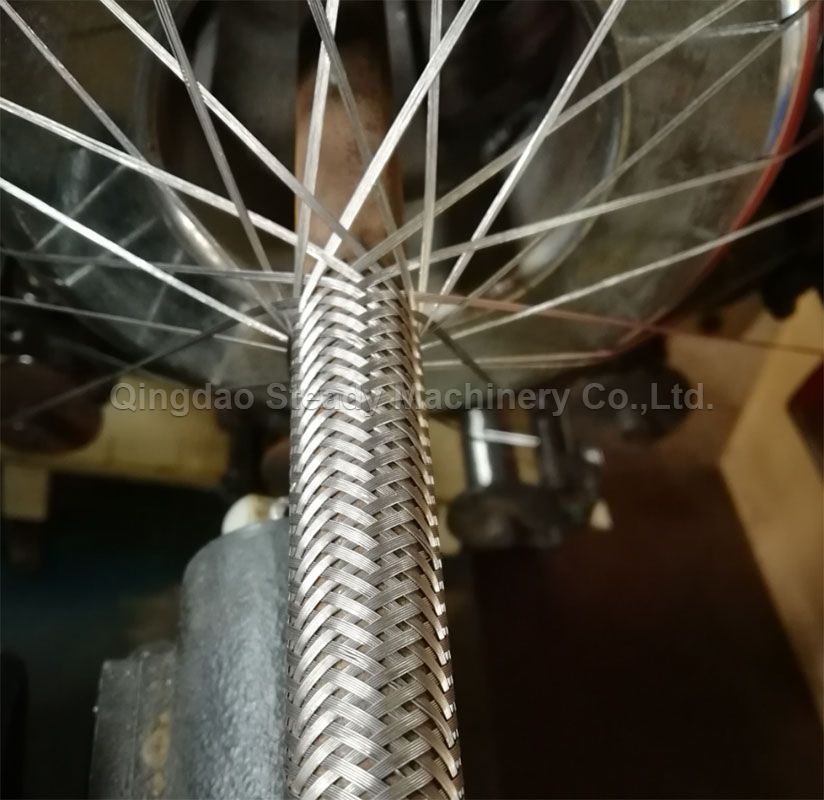

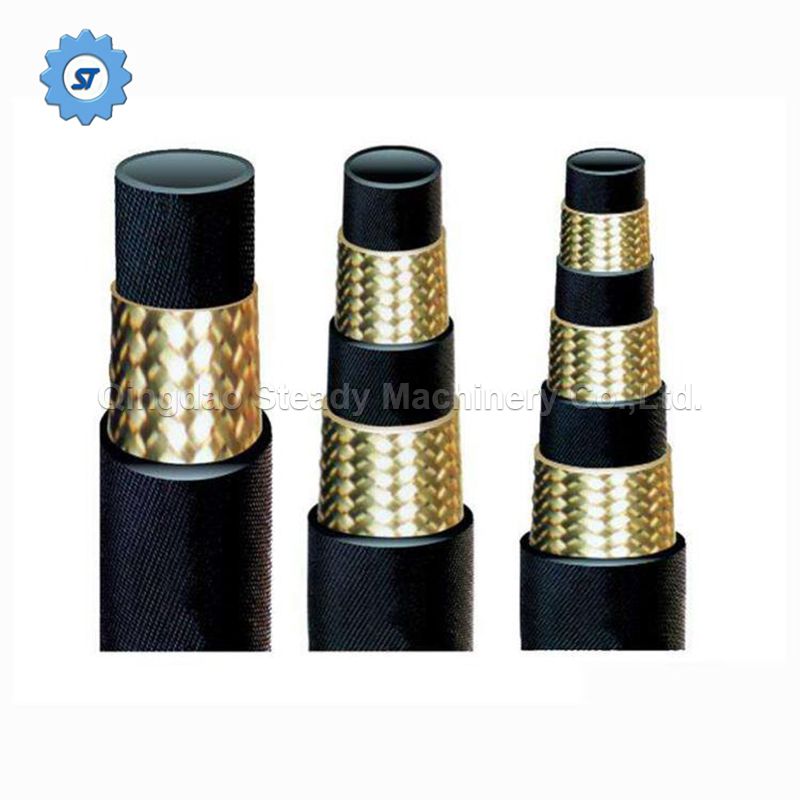

Braiding Pattern:

High Pressure Rubber Hose Steel Wire Braiding Weaving Machine

High Pressure Rubber Hose Steel Wire Braiding Weaving Machine


Steel Wire braiding machine often use models(if you need other model or have other requirements, just contact us):

ModelSWW-24SWS-36-2
Spindle Number2436
Disc NumberSingleDouble
Wire DiameterSteel wire 0.16mm-0.50mmStainless steel wire 0.20mm-0.50mmSteel Wire 0.16mm-0.50mmStainless steel wire 0.20mm-0.50mm
Shaft SizeFlange Diameter:83mmFlange Diameter:83mm
Spindle Body Diameter:31mmSpindle Body Diameter:31mm
Inner Cavity Diameter:19.5mmInner Cavity Diameter:19.5mm
Surface move width:200mmSurface move width:200mm
Total length:208mmTotal length:208mm
Spindle Speed16rpm10rpm
Stretching Force3.5——13kg3.5——13kg
Steel Wire Number in a Strand4——12pcs4——12pcs
Hose Diameter10——30mm16——45mm
Step of Weaving22——69mm34——110mm
Weaving Angle54°44′54°44′
Motor Power4KW5KW*2
Traction Speed21——66m/h27——75m/h
DimensionAbout 2700*1200*1600mmAbout 5200*1600*1850mm
WeightAbout 3.1TAbout 5T


DETAIL IMAGES

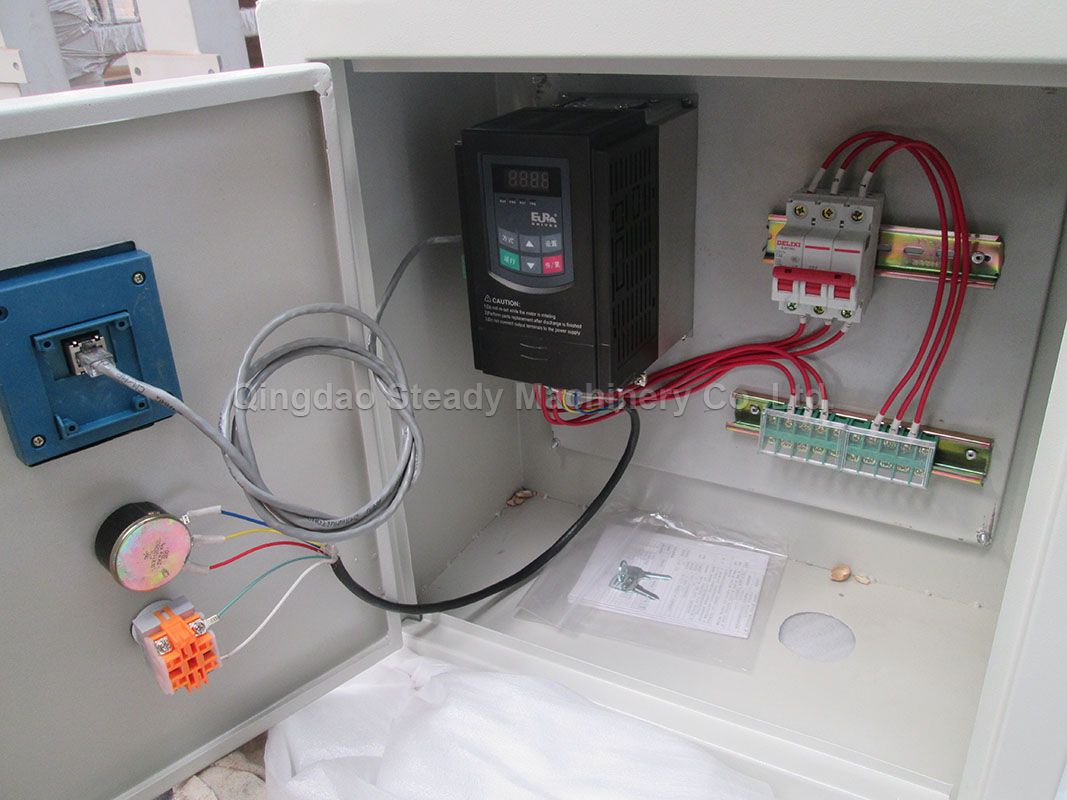

Control Box

Qingdao Steady Machinery's hose braiding machine adopts famous brand electronics, works accurate and stable.

 Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

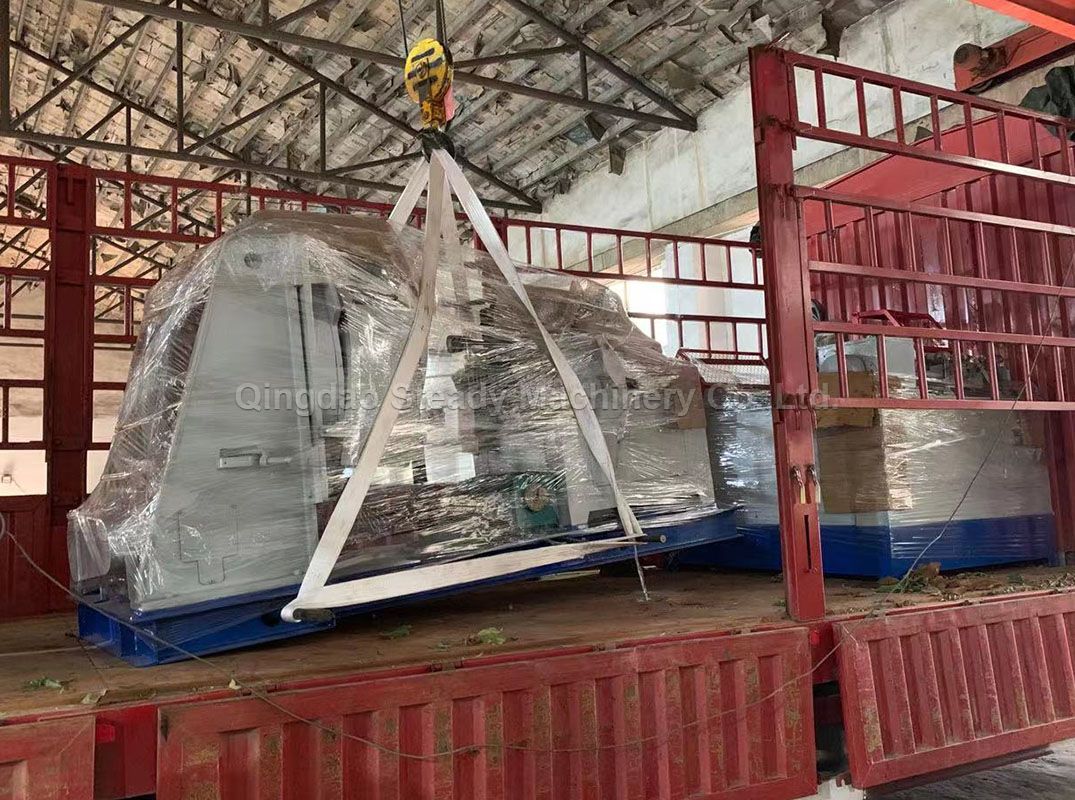

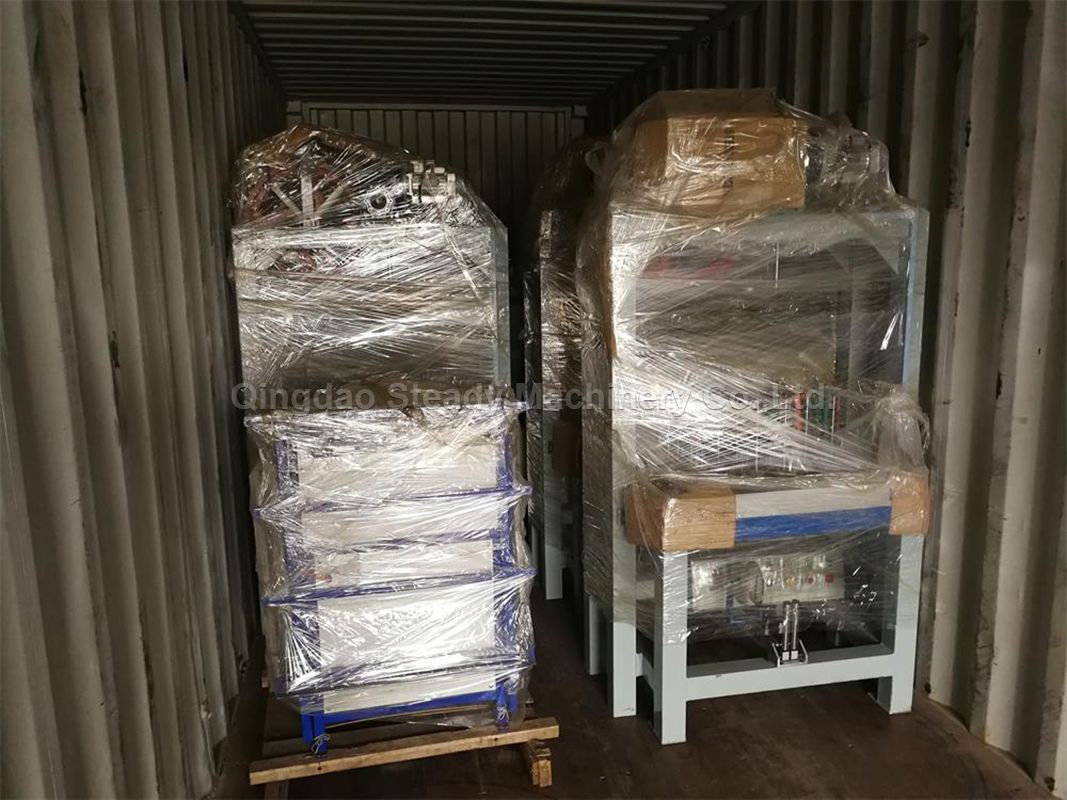

Loading Into Container Export

 Rubber Plastic Hose Pipe Tube Fabric Yarn Steel Wire Wrapping Braiding Weaving Knitting Machine

High Pressure Rubber Hose Steel Wire Braiding Weaving Machine

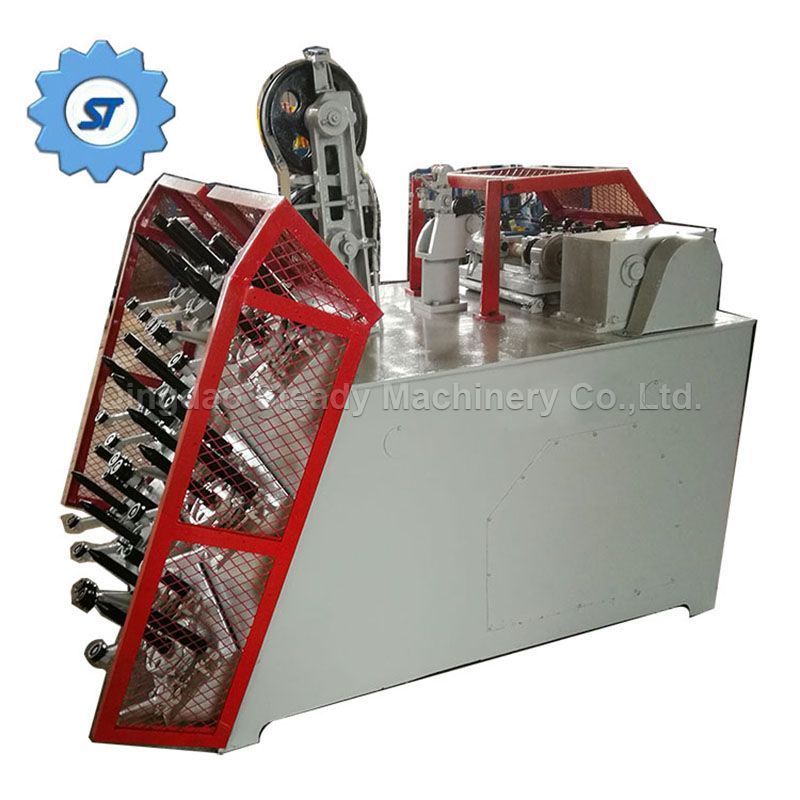

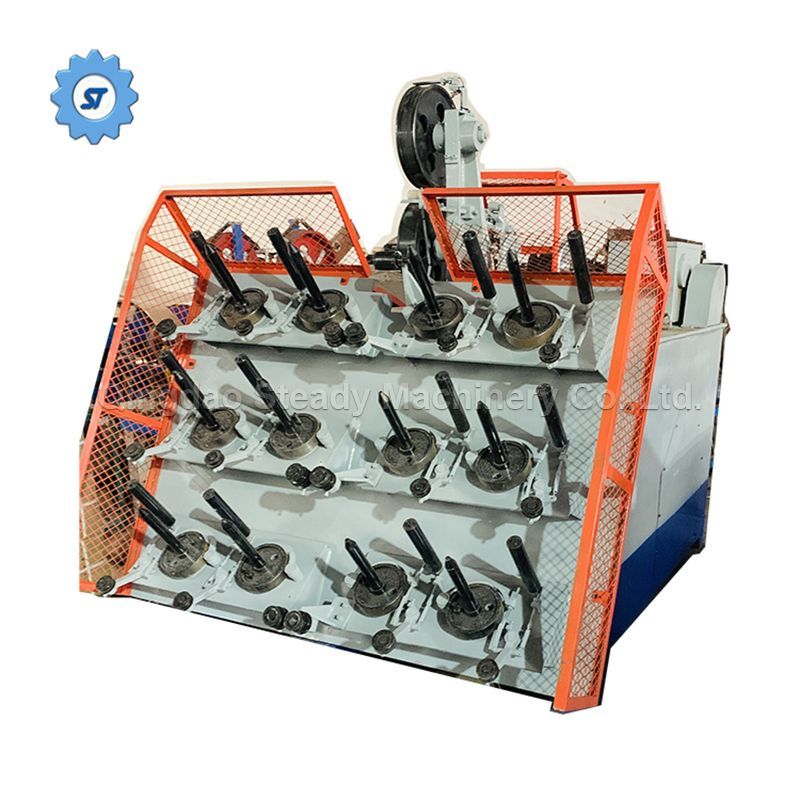

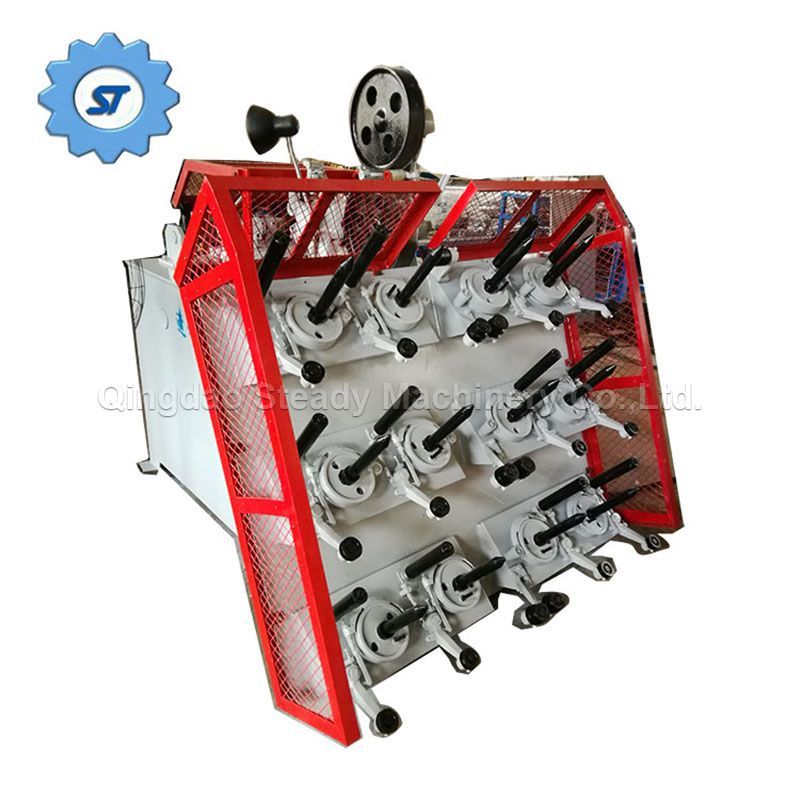

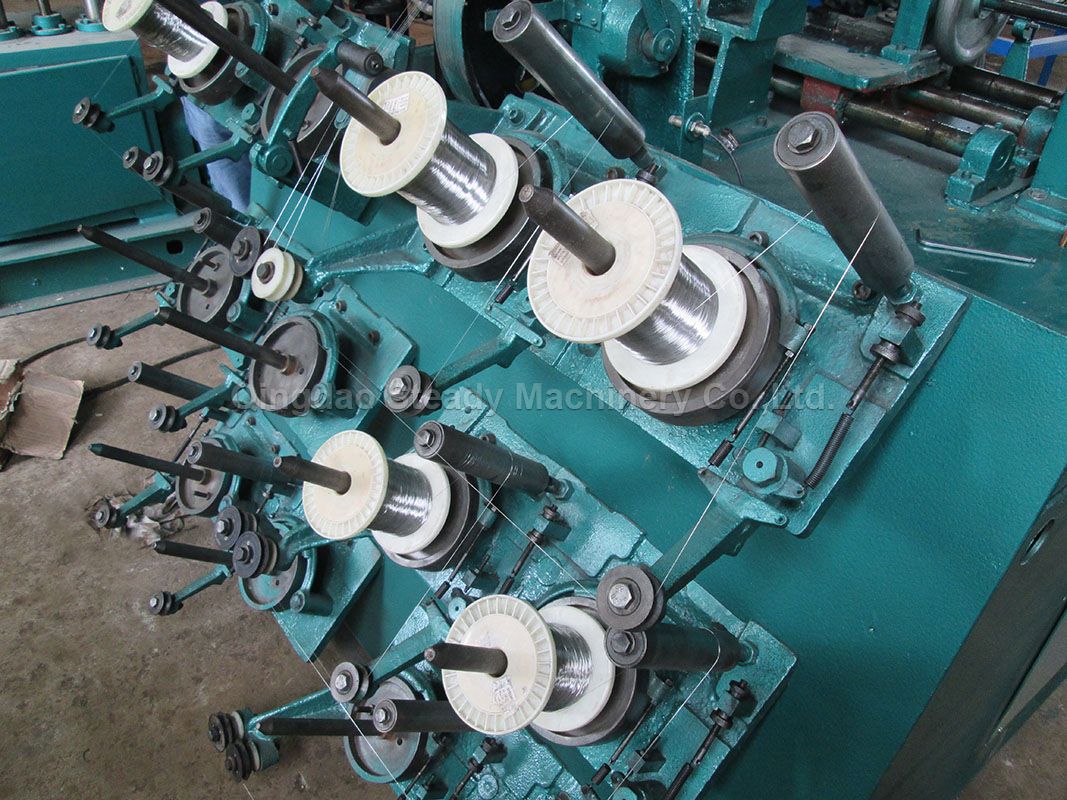

Steel Wire Stranding Machine: This machine is used to combine 2-12pcs 0.2mm -0.5mm steel wire into a strand, and wrap the combined steel wire bundle on the spindle disc for using in weaving machines.

High Pressure Rubber Hose Steel Wire Braiding Weaving Machine

High Pressure Rubber Hose Steel Wire Braiding Weaving Machine

High Pressure Rubber Hose Steel Wire Braiding Weaving Machine

High Pressure Rubber Hose Steel Wire Braiding Weaving Machine


Steel Wire Stranding Machine
Steel wire Max. Number in a Strand12pcs
Wire Diameter0.2-0.5mm
Spindle Shaft Max. Rotation Speed1100rpm
Max. Spindle Disc Diameter180mm
Spindle Discs Spacing200mm
Adjustable Range of Pitch0.1-0.2mm
Stranding Efficiency160-260m/min
Counting UnitM
Auto StopFixed length, wire broken auto stop
Motor ModelYCT180-4A
Motor Rotation Speed125-1250rpm
Motor Power4KW
Dimension1708*1544*1582mm
WeightAbout 2000kg

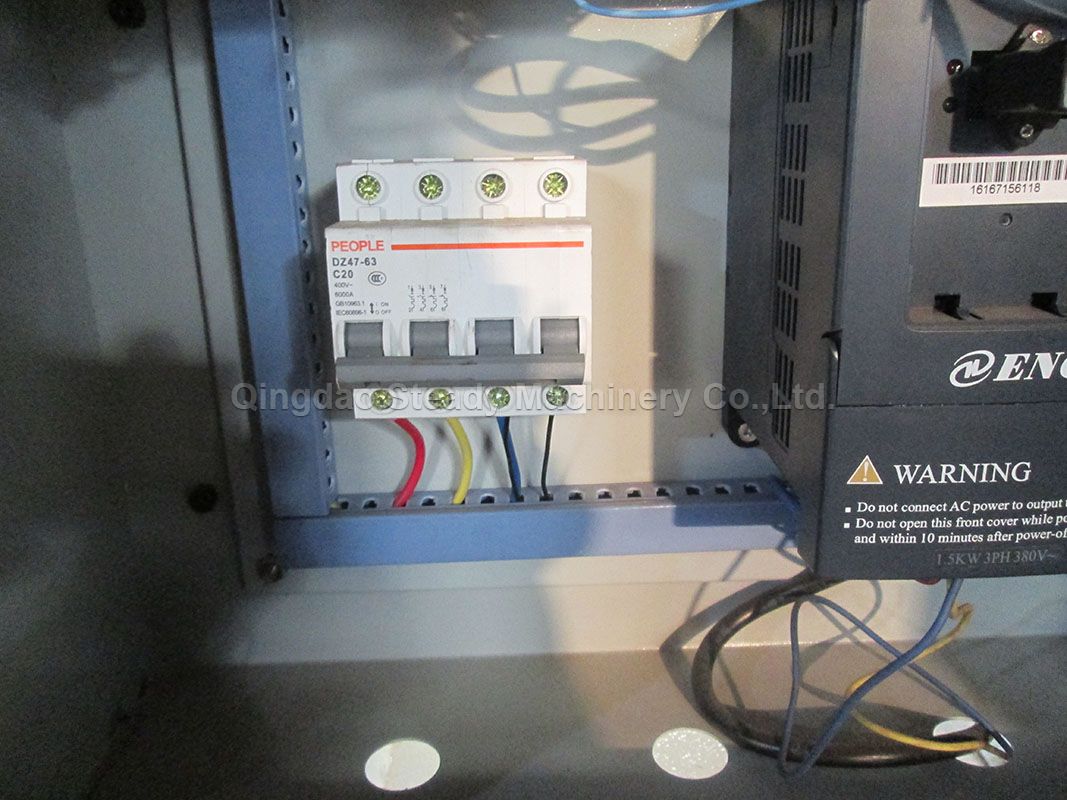

Control Box

Qingdao Steady Machinery Co.,Ltd's steel wire stranding machine adopts China top brand electronics, works accurate and stable.

Long service life and trouble free.
